Rear Side Door Window Switch Replacement

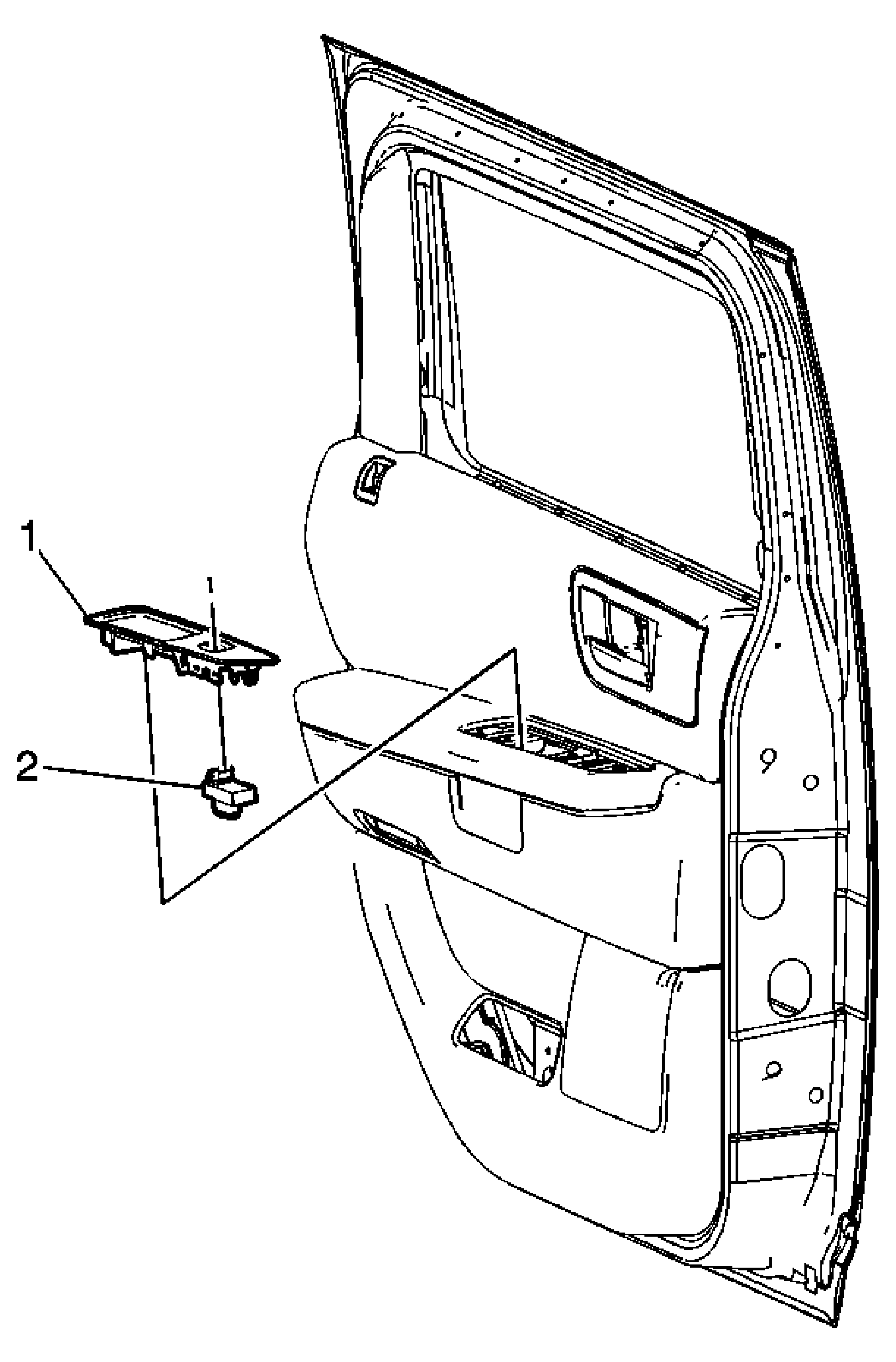

Fig 1: Identifying Rear Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Door Switch Bezel Procedure Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel. Disconnect the electrical connector. If replacing the switch bezel transfer the switch to the new bezel.
2	Rear Door Switch Tip: Use a small flat bladed tool to aid in the removal of the switch from the switch bezel.

Callout

Component Name

Rear Door Switch Bezel

Procedure

Use a nylon trim tool to aid in prying the switch bezel upward from the door trim panel.
Disconnect the electrical connector.
If replacing the switch bezel transfer the switch to the new bezel.

Rear Door Switch
Tip: Use a small flat bladed tool to aid in the removal of the switch from the switch bezel.
