Engine Protection Shield Replacement

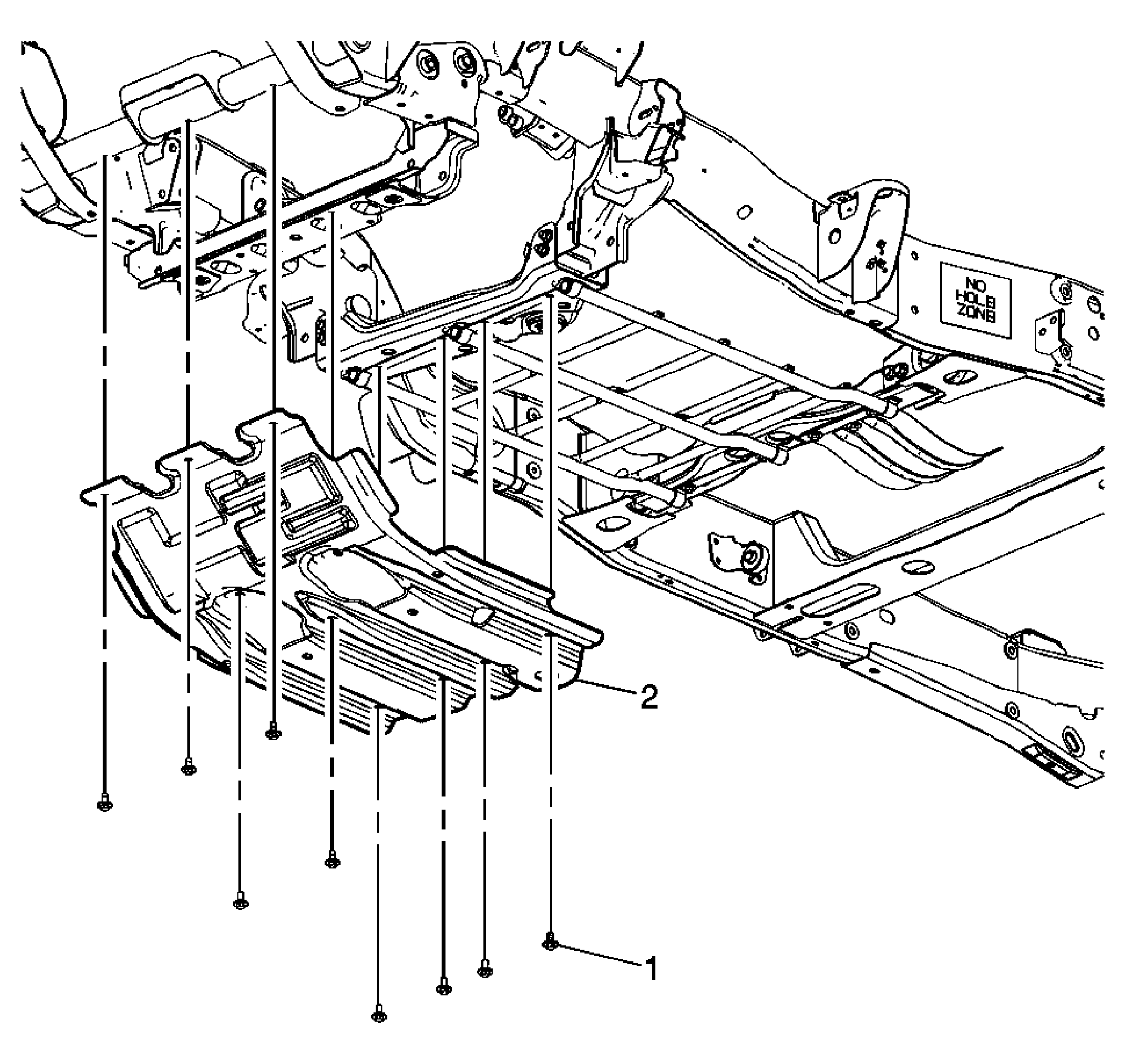

Fig 1: Identifying Engine Protection Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Protection Shield Bolt (Qty: 9) CAUTION: Refer to Fastener Caution . Tighten:  30 N.m (22 lb ft)
2	Engine Protection Shield
