Battery Replacement

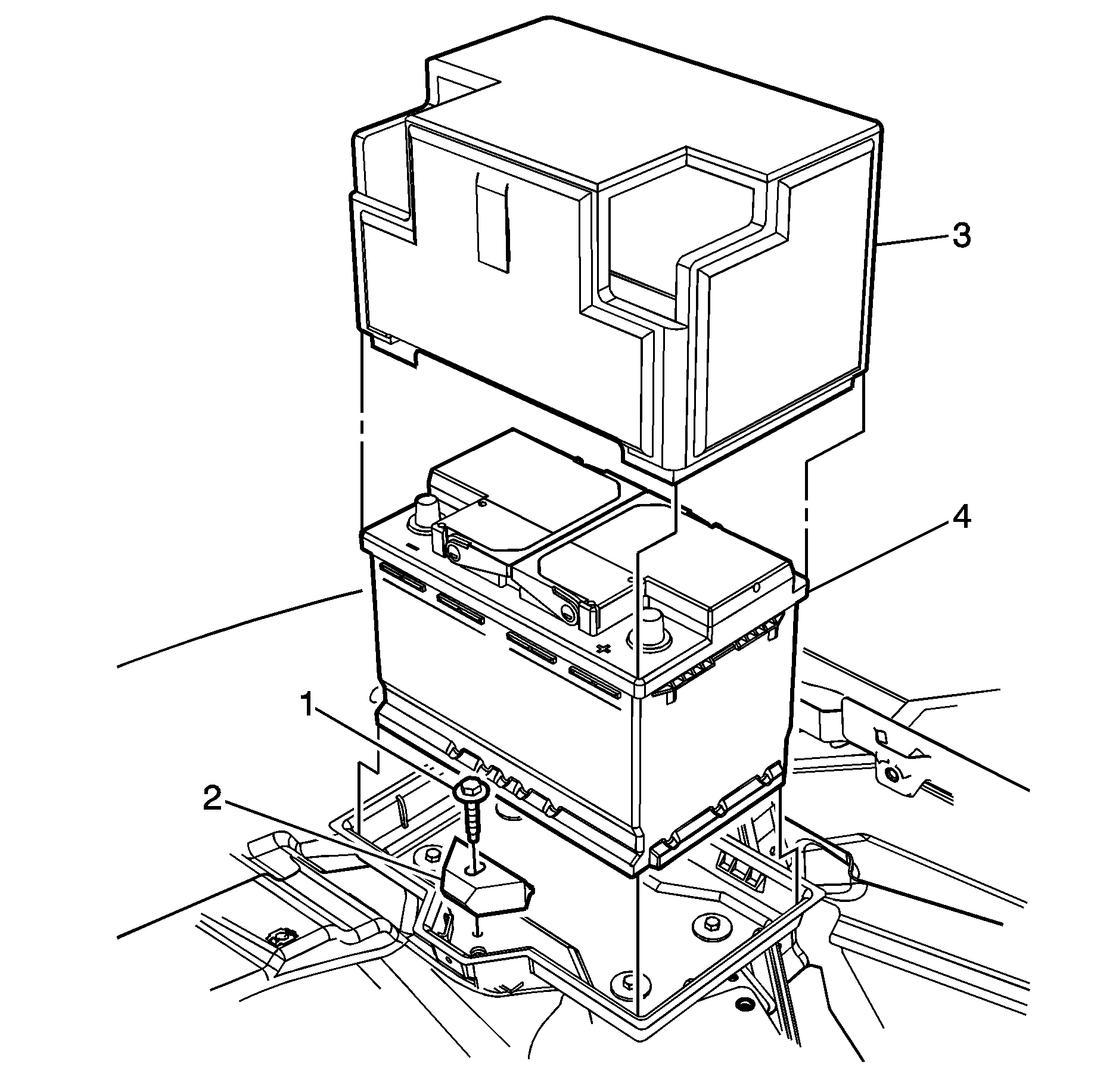

Fig 1: Identifying Battery Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the positive battery terminal. Refer to Battery Positive Cable Replacement
1	Bolt, Battery Retention CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Retainer, Battery Hold Down
3	Insulator, Battery Tip: Only remove the battery insulator when replacing the battery.
4	Battery
