Instrument Panel Inflatable Restraint Module Switch Replacement

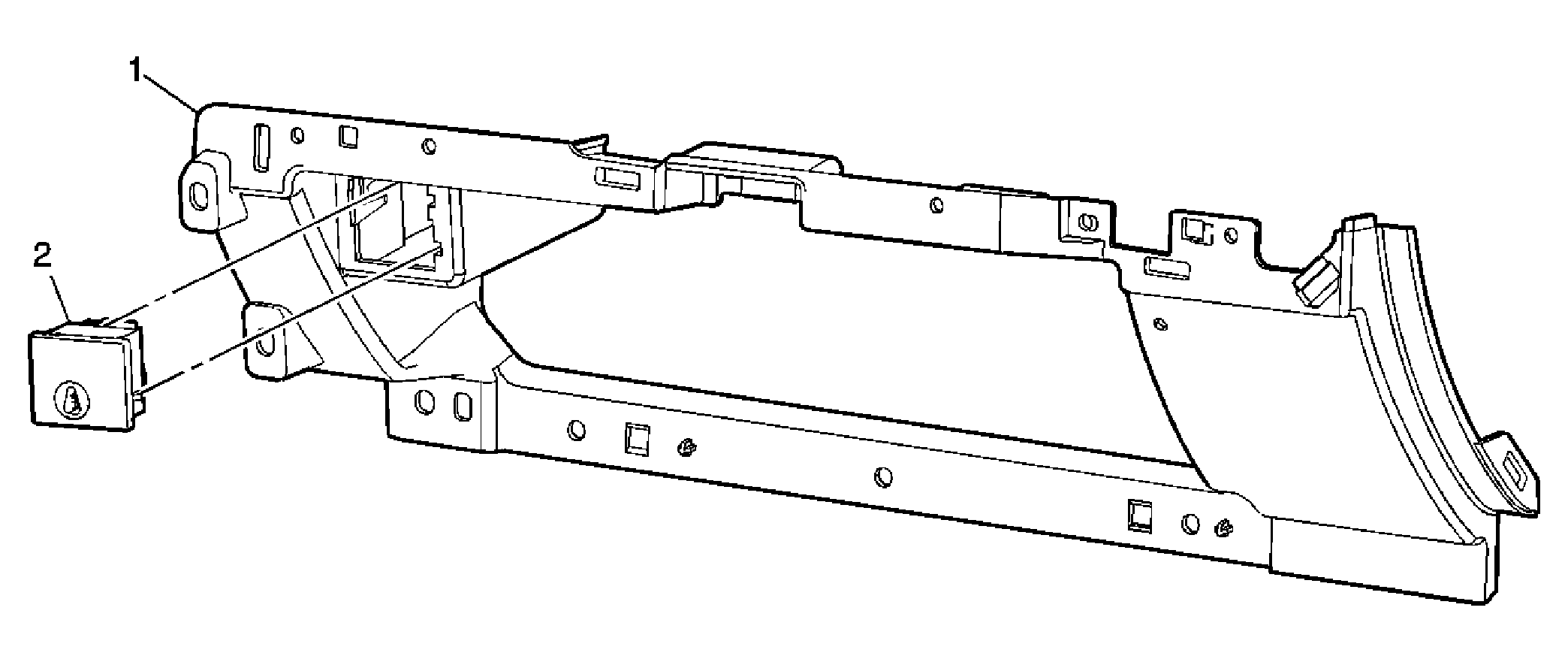

Fig 1: Identifying Instrument Panel Inflatable Restraint Module Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Door Opening Frame Refer to Instrument Panel Compartment Door Opening Frame Replacement
2	Inflatable Restraint Instrument Panel Module Switch Assembly Procedure:  Release the tabs on the back side of the switch and remove the switch from the compartment door frame.
