Removal Procedure

  1. Remove the knee bolster. Refer to Driver Knee Bolster Replacement .

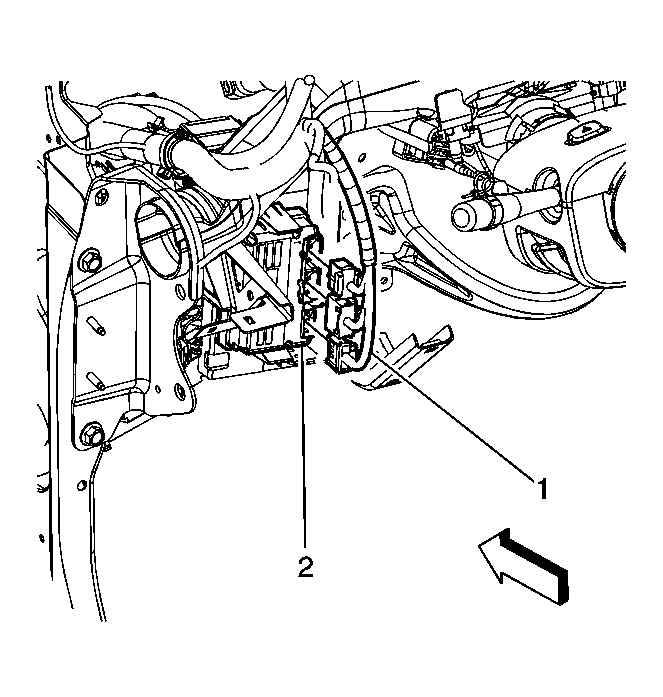

    2. Fig 1: Identifying Electrical Connectors & Transfer Case Control Module
    GM1971092Courtesy of GENERAL MOTORS CORP.
  2. Remove the electrical connectors (1) from the transfer case control module (2).

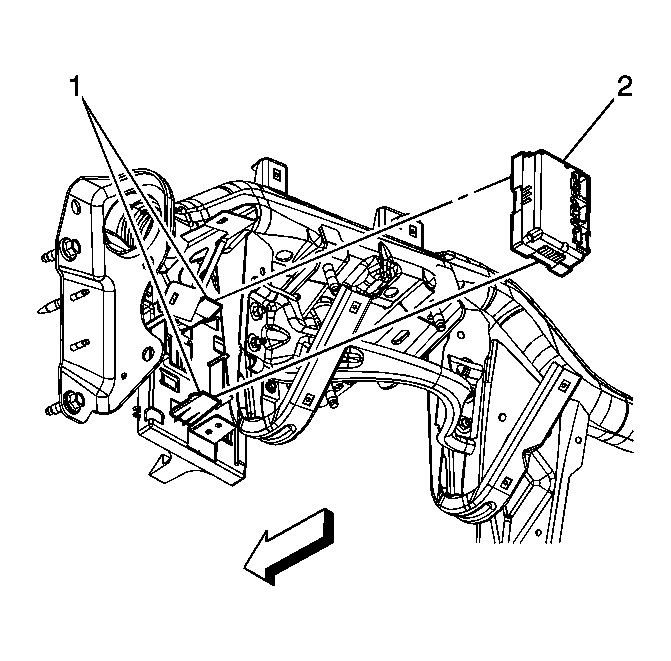

    3. Fig 2: Identifying Transfer Case Control Module & Bracket
    GM1971095Courtesy of GENERAL MOTORS CORP.
  3. Release the transfer case control module from the bracket (1).
  4. Remove the transfer case control module (2).
