Removal Procedure

    Fig 1: Engine Wiring Harness Electrical Connector And Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
    GM1969052Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF)/Intake Air Temperature (IAT) sensor (2).

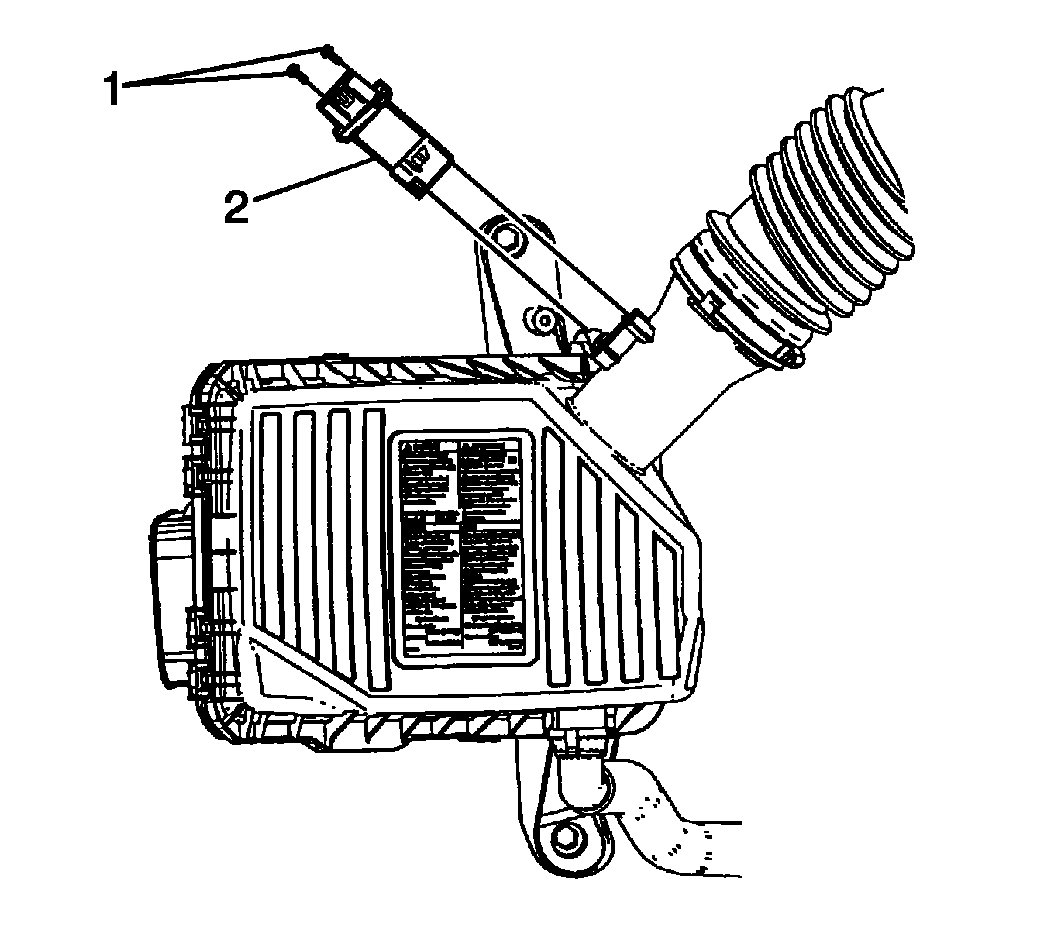

    2. Fig 2: MAF/IAT Sensor And Screws
    GM1969053Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor screws (1).
  3. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
