Radio Antenna Module Replacement

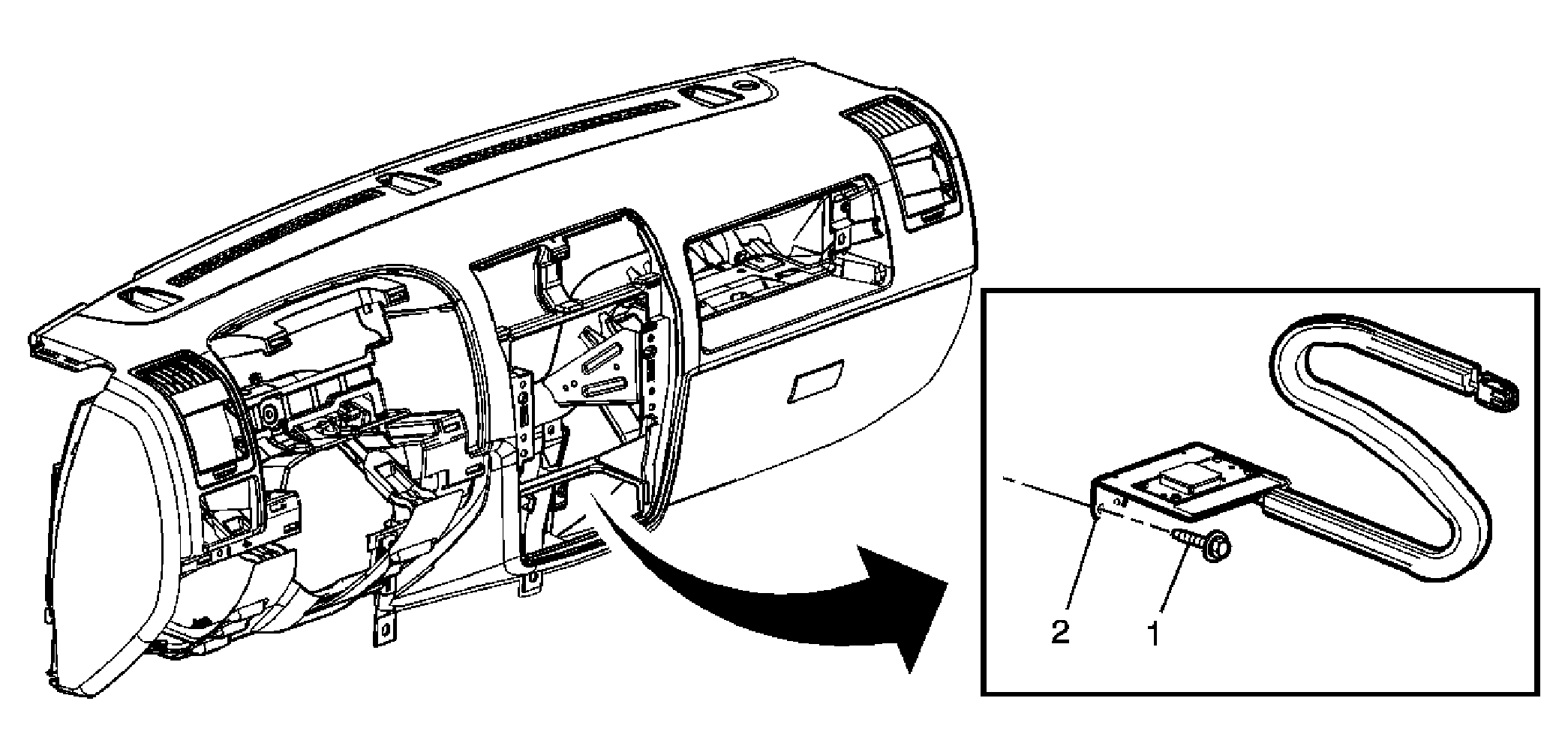

Fig 1: Radio Antenna Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the radio. Refer to Radio Replacement .
1	Radio Antenna Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  3 N.m (27 lb in)
2	Radio Antenna Module
