Power Steering Pump Pulley Replacement (LH8)

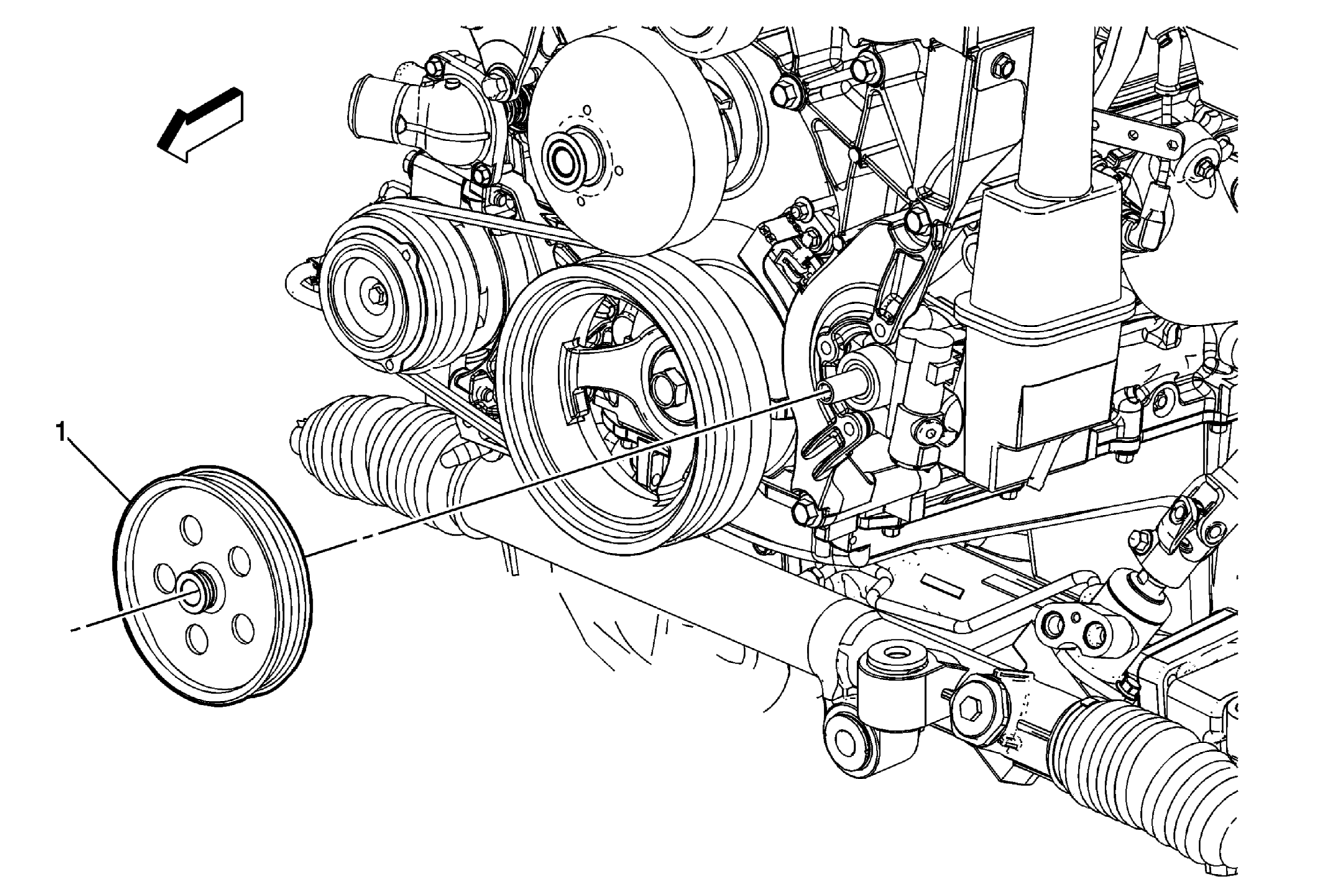

Fig 1: Power Steering Pump Pulley Replacement (LH8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the generator bracket. Refer to Generator Bracket Replacement (LLR) .
1	Power Steering Pump Pulley Procedure Use remover J 25034-C to remove the power steering pump pulley. See Special Tools . Use installer J 25033-C to install the power steering pump pulley. See Special Tools . Ensure the power steering pulley is 0.35 mm (0.014 in) forward on the power steering pump shaft. Special Tools J 25033-C Pulley Installer. See Special Tools . J 25034-C Pulley Remover. See Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the generator bracket. Refer to Generator Bracket Replacement (LLR) .

Power Steering Pump Pulley

Procedure

Use remover J 25034-C to remove the power steering pump pulley. See Special Tools .
Use installer J 25033-C to install the power steering pump pulley. See Special Tools .
Ensure the power steering pulley is 0.35 mm (0.014 in) forward on the power steering pump shaft.

Special Tools
