Front View Camera Switch Replacement (H3T)

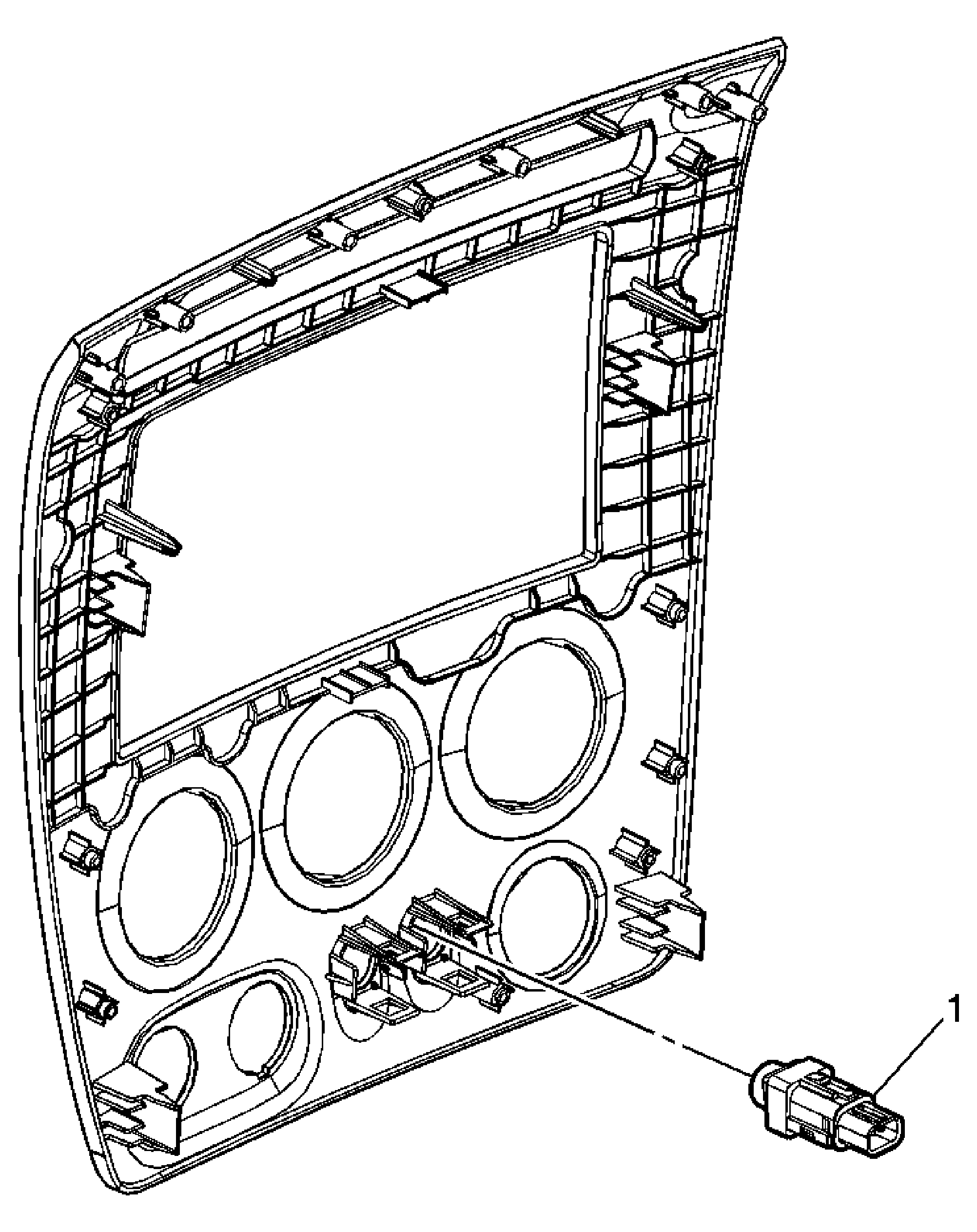

Fig 1: Front View Camera Switch Replacement (H3T)
GM2178115Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the center instrument panel (I/P) trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Right Hand Drive) or Instrument Panel Center Trim Panel Replacement (Left Hand Drive) .
1 Front View Camera Switch

Procedure

  1. Disconnect electrical connector.
  2. Depress tabs and unsnap switch from Bezel.
