Rearview Camera Replacement

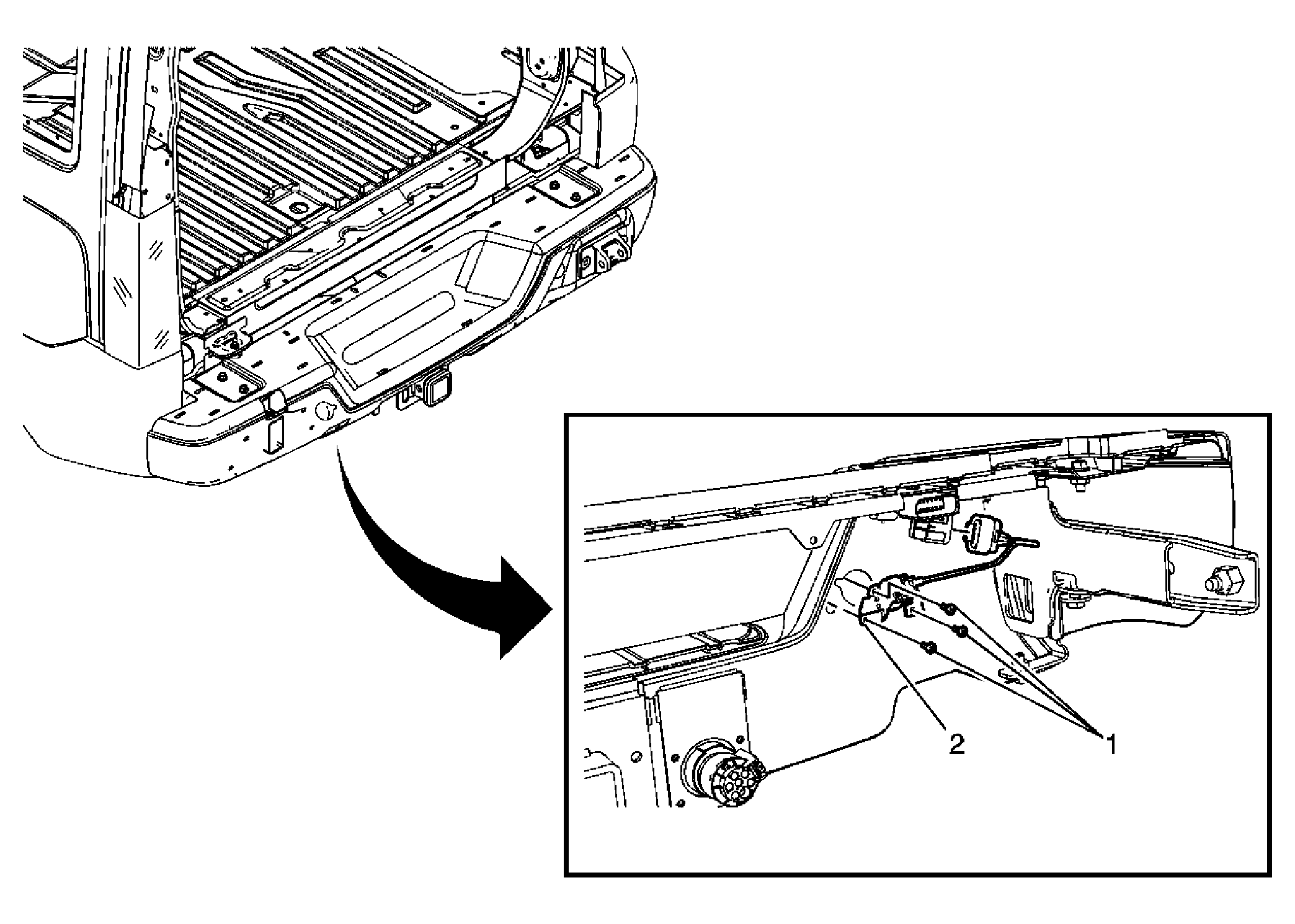

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper. Refer to Rear Bumper Impact Bar Replacement . |
|
| 1 | Rearview Camera Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Rearview Camera Procedure: Disconnect the electrical connectors. |
