Object Detection Schematics

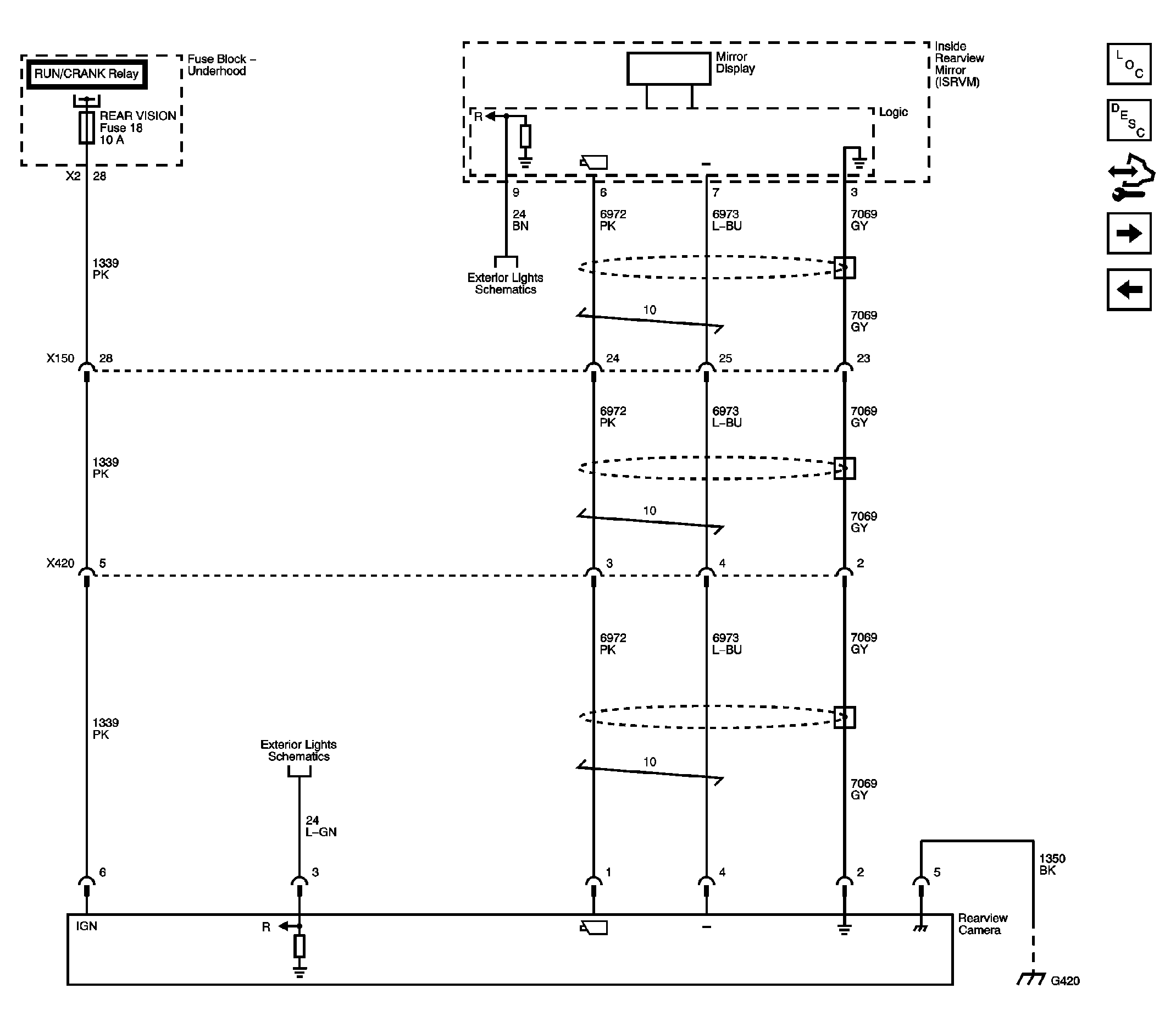

Fig 1: Rearview Camera (SUV with UVC) Schematics

Courtesy of GENERAL MOTORS CORP.

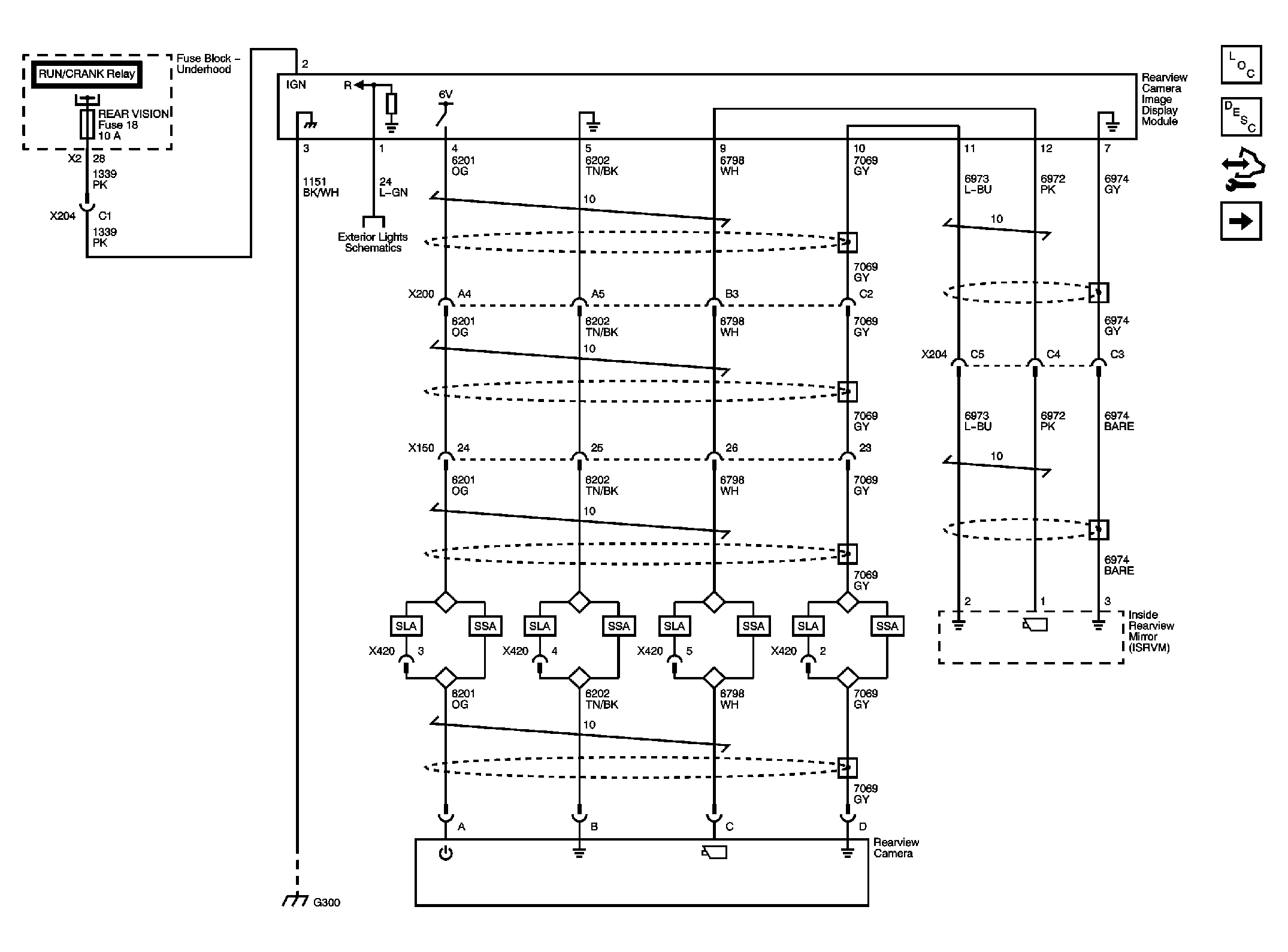

Fig 2: Rearview Camera (Truck with UVC) Schematics

Courtesy of GENERAL MOTORS CORP.

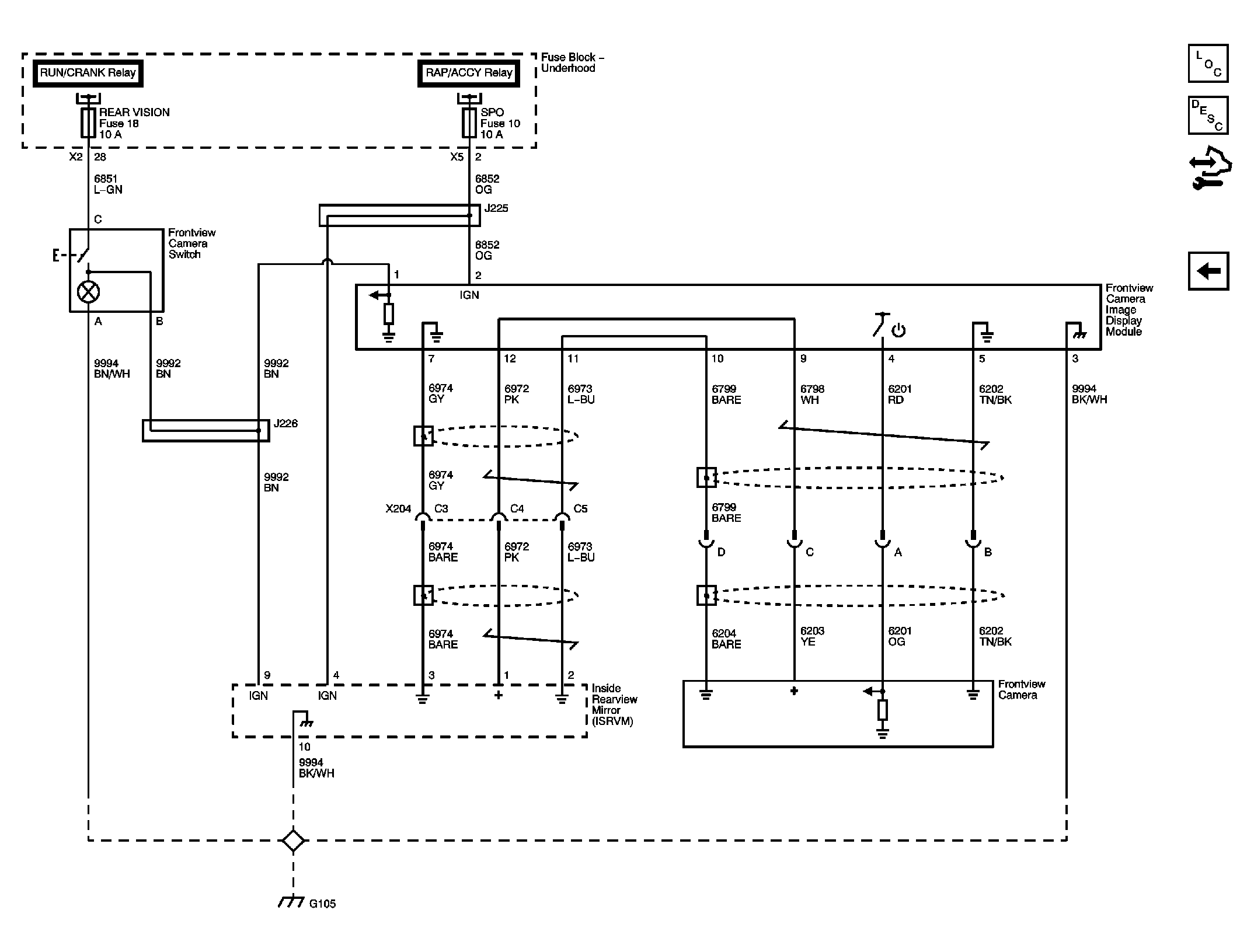

Fig 3: Frontview Camera (SUV with UVF) Schematics

Courtesy of GENERAL MOTORS CORP.
