Data Communication Schematics

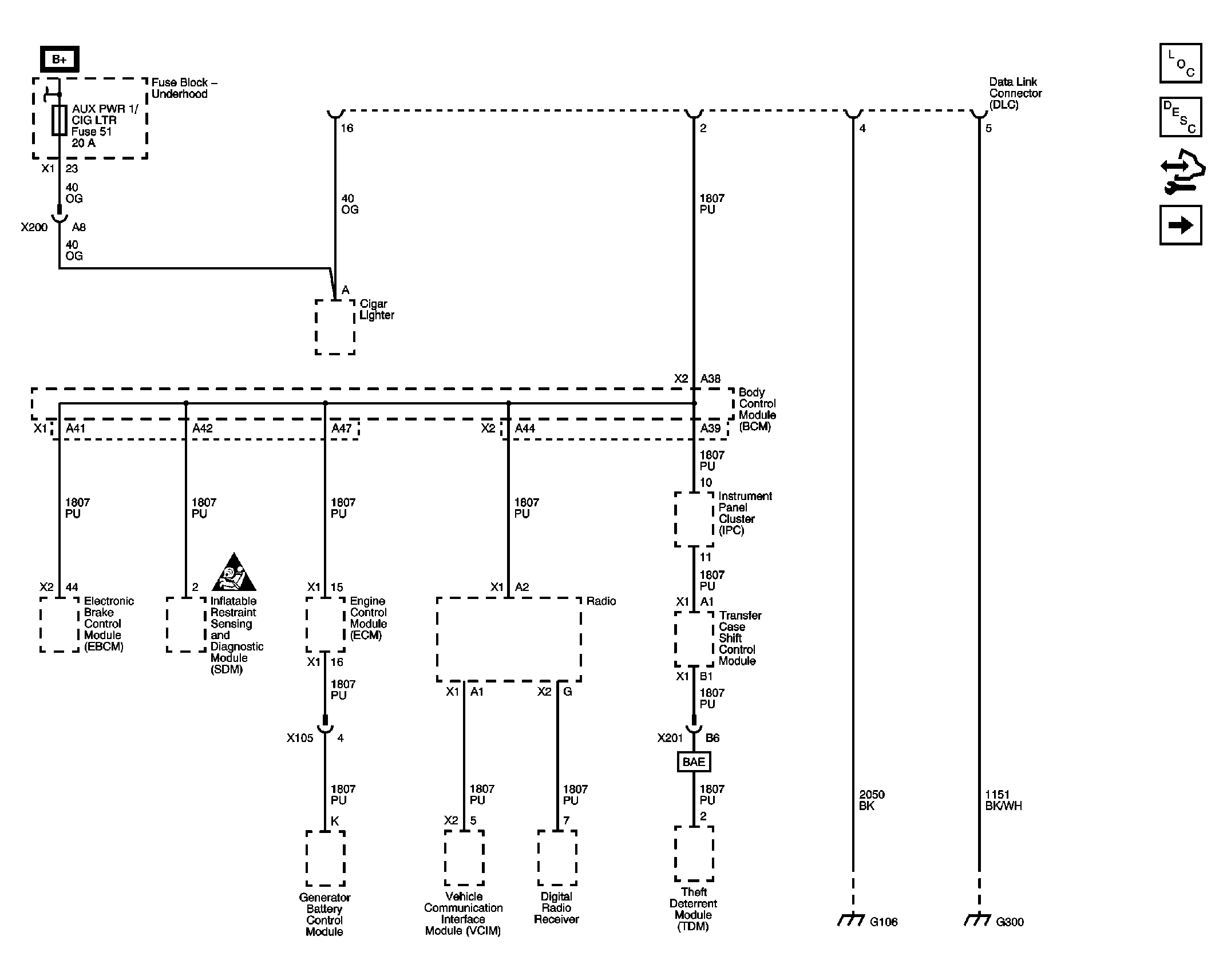

Fig 1: Low Speed Data Communication Schematic
GM2080392Courtesy of GENERAL MOTORS CORP.

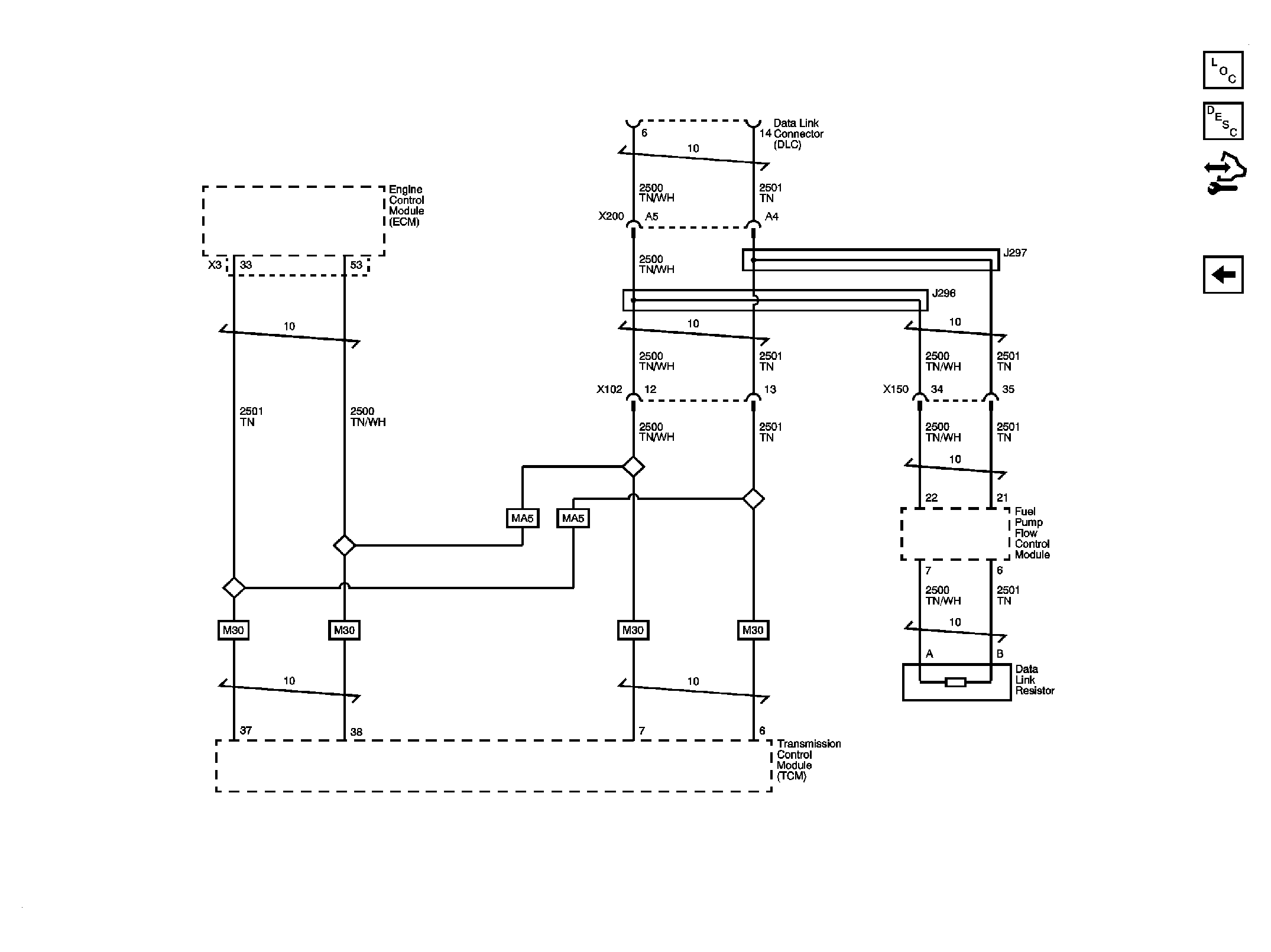

Fig 2: High Speed GMLAN Schematic
GM2182758Courtesy of GENERAL MOTORS CORP.
