Assist Step Replacement (Side Step)

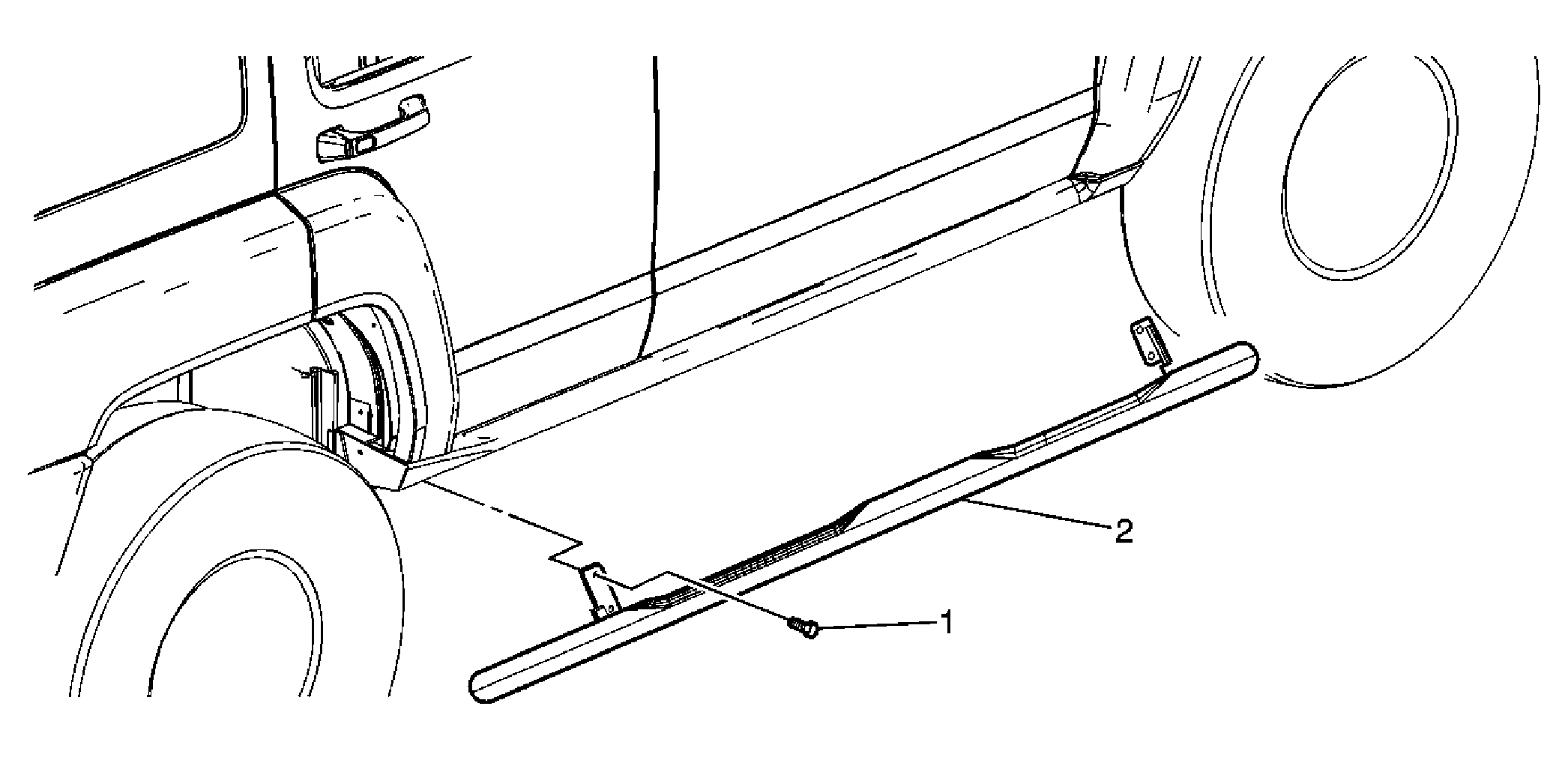

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Side Step Bolts (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 50 N.m (37 lb in) |
| 2 | Side Step |
