Crossmember Replacement

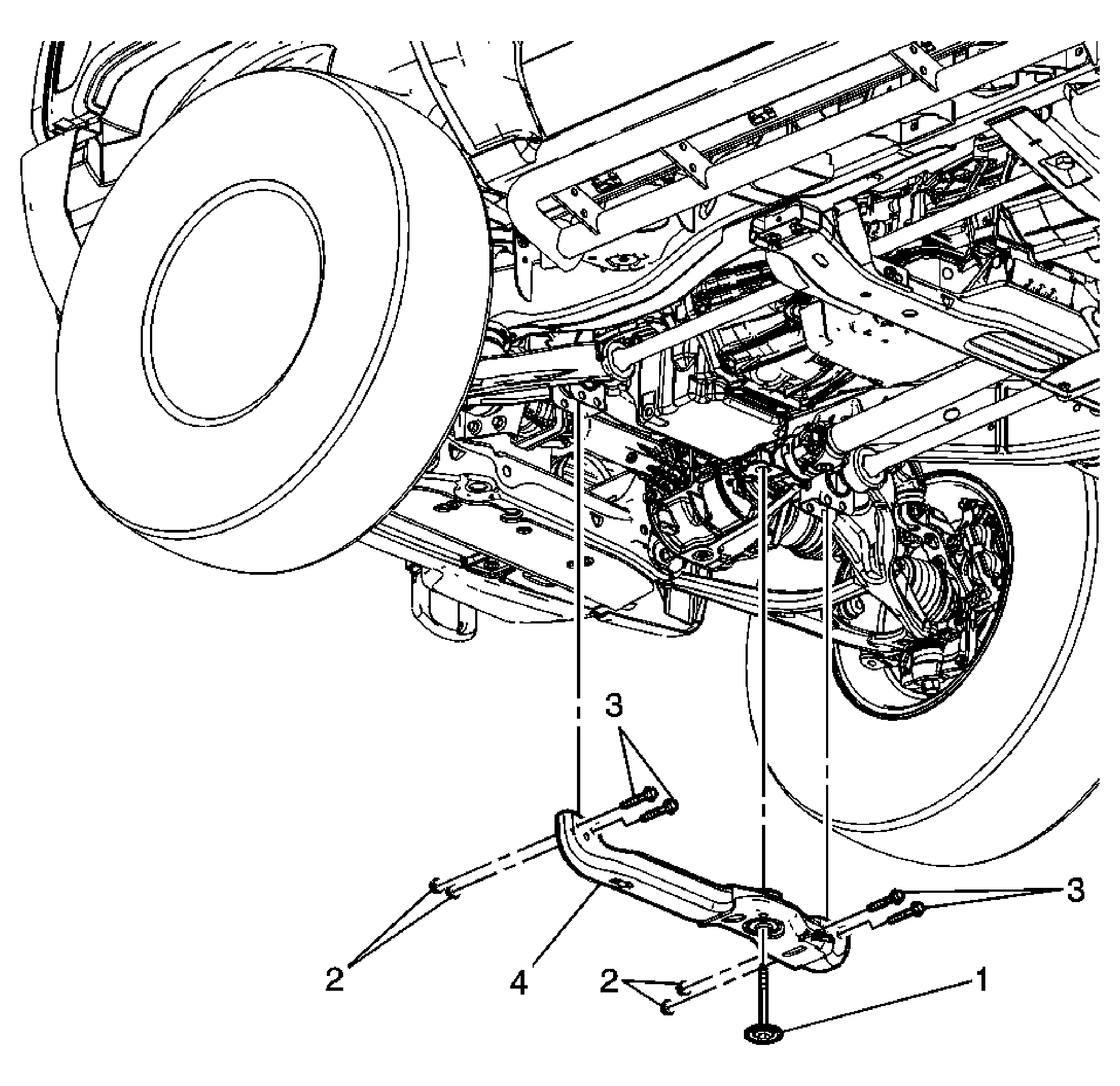

Fig 1: Crossmember Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the engine shield. Refer to Engine Shield Replacement . Remove the oil pan skid plate. Refer to Oil Pan Skid Plate Replacement . Support the front differential assembly.
1	Front Drive Axle Mounting Bolt CAUTION: Refer to Fastener Caution . Tighten: 110 N.m (81 lb ft)
2	Crossmember Nut (Qty: 4) Tighten: 70 N.m (52 lb ft) plus 200 degrees
3	Crossmember Bolt (Qty: 4)
4	Crossmember
