Removal Procedure

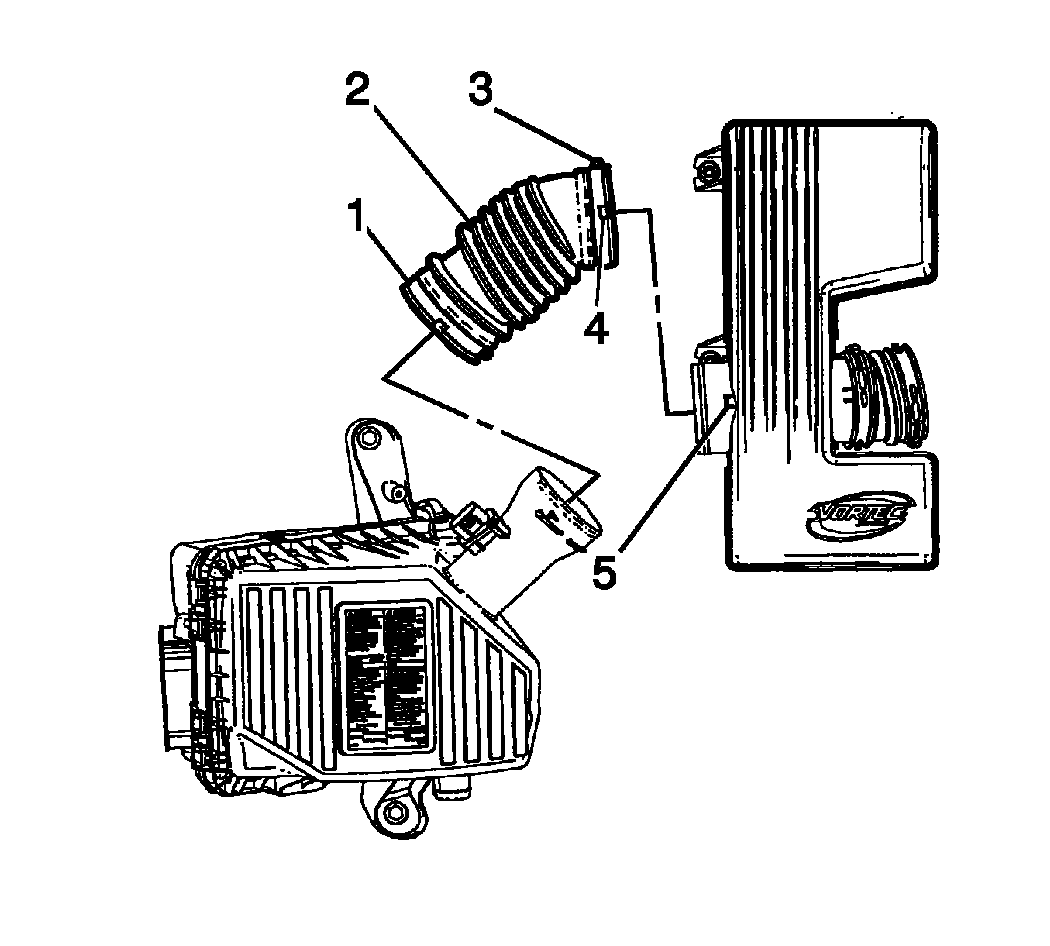

    Fig 1: Air Cleaner Outlet Duct Components
    GM1969213Courtesy of GENERAL MOTORS CORP.
  1. Loosen the air cleaner outlet duct clamp (1) at the air cleaner.
  2. Loosen the air cleaner outlet duct clamp (3) at the resonator.
  3. Remove the air cleaner outlet duct (2).
