SIR Identification Views

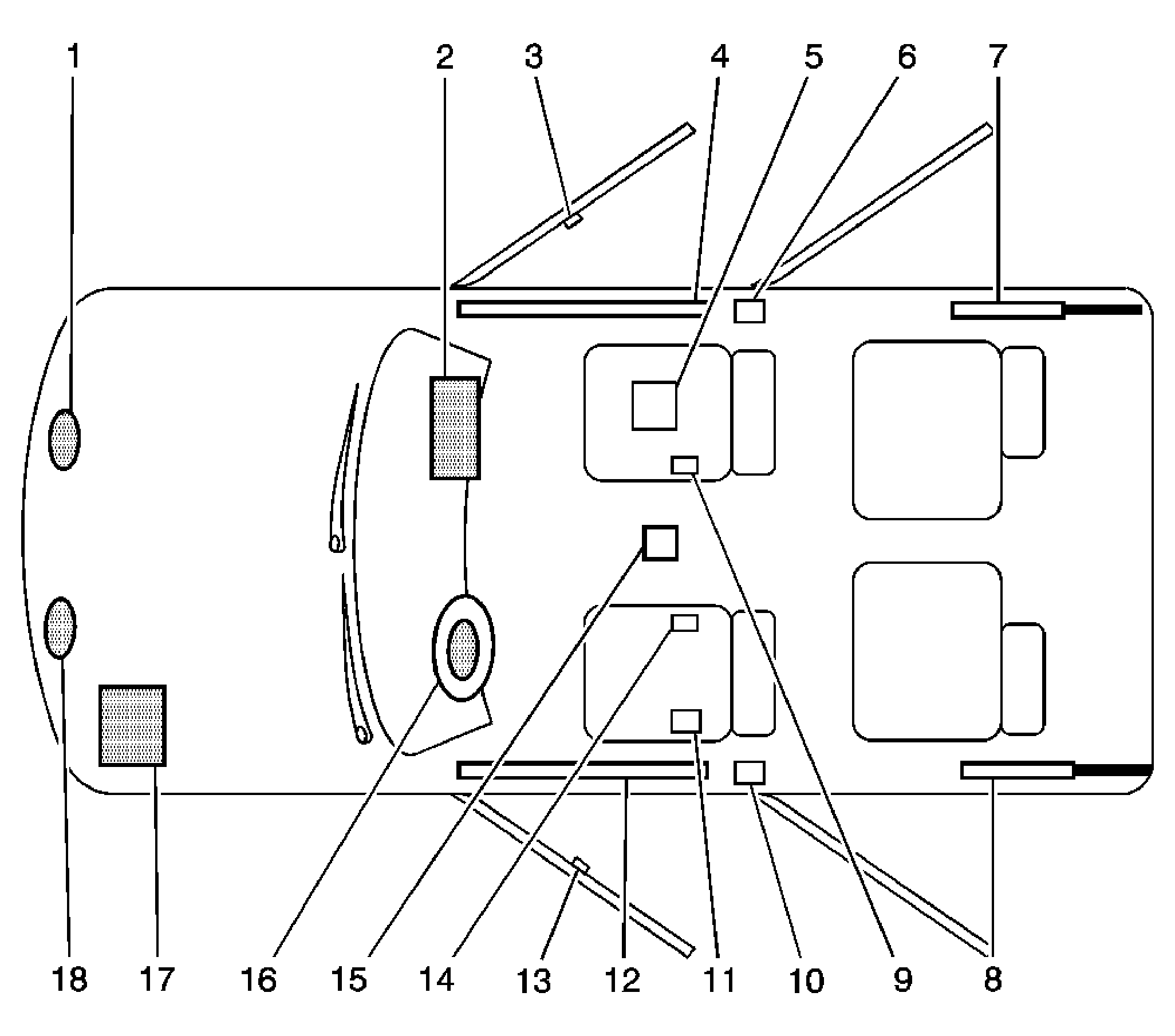

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. Refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor - Right-Located on the front of the vehicle in the engine compartment |
| 2 | Inflatable Restraint I/P Module-Located at the top right under the instrument panel |
| 3 | Inflatable Restraint Side Impact Sensor (SIS) - Right-Located under right front door trim near the lower rear of door frame |
| 4 | Inflatable Restraint Roof Rail Module - Right-Located in the headliner along roof rail |
| 5 | Passenger Presence System-Located under passenger seat |
| 6 | Seat Belt Retractor Pretensioner - Right-Located on the floor next to the right front seat |
| 7 | Rear Liftgate Start-A Gas Shock-Located at rear of vehicle |
| 8 | Rear Liftgate Start-A Gas Shock-Located at rear of vehicle |
| 9 | Inflatable Restraint Seat Position Switch - Right-Located on the side of the right front seat |
| 10 | Seat Belt Retractor Pretensioner - Left-Located on the floor next to the left front seat |
| 11 | Inflatable Restraint Vehicle Rollover Sensor-Located under driver seat |
| 12 | Inflatable Restraint Side Roof Rail Module - Left-Located in the headliner along the roof rail |
| 13 | Inflatable Restraint Side Impact Sensor (SIS) - Left-Located under left front door trim near the lower rear of door frame |
| 14 | Inflatable Restraint Seat Position Switch - Left-Located on the side of the left front seat |
| 15 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located under center floor console |
| 16 | Inflatable Restraint Steering Wheel Module-Located on the steering wheel |
| 17 | Battery and Underhood Fuse Block - SIR Fuse-Located in engine compartment on left side |
| 18 | Inflatable Restraint Front End Sensor - Left-Located on the front of the vehicle in the engine compartment |
