Automatic Transmission Controls Schematics

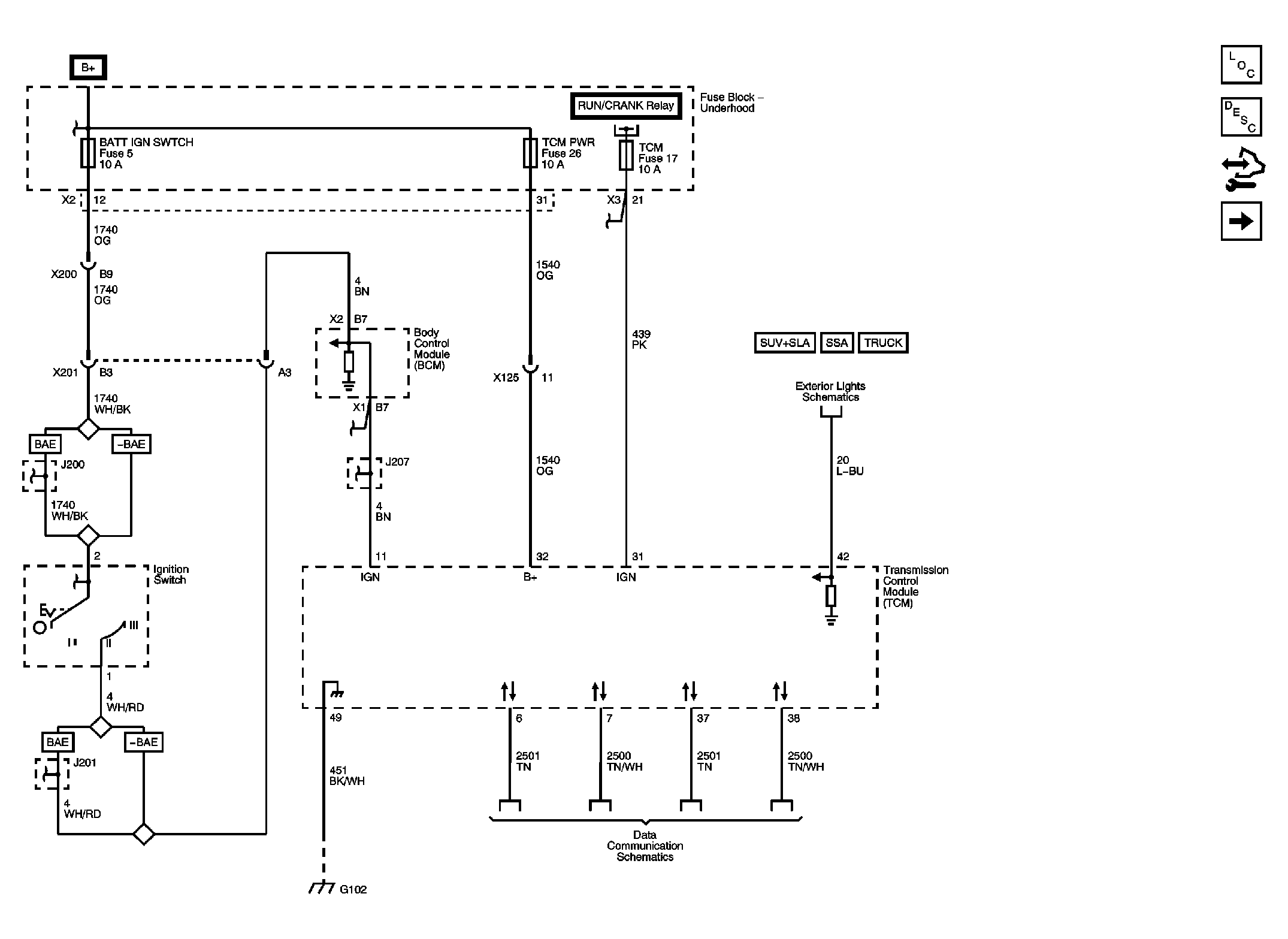

Fig 1: Module Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

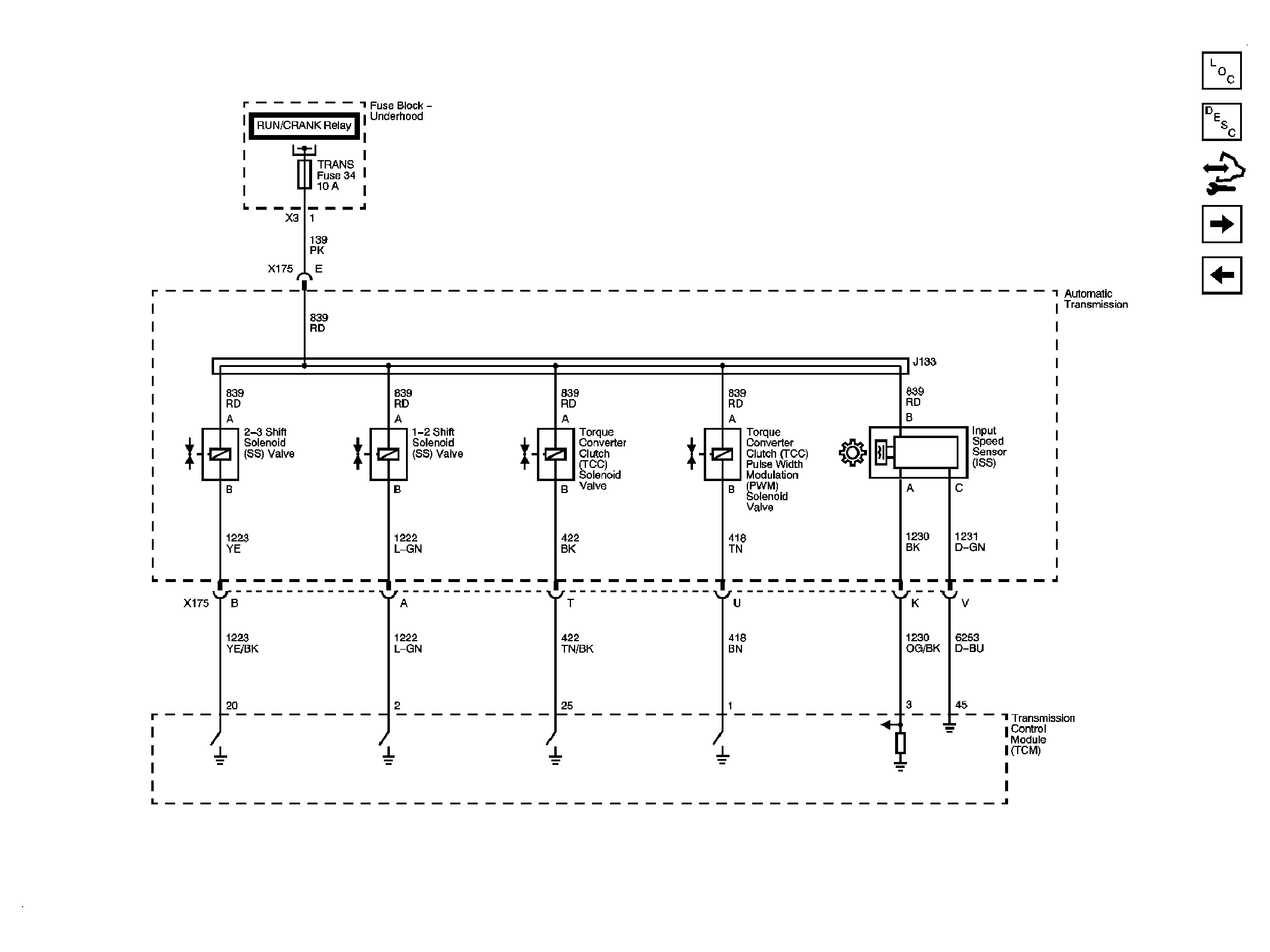

Fig 2: Shift Controls Schematic

Courtesy of GENERAL MOTORS CORP.

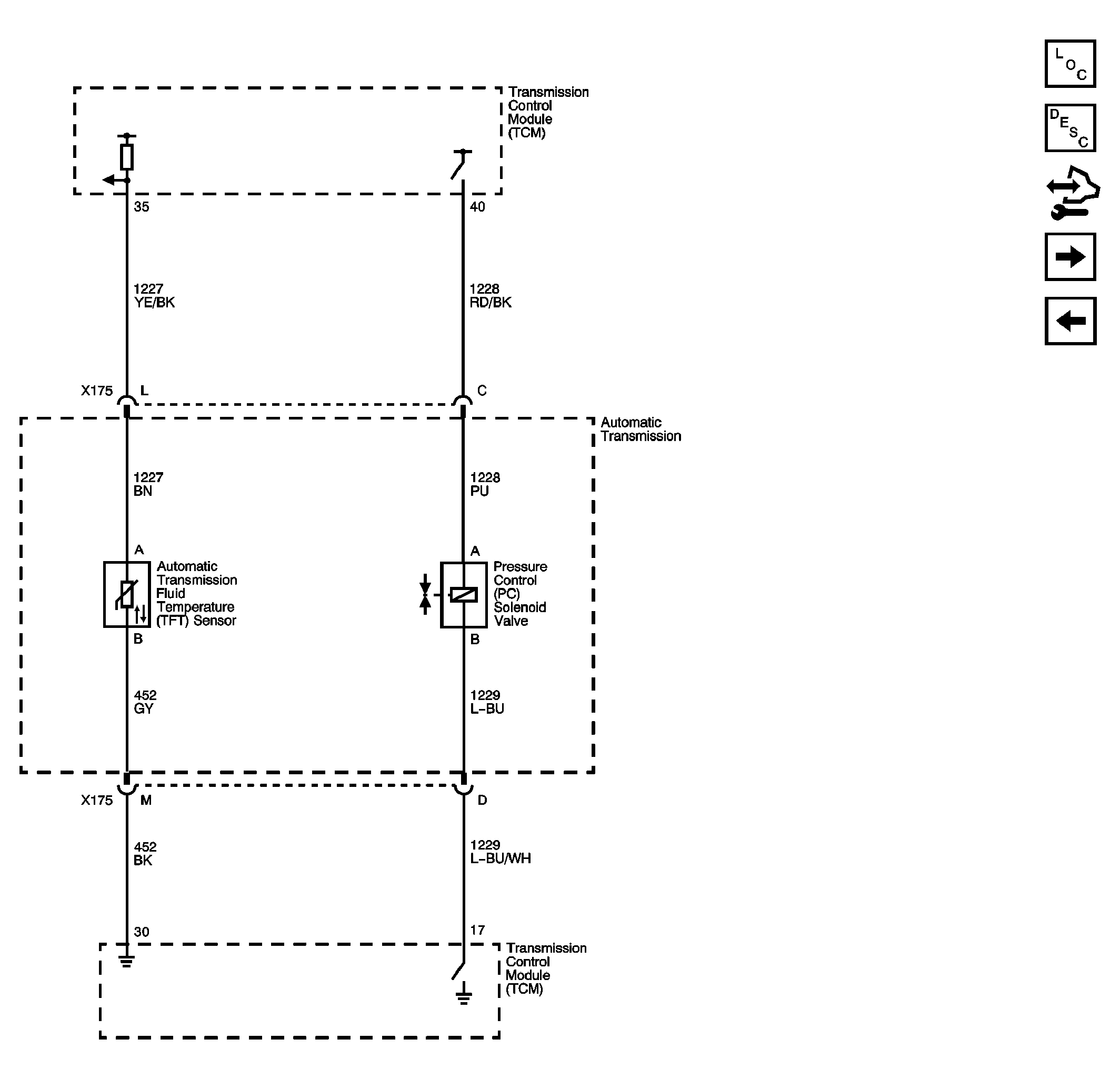

Fig 3: Pressure and Temperature Controls Schematic

Courtesy of GENERAL MOTORS CORP.

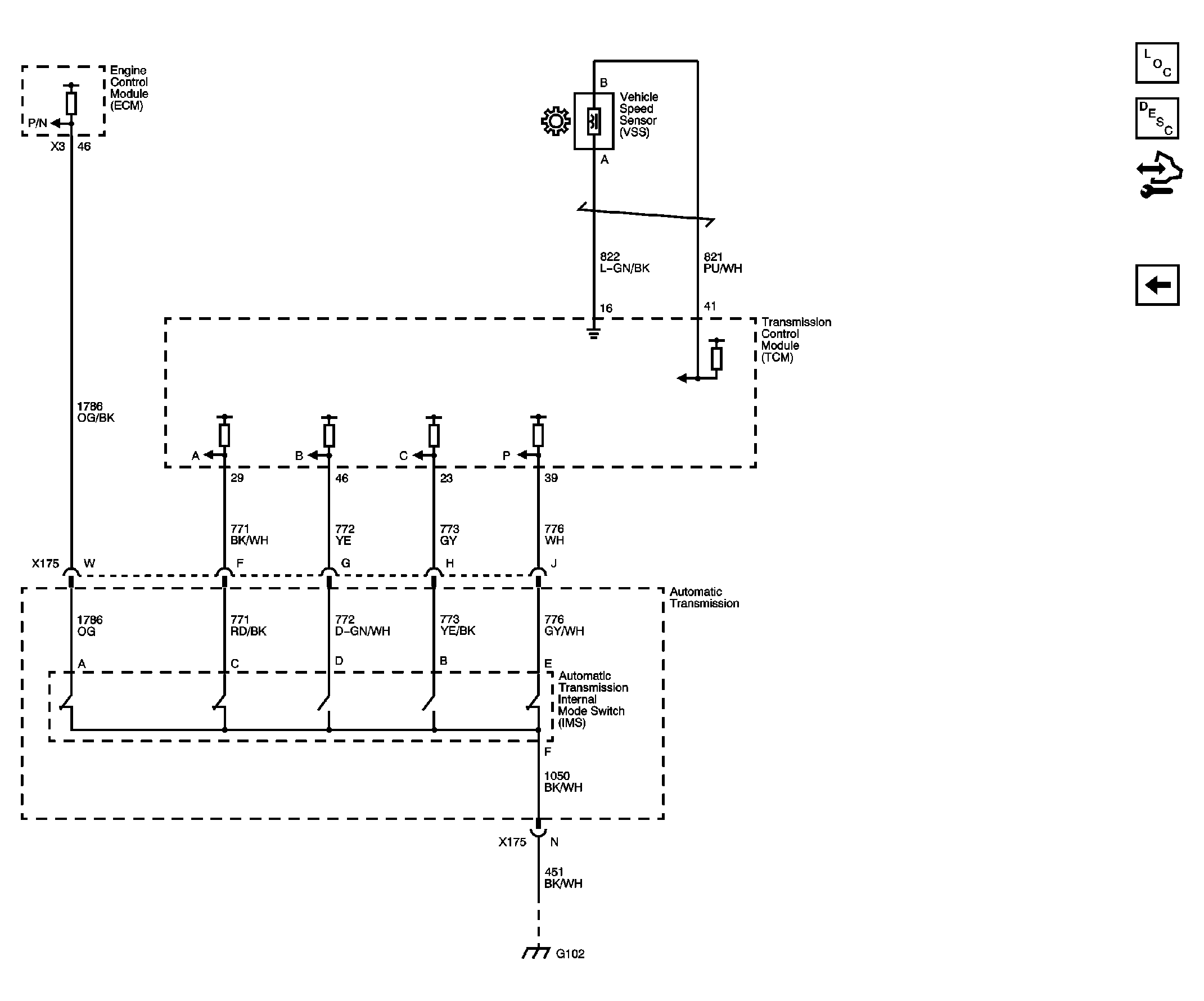

Fig 4: Internal Mode Switch and Vehicle Speed Sensor Schematic

Courtesy of GENERAL MOTORS CORP.
