Transfer Case Shield Replacement

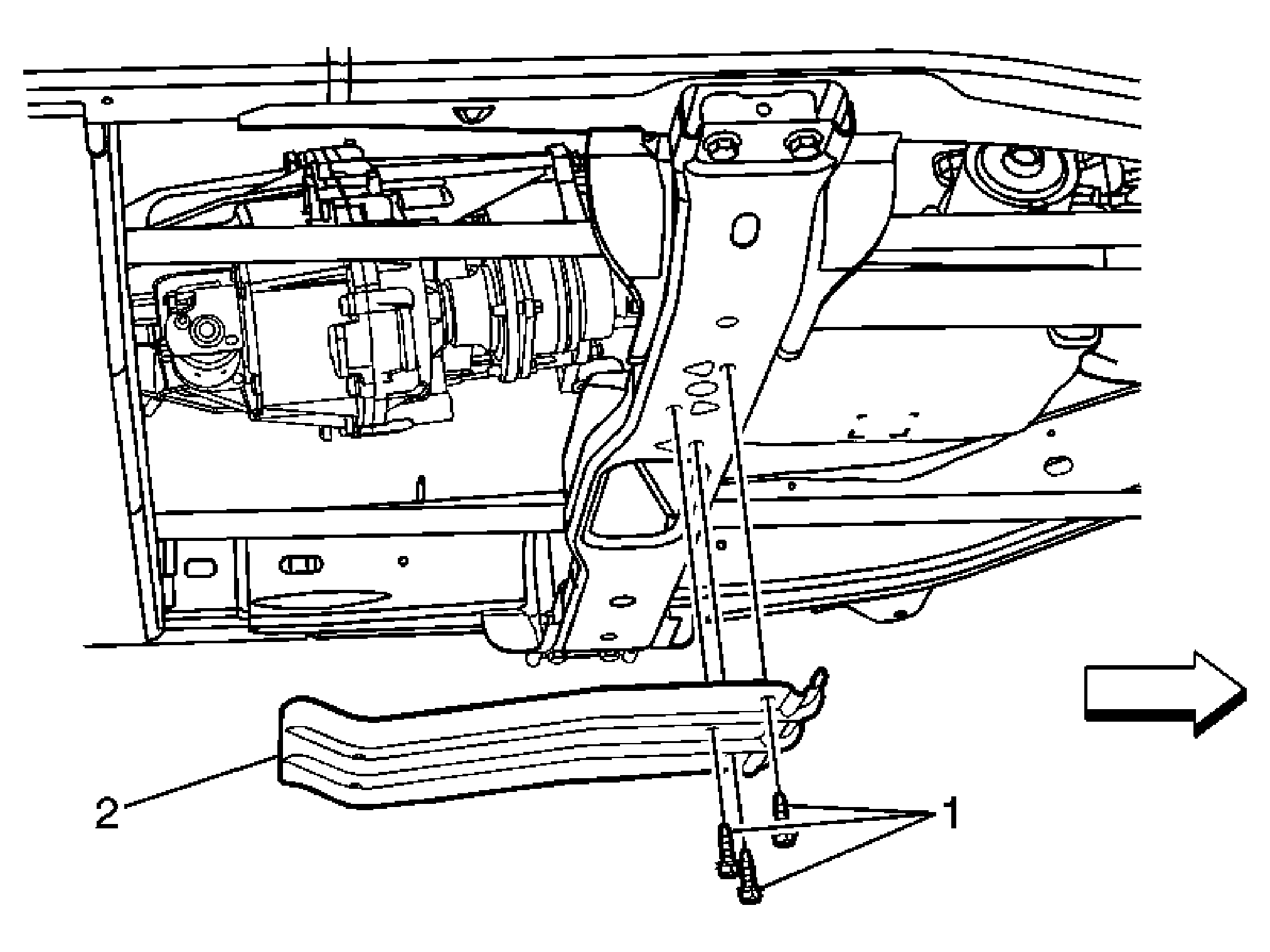

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Bolt, Transfer Case Shield (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 30 N.m (23 lb ft) |
| 2 | Shield, Transfer Case |
