Immobilizer Schematics

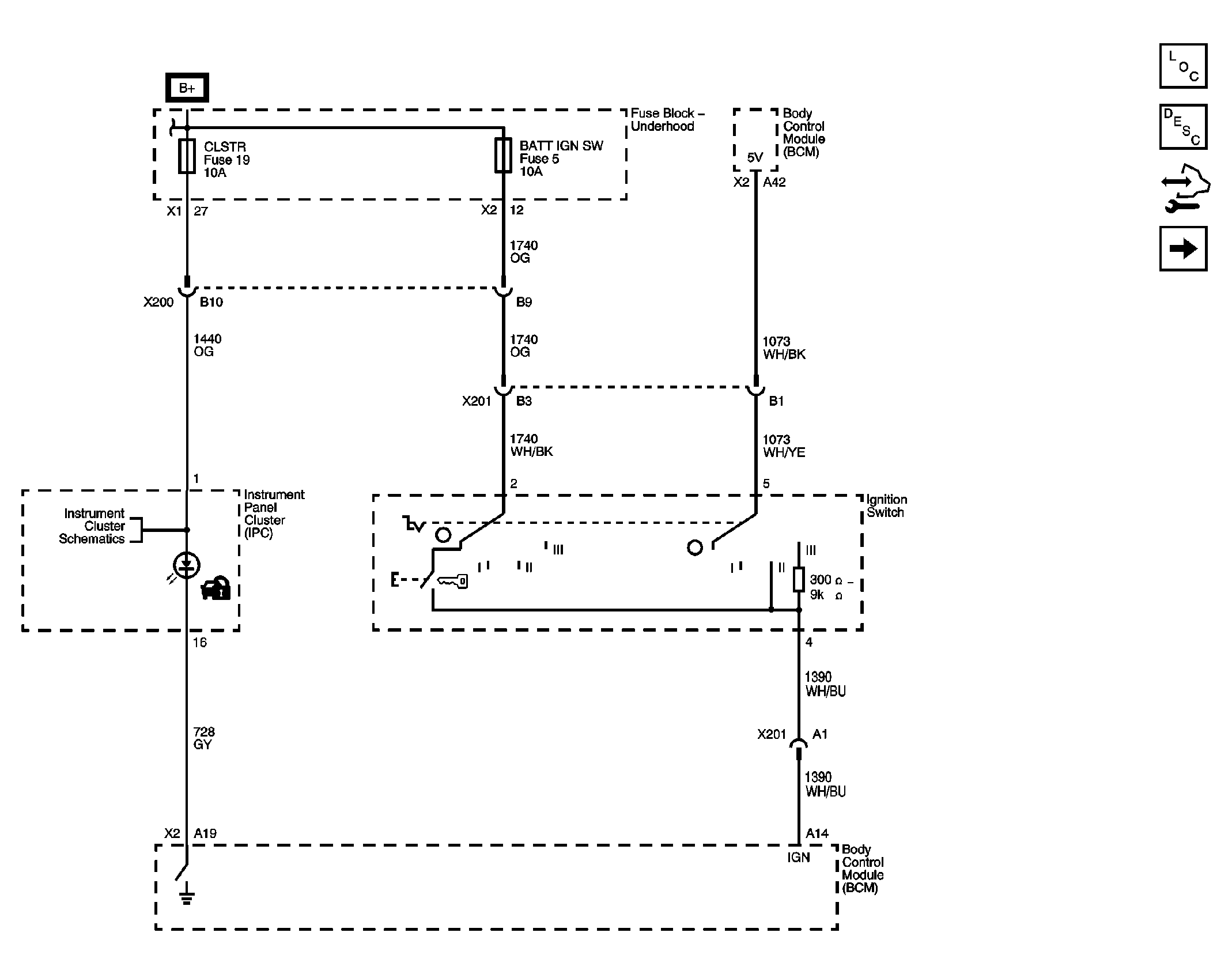

Fig 1: Passlock™ (without BAE) Schematic
GM2223846Courtesy of GENERAL MOTORS CORP.

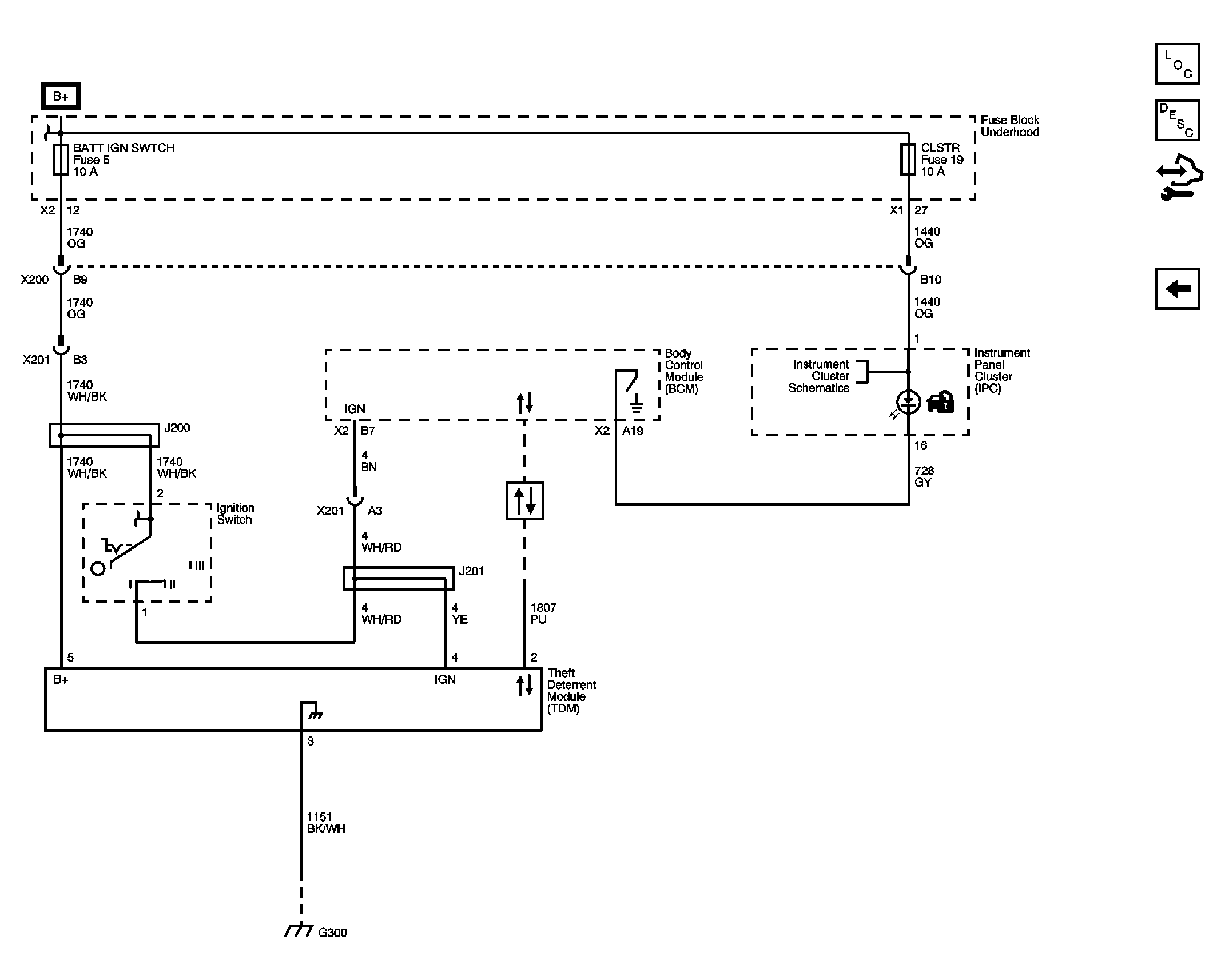

Fig 2: PASS-Key® III (BAE) Schematic
GM2080523Courtesy of GENERAL MOTORS CORP.
