Ground Views

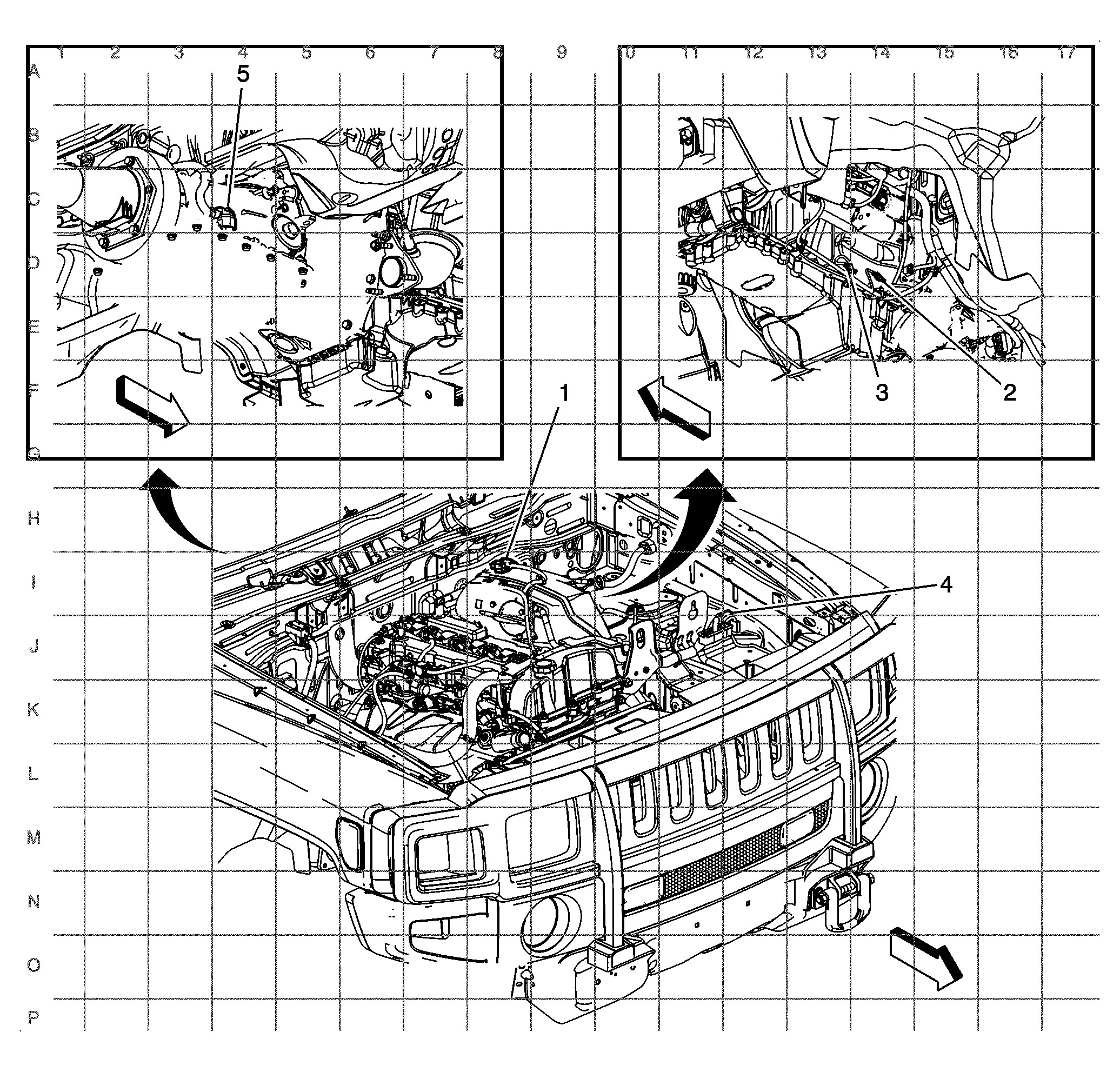

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X101 |
| 2 |
G102 |
| 3 |
G103 |
| 4 |
X125 |
| 5 |
X175 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
J110 |
| 2 |
J141 |
| 3 |
J142 |
| 4 |
G105 |
| 5 |
J143 |
| 6 |
X115 |
| 7 |
X125 |
| 8 |
X130 |
| 9 |
X150 |
| 10 |
X155 |
| 11 |
G106 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X330 |
| 2 |
X335 (CF5 or UE1) |
| 3 |
X600 |
| 4 |
X275 |
| 5 |
G300 |
| 6 |
X307 |
| 7 |
X308 |
| 8 |
X380 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X350 |
| 2 |
X500 |
| 3 |
X204 |
| 4 |
X315 |
| 5 |
X320 |
| 6 |
X370 |
| 7 |
G320 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X410 |
| 2 |
G345 and G350 |
| 3 |
G340 |
| 4 |
X430 |
| 5 |
X450 |
