Removal Procedure

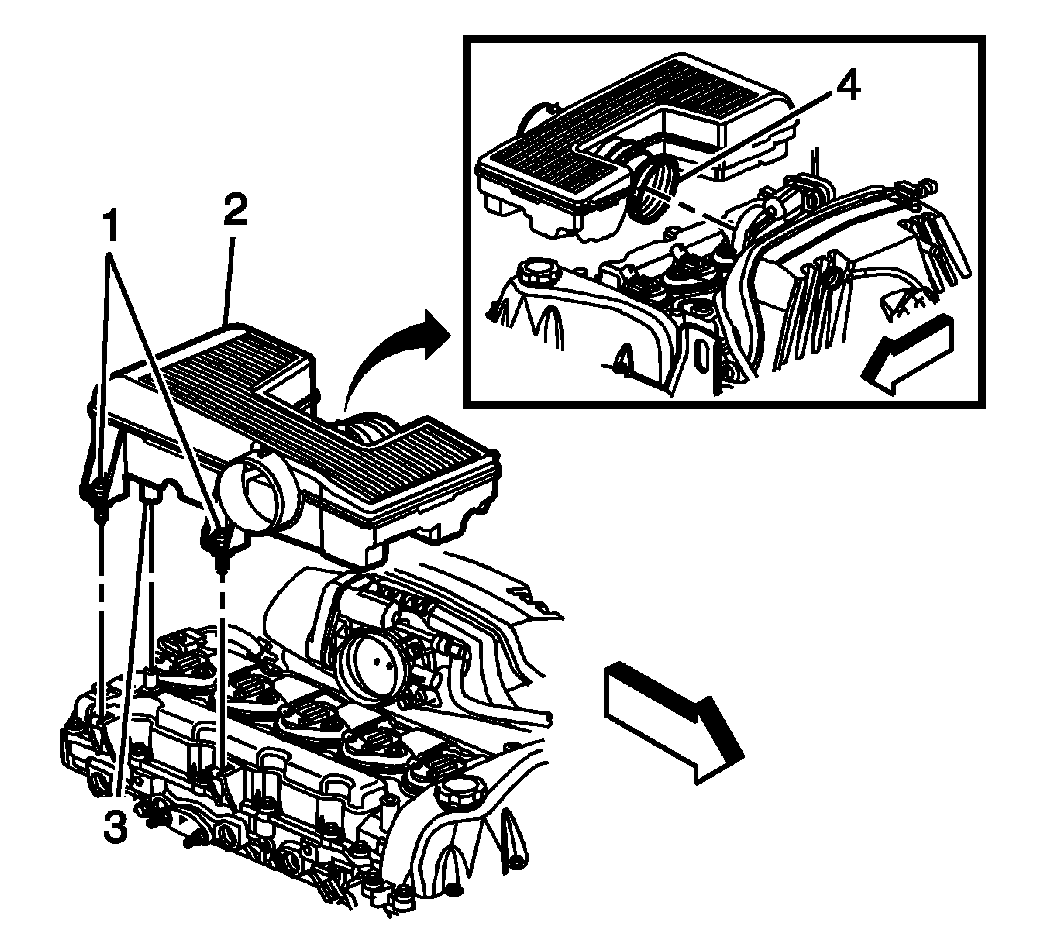

    Fig 1: View Of Air Cleaner Resonator
    GM1352016Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
  2. Loosen the air cleaner resonator outlet duct clamp (4).
  3. Remove the 2 air cleaner resonator bolts (1).
  4. Complete the following in order to remove the air cleaner resonator (2) and outlet duct from the engine:
    1. Lift upward on the assembly.
    2. Disconnect the following:
      • The crankcase ventilation hose (3) from the camshaft cover
      • The outlet duct (4) from the throttle body
    3. Remove the assembly (2) from the engine.
