Shift Lever Assembly Replacement

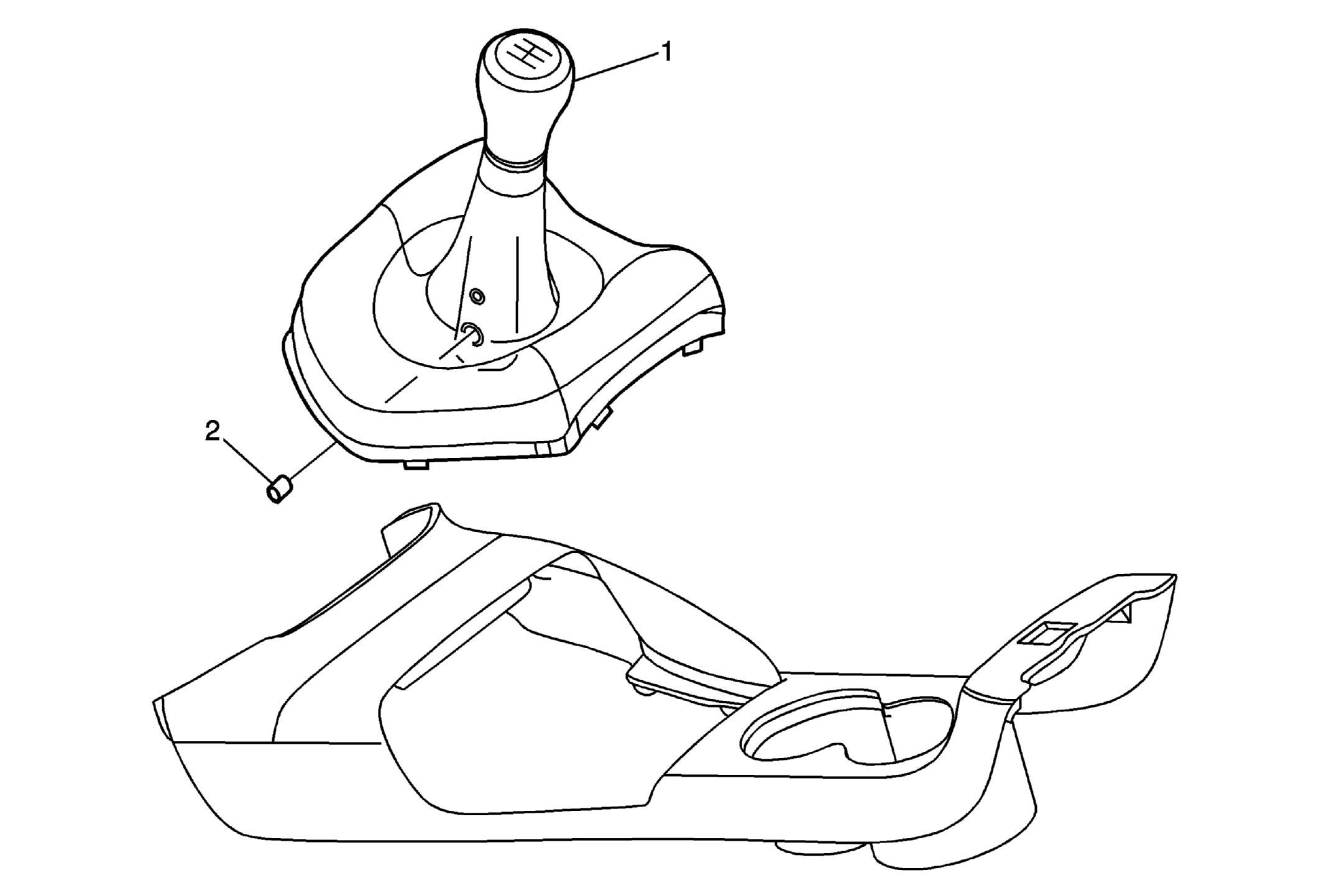

Fig 1: Shift Lever Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Lever Assembly Procedure Release the tabs to remove the shiftier boot. Lift boot up to access the shift lever fastener.
2	Shift Lever Assembly Fastener CAUTION: Refer to Fastener Caution . Procedure: Apply threadlock GM P/N 1234593 (Canadian P/N 10953488) to the shift lever set screw threads before reinstalling. Tighten: 25 N.m(18 lb ft)

Callout

Component Name

Shift Lever Assembly

Procedure

Shift Lever Assembly Fastener

CAUTION: Refer to Fastener Caution .

Procedure:
Apply threadlock GM P/N 1234593 (Canadian P/N 10953488) to the shift lever set screw threads before reinstalling.

Tighten: 25 N.m(18 lb ft)
