Thread Repair: Repair

The thread repair process involves a solid, thin walled, self-locking, carbon steel, bushing type insert. During the insert installation process, the installation driver tool cold-rolls the bottom internal threads and expands the bottom external threads of the insert into the base material. This action mechanically locks the insert into place.

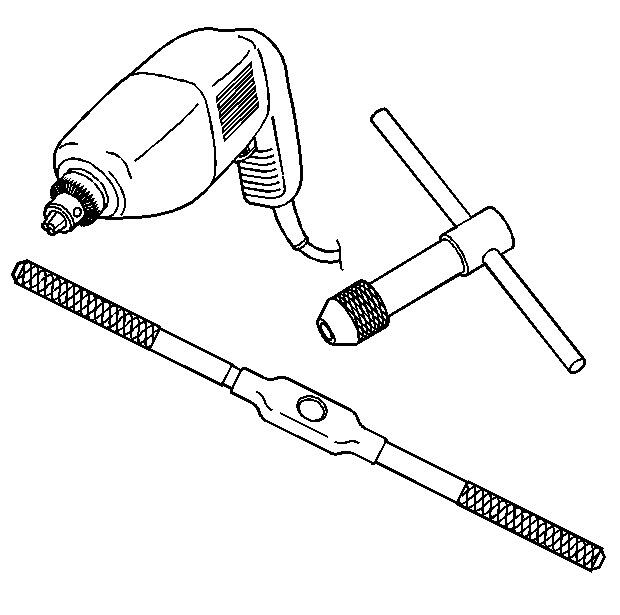

The J 42385-400:  thread repair kit is designed for use with either a suitable tap wrench or drill motor. Limited access and larger hole repair may process better using a tap wrench. A J 43965:  extension kit may also be necessary to drive the thread repair tooling dependent on access to the hole being repaired.

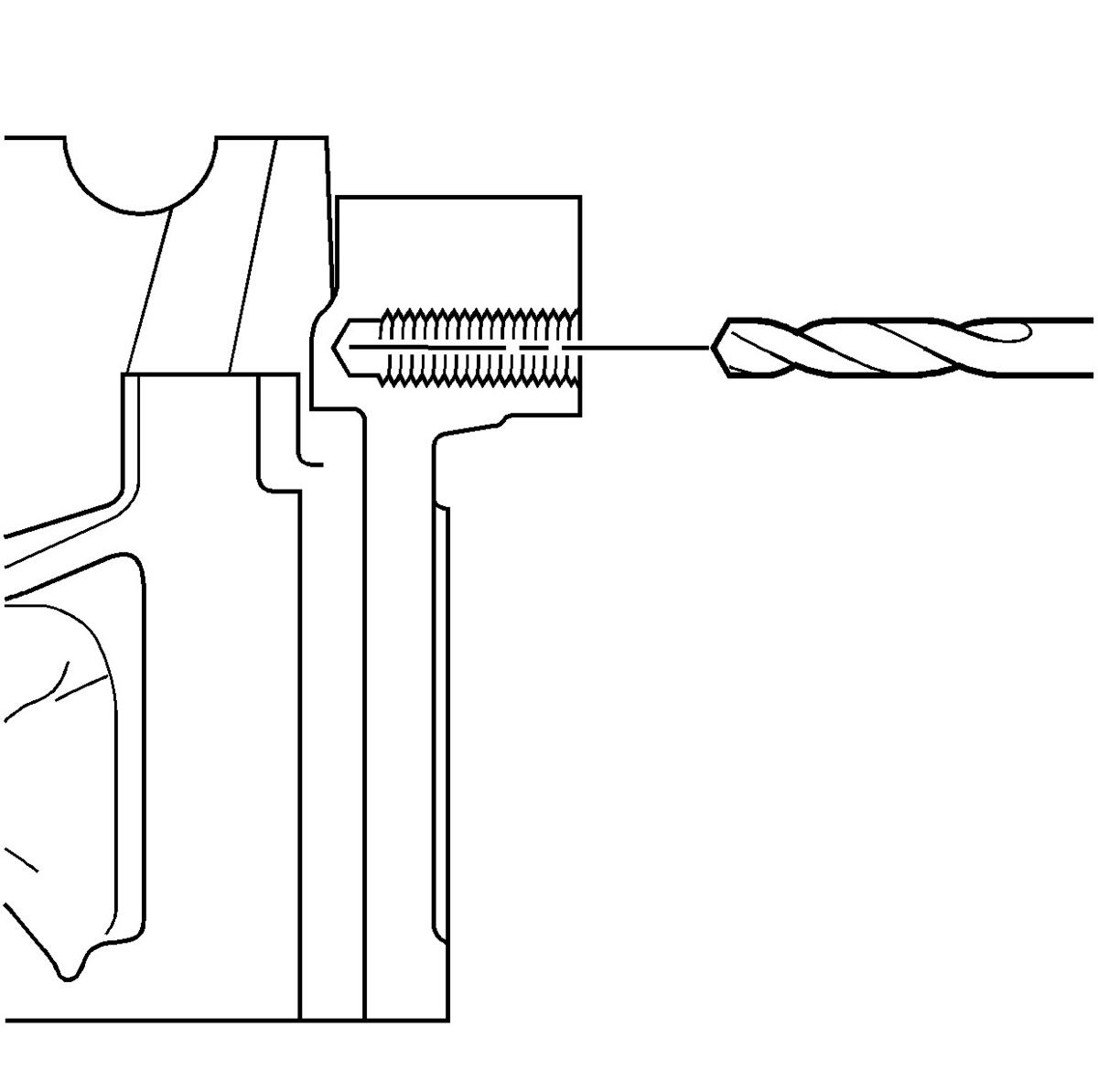

It is critical that the drilling, counterboring and tapping of the hole to be repaired follows the same centerline as the original hole.

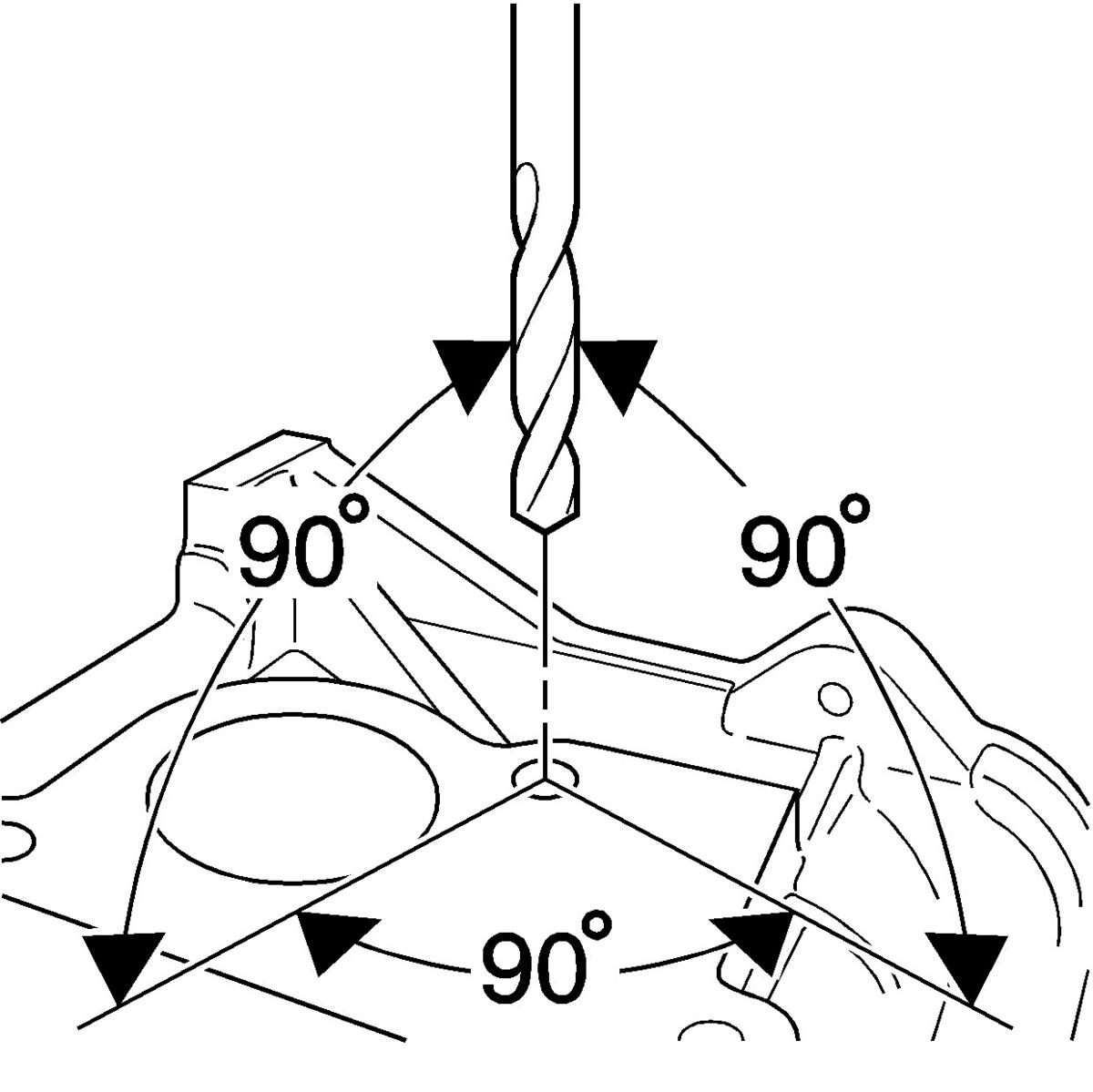

During the drilling and tapping of the hole being repaired ensure the tooling is consistently machining perpendicular to the surface of the base material.

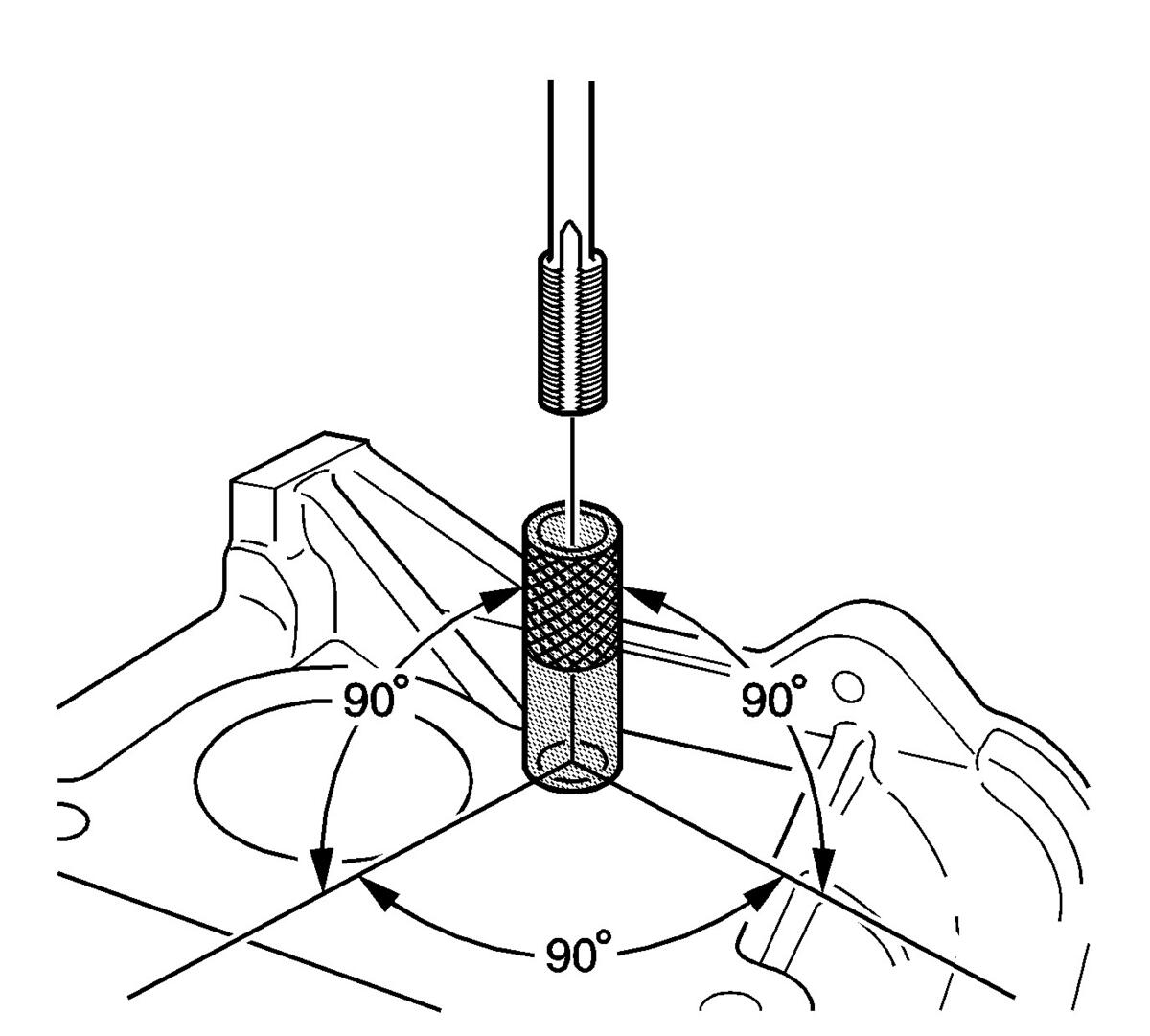

If the threaded hole being repaired has a base surface perpendicular to the hole centerline, tapping guides are available to aid in tapping the hole.

Tap Size	Tap Guide	Tape Size	Tape Guide	Tap Size	Tape Guide
-	J 42385-	-	J 42385-	-	J 42385-
6 x 1.0	729	10 x 1.5	731	14 x 1.5	736
8 x 1.25	730	12 x 1.5	732	20 x 1.5	737
