Endgate Handle Replacement

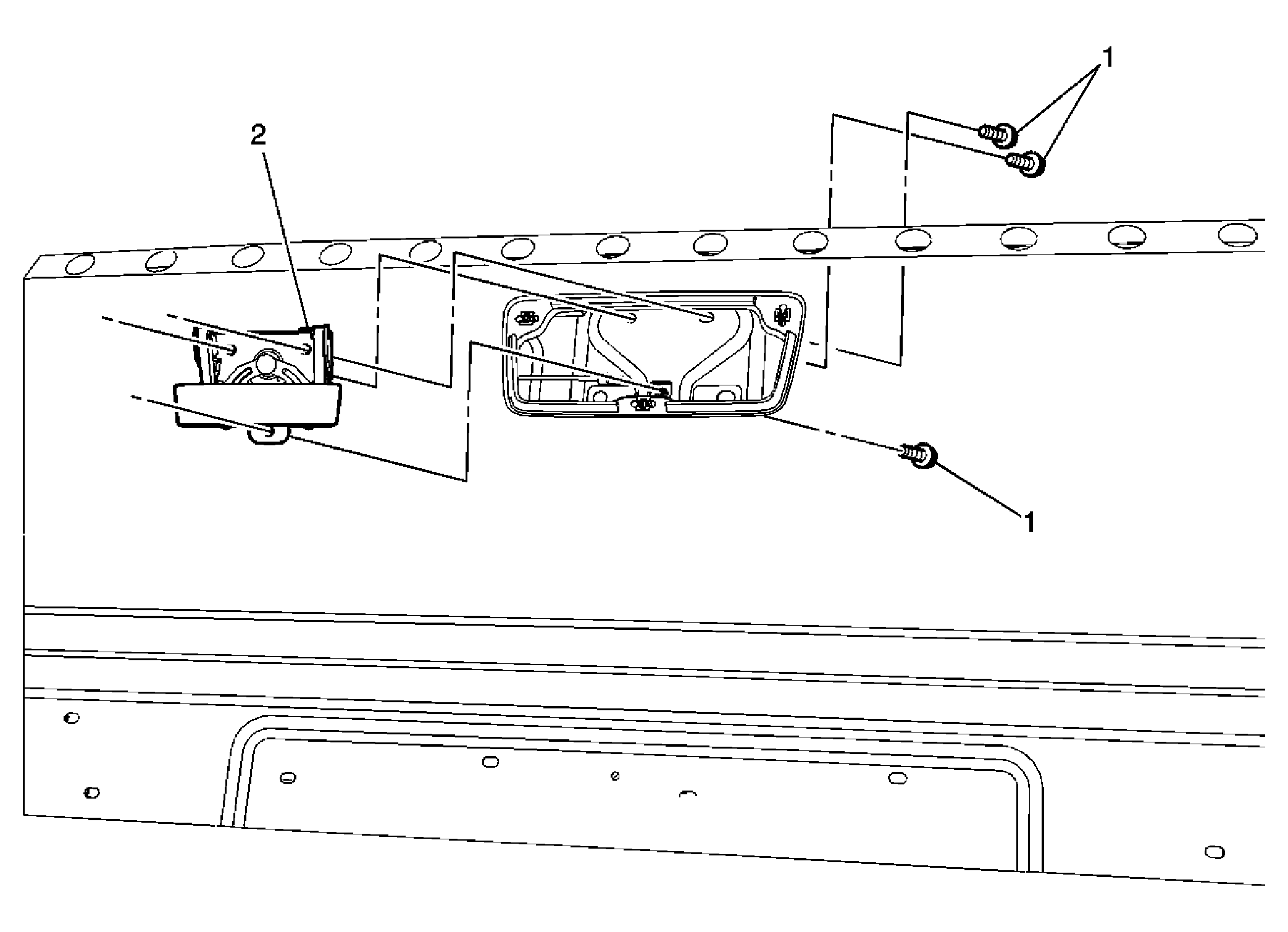

Fig 1: Endgate Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the endgate upper finish molding cap. Refer to Endgate Upper Finish Molding End Cap Replacement (H3T) or Endgate Upper Finish Molding End Cap Replacement (H3T After VIN-98147491) . Remove the endgate liner panel bolts and panel. Refer to Pickup Box Endgate Liner Replacement (H3T) . Remove the pickup box endgate latch bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (H3T) .
1	Endgate Handle Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Endgate Handle Assembly Procedure: Disconnect the actuator rods.

Callout

Component Name

Preliminary Procedures

Endgate Handle Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Endgate Handle Assembly
Procedure:
Disconnect the actuator rods.
