Endgate Latch Replacement

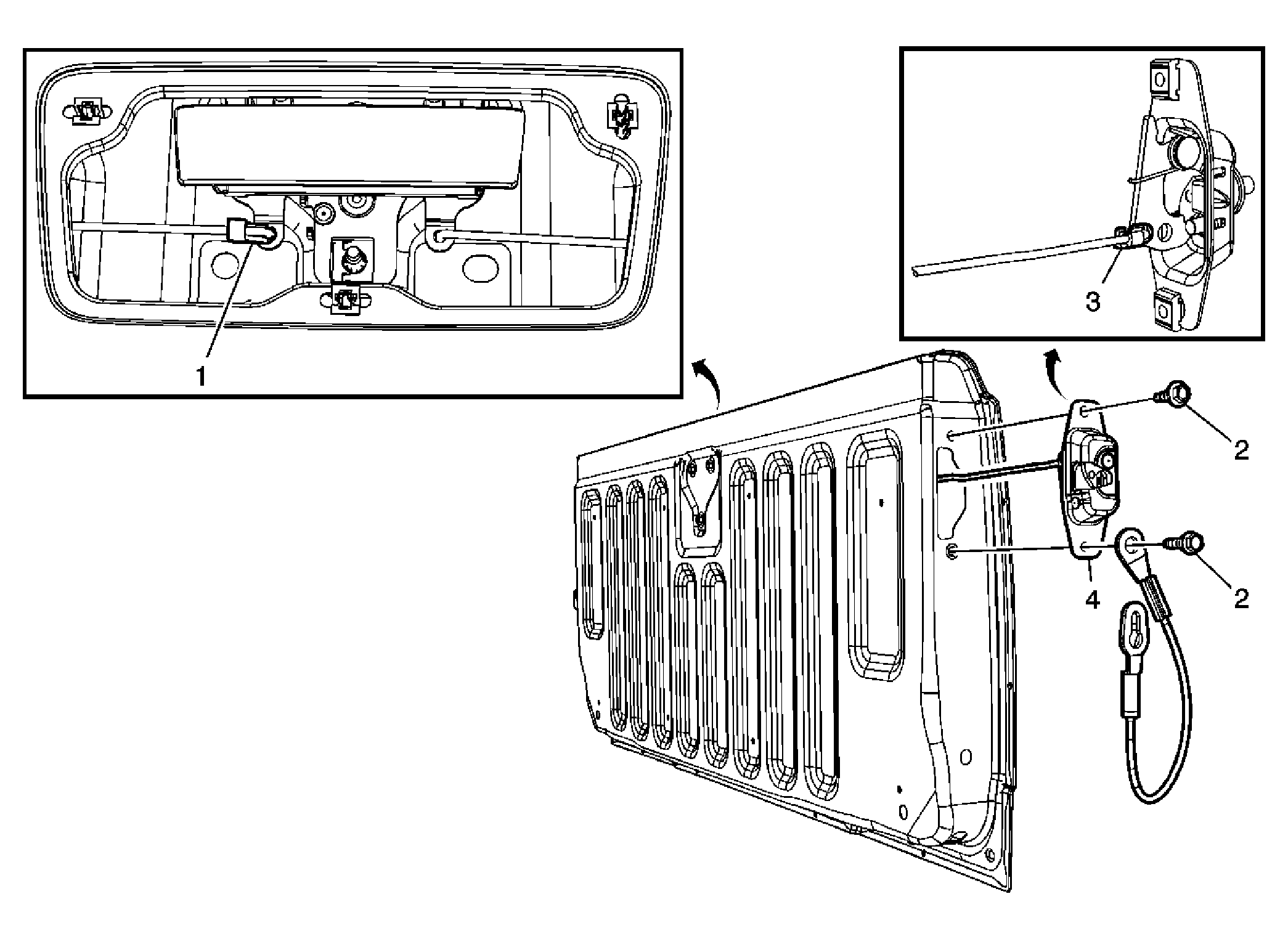

Fig 1: Endgate Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (H3T) .
1	Endgate Latch Rod Procedure: Disconnect the latch rod from the latch handle.
2	Endgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
3	Endgate Latch Assembly Actuator Rod Clip
4	Endgate Latch Assembly
