Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

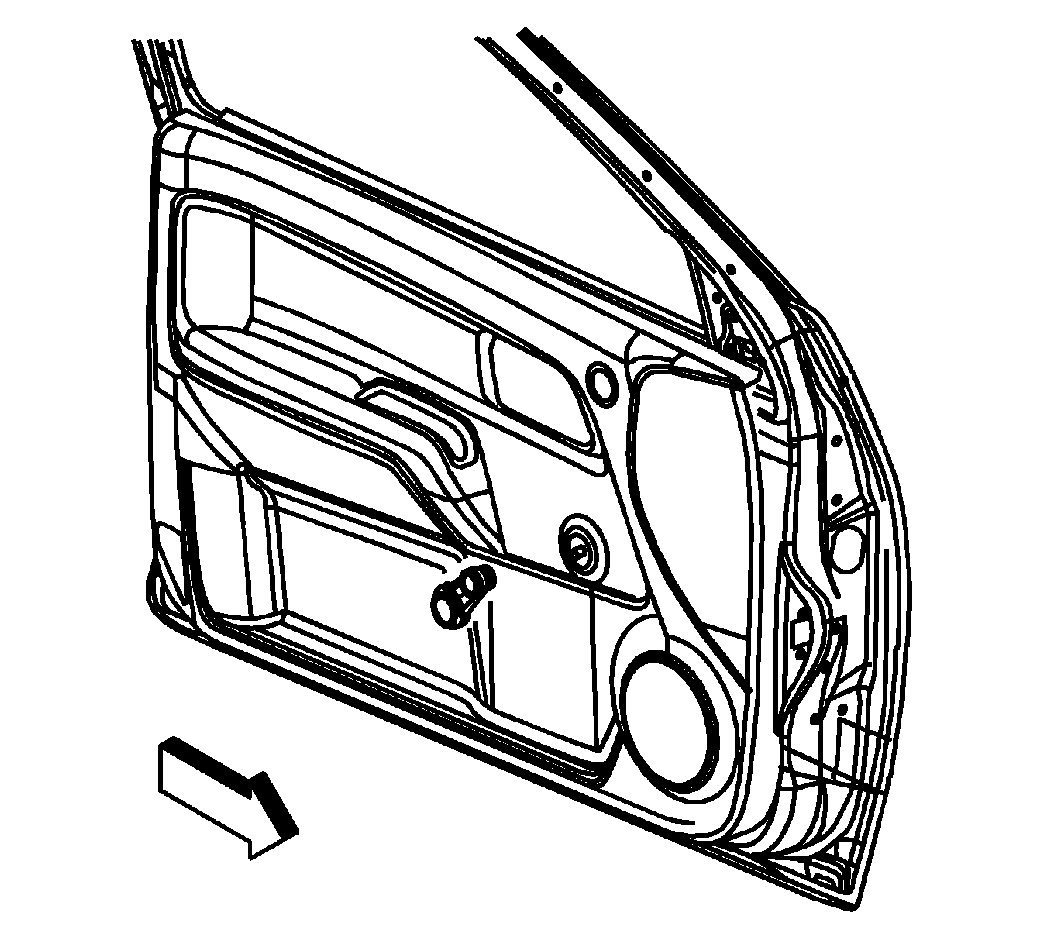

Fig 1: View Of Window Regulator Handle

Courtesy of GENERAL MOTORS CORP.

Ensure that the window is in the full up position.
Install the white plastic washer to the regulator shaft.
Install the retaining clip to the handle.

Fig 2: Positioning Window Regulator Handle

Courtesy of GENERAL MOTORS CORP.

Install the window regulator handle to the door with the handle forward at about a 50 degree angle.
Push on the handle until the clip engages on the shaft.
