Serial Data Gateway Module Replacement

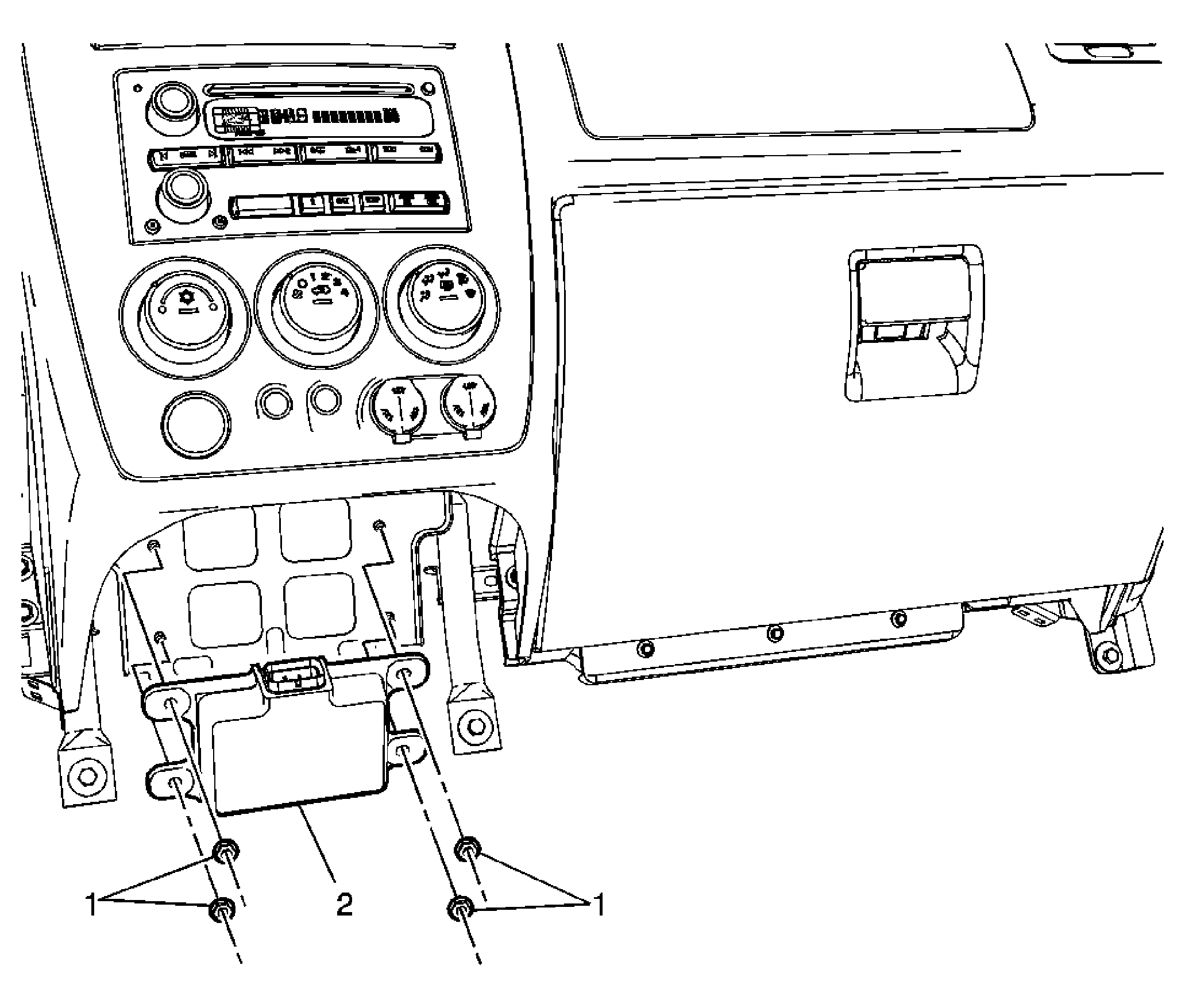

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front floor console. Refer to Console Replacement (Left Hand Drive) or Console Replacement (Right Hand Drive) .
1	Serial Data Gateway Module Nuts (Qty 4) CAUTION: Refer to Fastener Caution .
2	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Reprogram the serial data gateway module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures:
Remove the front floor console. Refer to Console Replacement (Left Hand Drive) or Console Replacement (Right Hand Drive) .

Serial Data Gateway Module Nuts (Qty 4)

CAUTION: Refer to Fastener Caution .

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Reprogram the serial data gateway module if replaced. Refer to Control Module References .
