Dome Lamp Bulb Replacement
WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

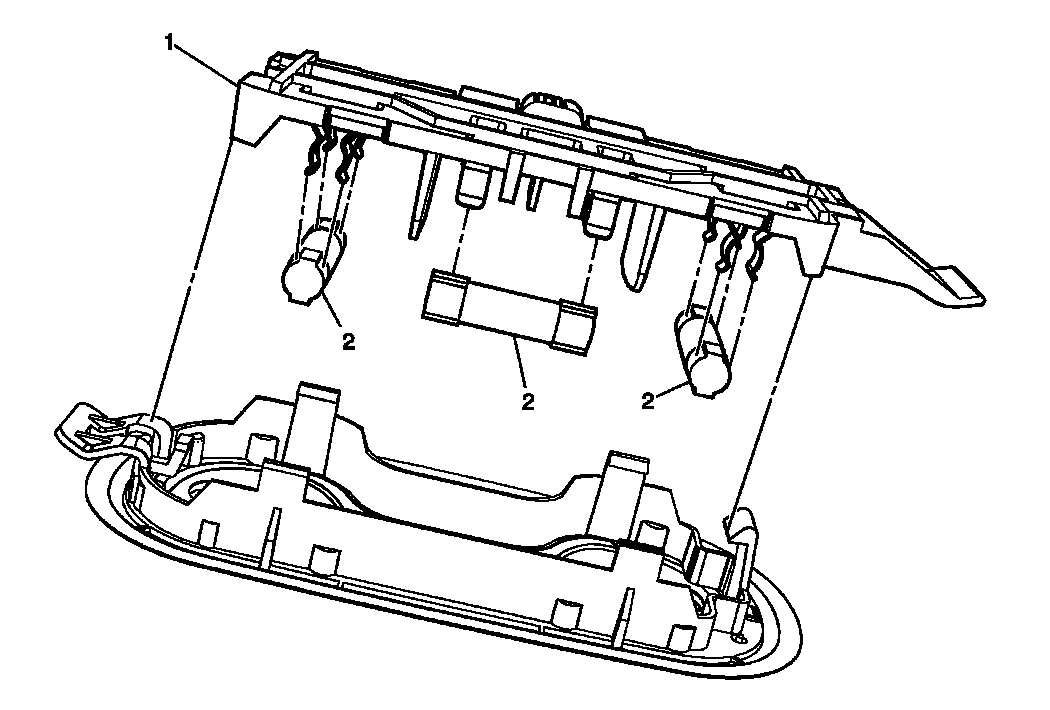

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the dome lamp. Refer to Dome Lamp Replacement . |
|
| 1 | Backplate Asm |
| 2 | Dome Lamp Bulb (Qty: 3) |
