Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

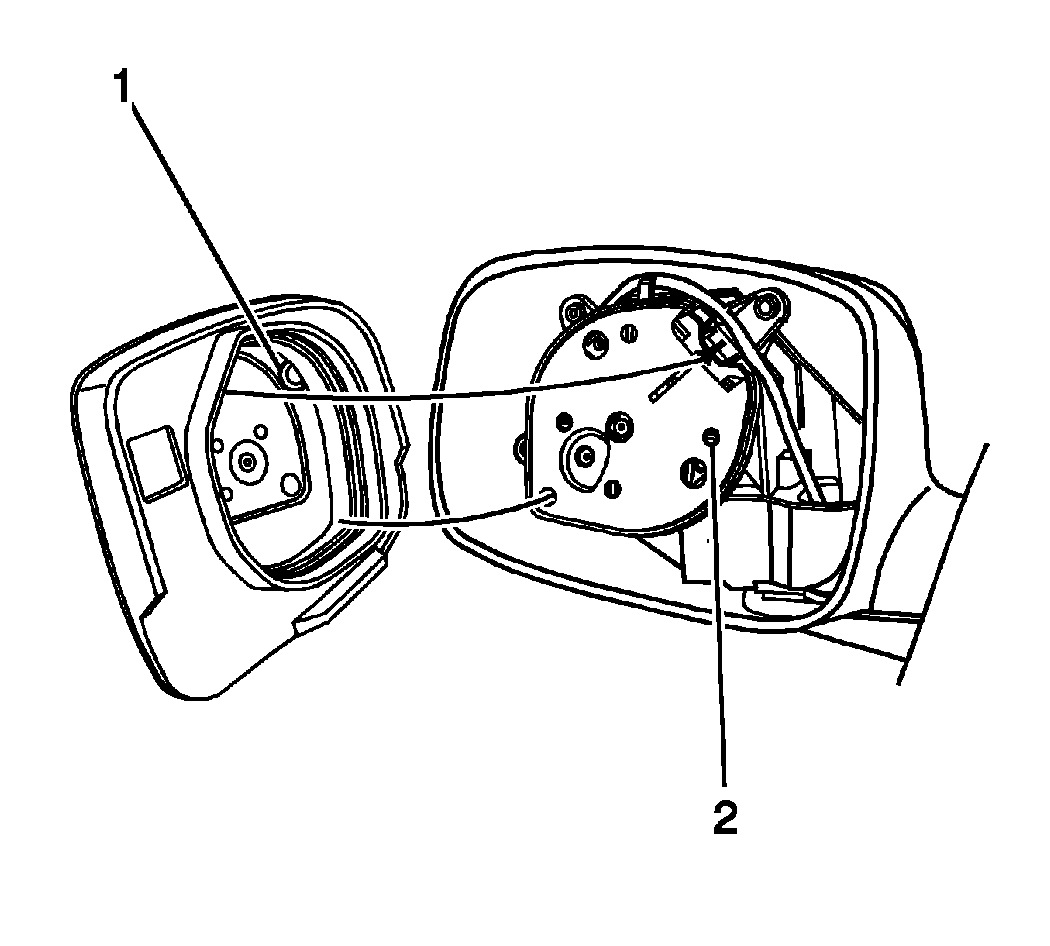

Fig 1: View Of Mirror Glass & Mirror Motor

Courtesy of GENERAL MOTORS CORP.

Position the mirror glass (1) to the mirror motor (2).

Fig 2: Mirror Glass & Motor

Courtesy of GENERAL MOTORS CORP.

Install the mirror glass to the mirror motor with the palm of the hand on the center of the glass, pressing in until fully seated.
Inspect the mirror for proper operation.
