Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator.
  2. Install the condenser to the radiator.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolts retaining the condenser to the radiator and tighten to 28 N.m (21 lb ft).
  4. Install the grille.
  5. Install the radiator mount bracket.
  6. Install the radiator mounting bracket bolt and tighten to 28 N.m (21 lb ft).
  7. Raise the vehicle.

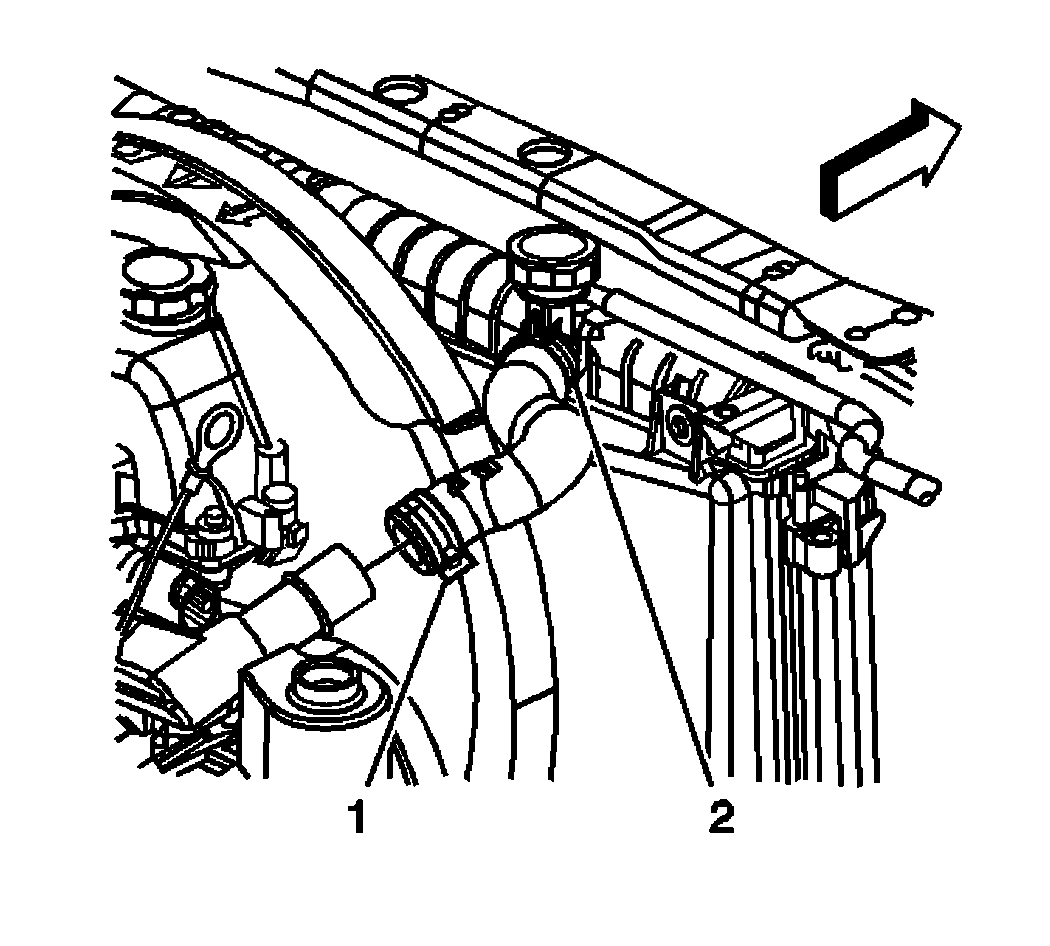

    8. Fig 1: View Of Radiator Hose Clamps
    GM753673Courtesy of GENERAL MOTORS CORP.
  8. Install the radiator outlet hose (1) to the radiator.
  9. Using J 38185  reposition the radiator outlet hose clamp (2) to the radiator. See Special Tools .

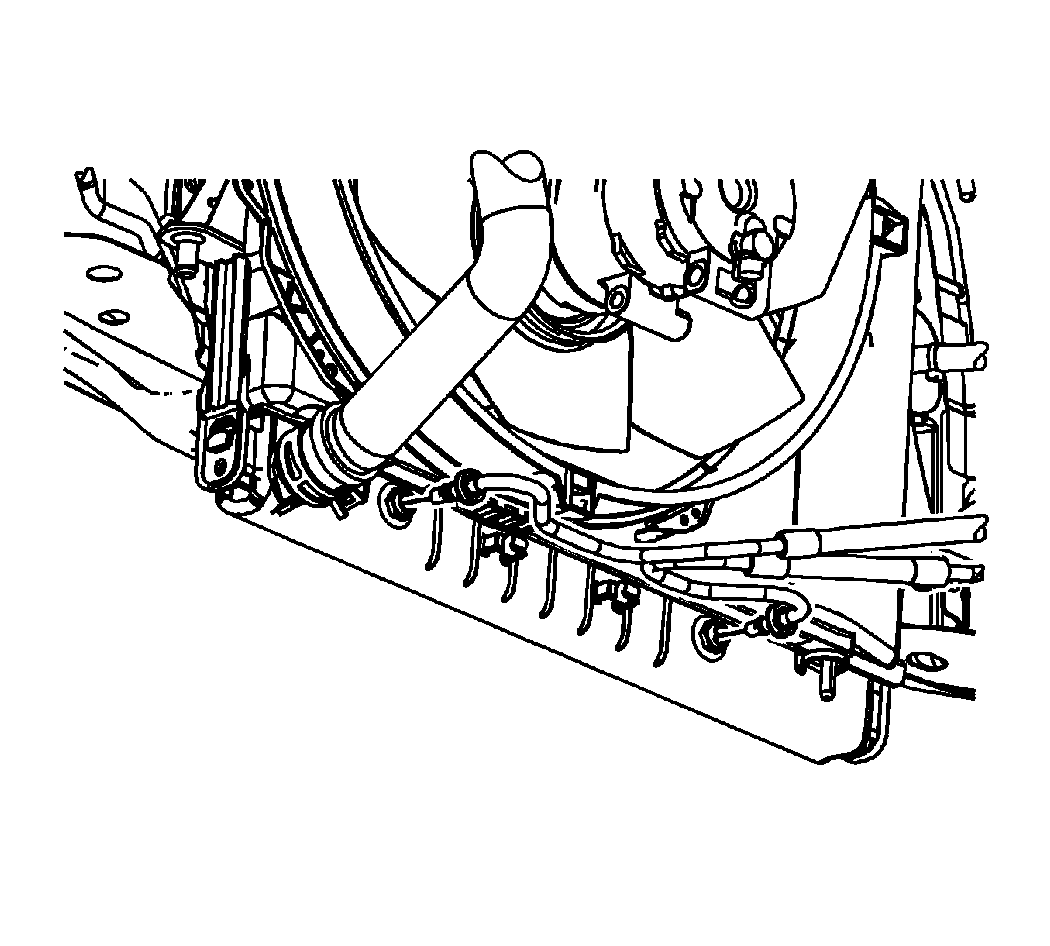

    10. Fig 2: View Of Transmission Cooler Lines At Radiator
    GM1566575Courtesy of GENERAL MOTORS CORP.
  10. Connect the transmission cooler lines to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  11. Lower the vehicle.
  12. Install the radiator vent inlet hose to the radiator.
  13. Install the fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LLV, LLR)  or Engine Coolant Fan Shroud Replacement (LH9) .
