Planetary Gear Assembly: Disassembly

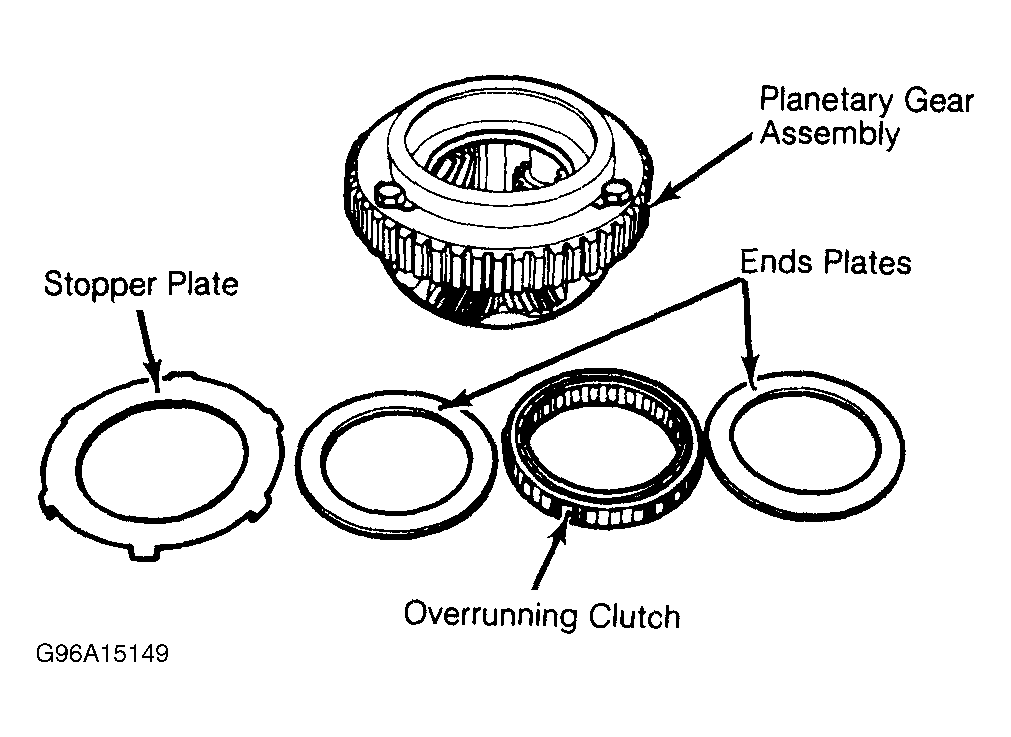

Straighten tabs of stopper plate and remove stopper plate. Remove bearing end plates and overrunning clutch. Check overrunning clutch sprag, spring and outer race for damage. See Figure .
