TORQUE SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): V1-30-003, Date of Issue: January, 1988

HYUNDAI:	1986-87 Excel
GROUP:	30 - Fuel System

JET SOLENOID VALVE (JSV) ENRICHMENT SOLENOID VALVE (ESV) DECELERATION SOLENOID VALVE (DSV)

When reassembling 3 Solenoid Carburetors or installing new Carburetor Control Solenoids, please use the following torque specification which does not appear the Excel Repair Manual.

Carburetor Control Solenoid torque specification 22-30 In. Lbs.

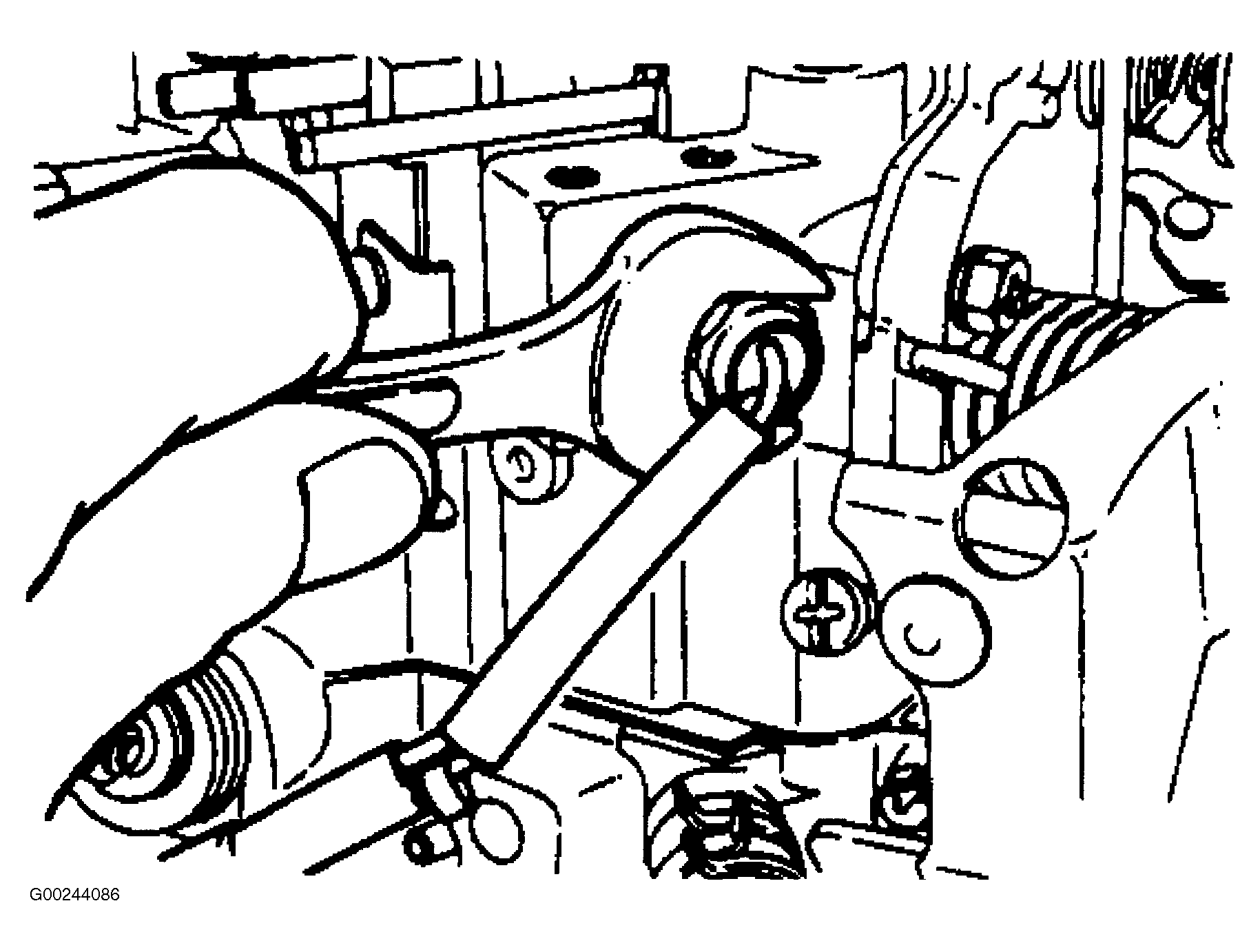

Fig 1: ESV, Enrichment Solenoid Valve

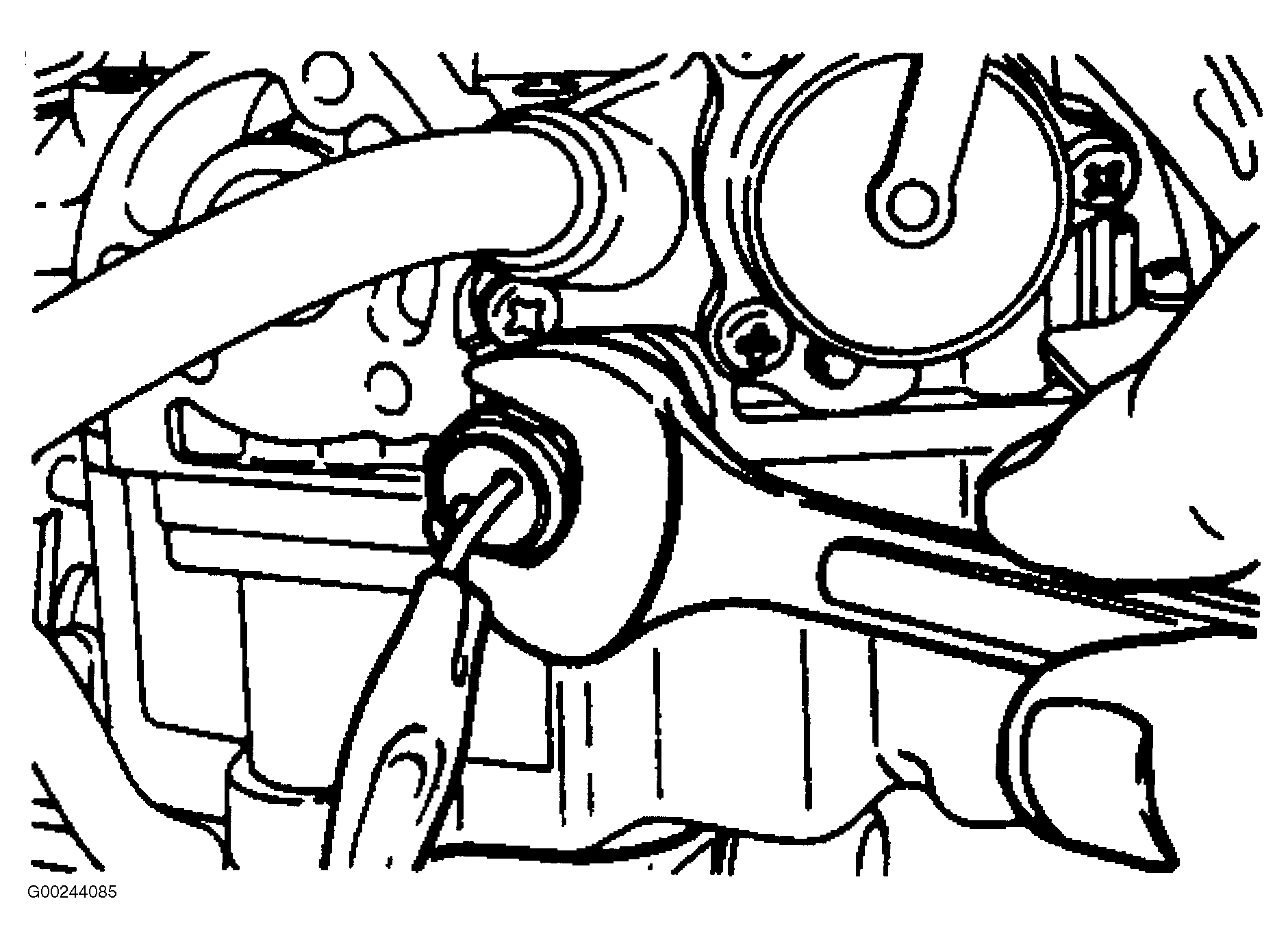

Fig 2: JSV, Jet Solenoid Valve

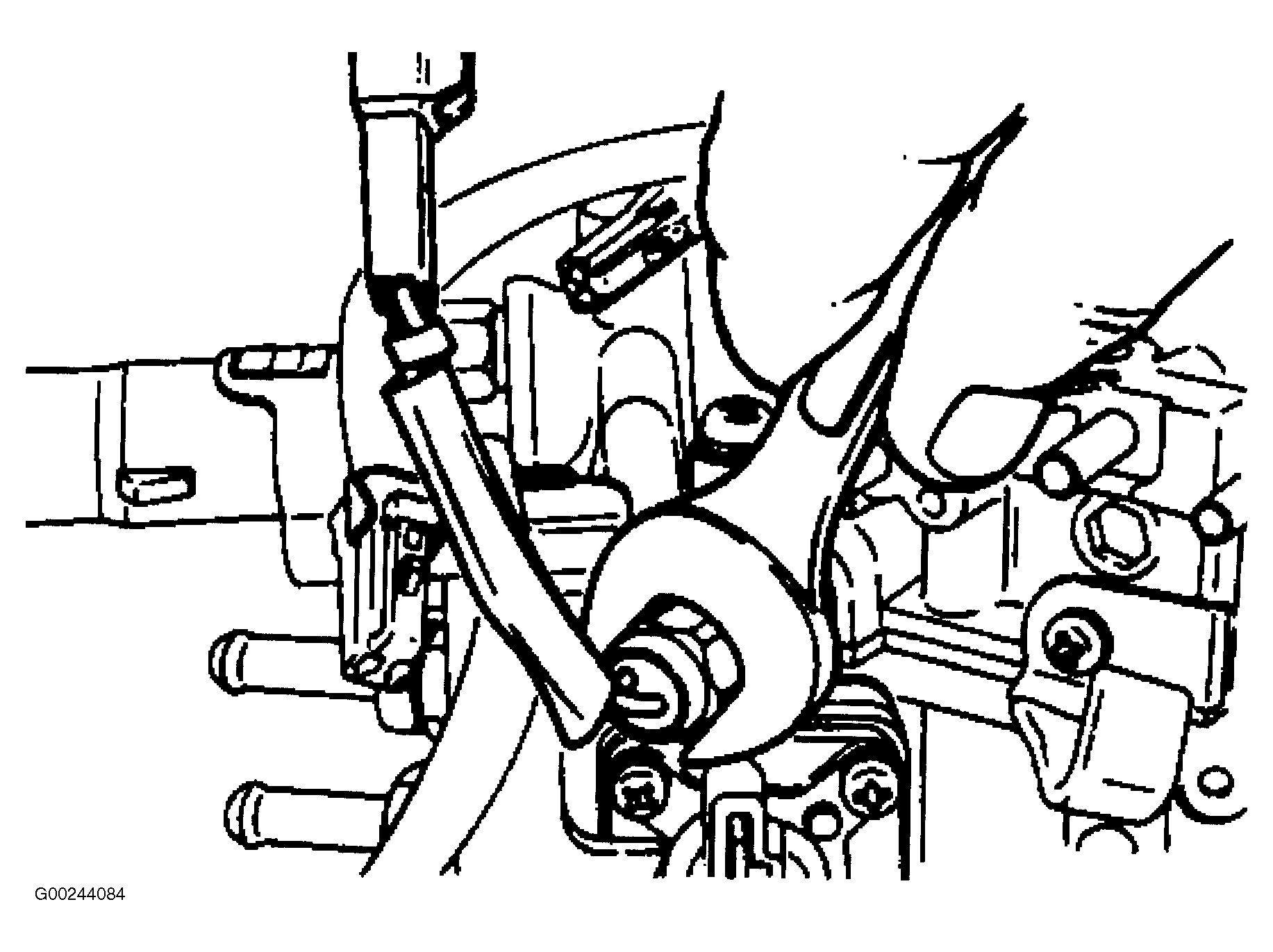

Fig 3: DSV, Deceleration Solenoid Valve
