Maintenance Information
›
Service Point Locations
Service Point Locations

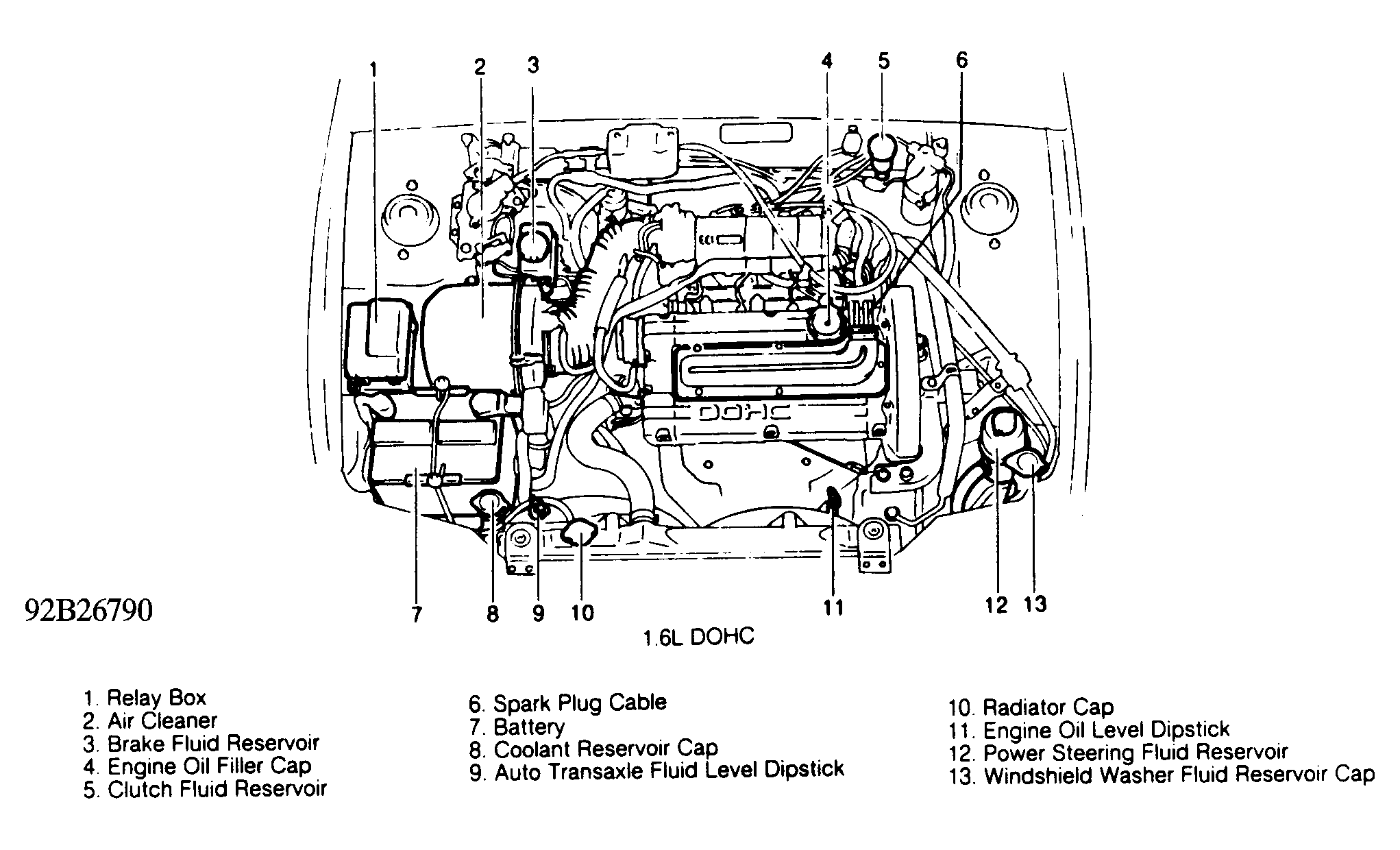

Fig 1: Service Point Locations
Courtesy of HYUNDAI MOTOR CO.

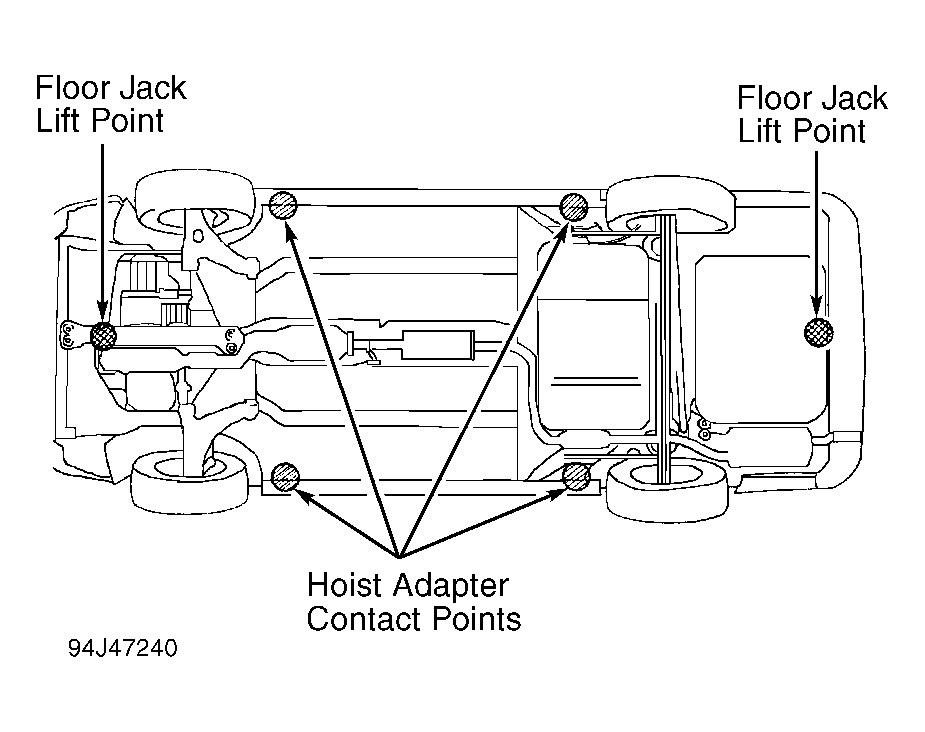

Fig 2: Lift Point Locations
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
