Radiator Fan Relay (Excel & SCOUPE)

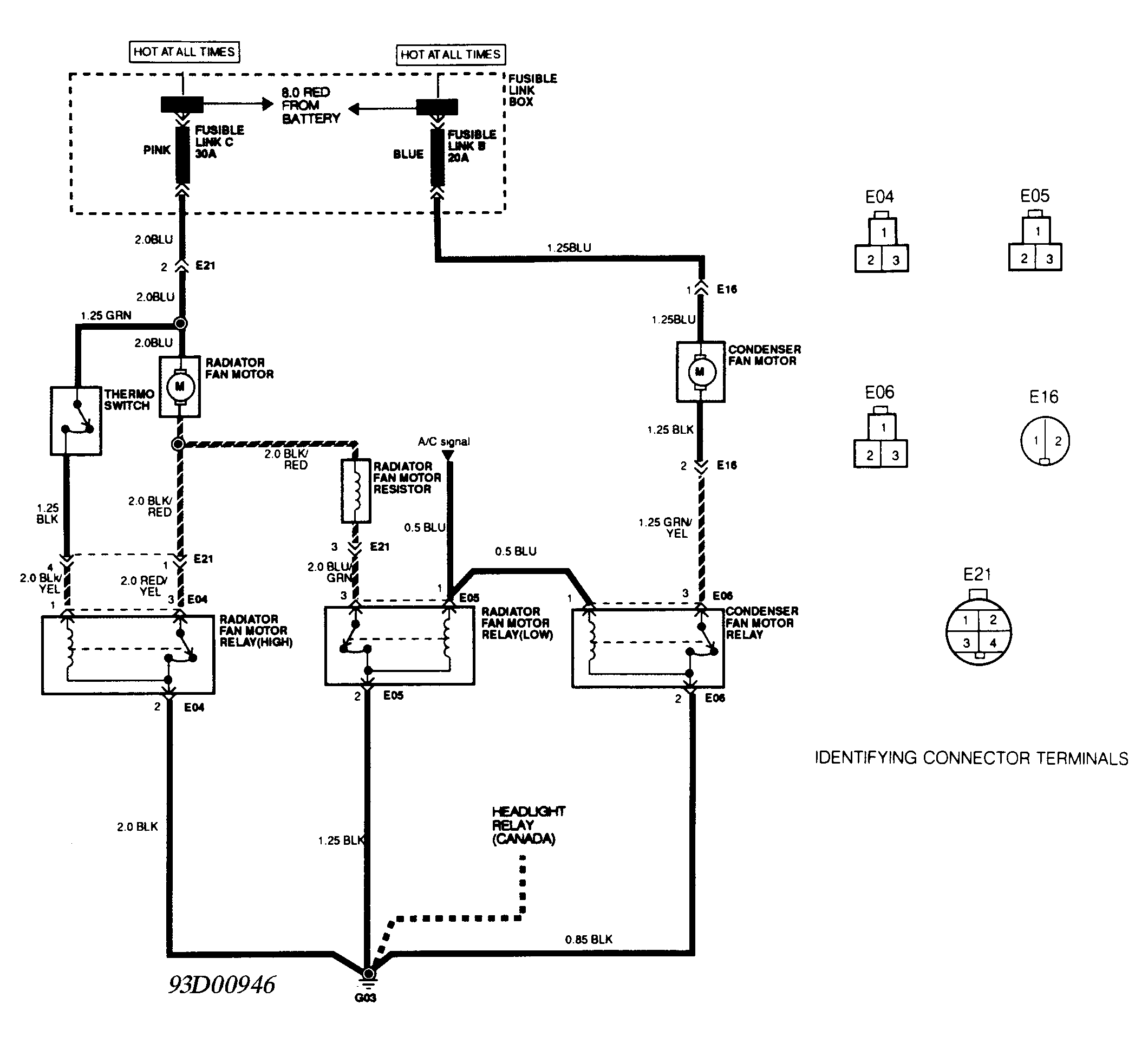

Two radiator fan relays (high and low) are used in radiator fan circuit. Relays are located in engine compartment fuse/relay box. Testing information is not provided by manufacturer. See wiring diagram to identify internal circuits for testing. See Figure .
