Sensor Range Charts: Notes

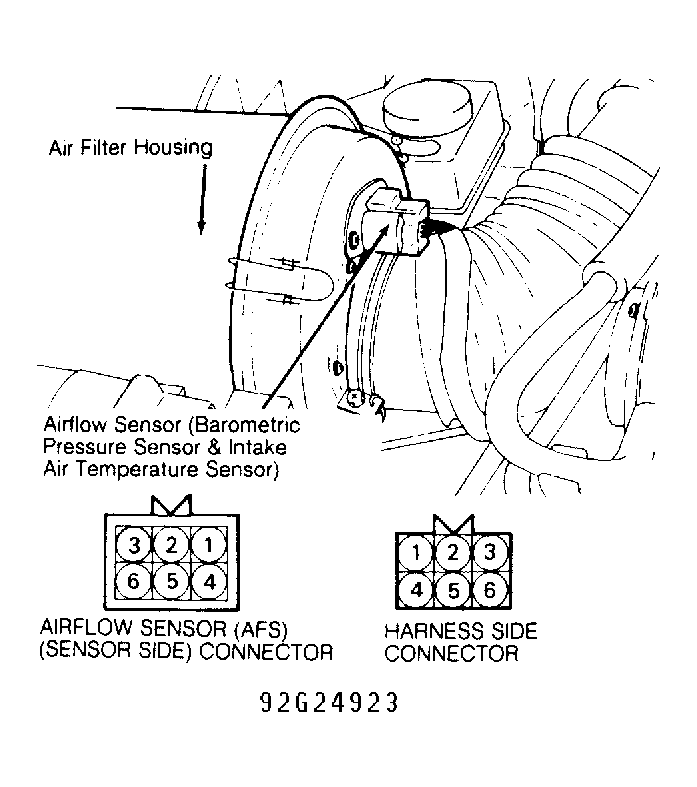

Fig 1: Airflow & BARO Sensors Connector ID
G92G24923Courtesy of HYUNDAI MOTOR CO.
