KICKDOWN Servo

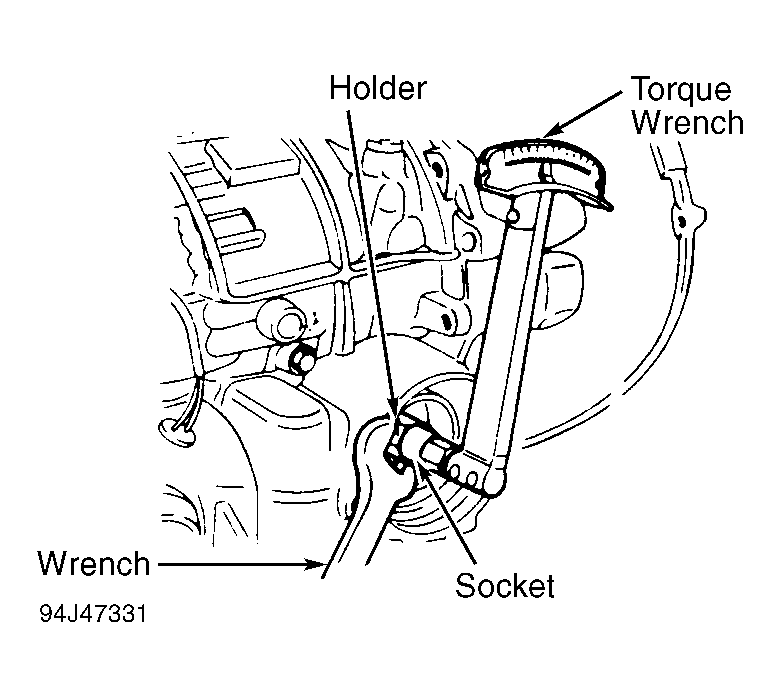

- Clean dirt and other contaminants from servo switch and cover. Remove snap ring. Remove kickdown servo switch. Prevent servo piston from turning by using Holder (09454-33101A). See Fig 1
. Loosen adjusting screw lock nut.
Courtesy of HYUNDAI MOTOR CO.
- Using Socket (09454-33101B) and INCH-lb. torque wrench, tighten adjustment screw 89 INCH lbs. (10 N.m). Loosen adjustment screw and tighten screw 2 turns. Tighten adjustment screw to 44 INCH lbs. (5 N.m). Finally, loosen adjustment screw 2-2 1/4 turns.
- Hold adjustment screw at that setting, and tighten lock nut 18-24 ft. lbs. (25-32 N.m). Install "O" ring in groove and lightly lubricate with ATF. Install servo cover to case and install snap ring. Install kickdown switch to cover.
