Steering System - Manual: Description

Rack and pinion type steering gears are connected to the steering knuckles by tie rods. A flexible coupling connects steering gear assembly to steering column.

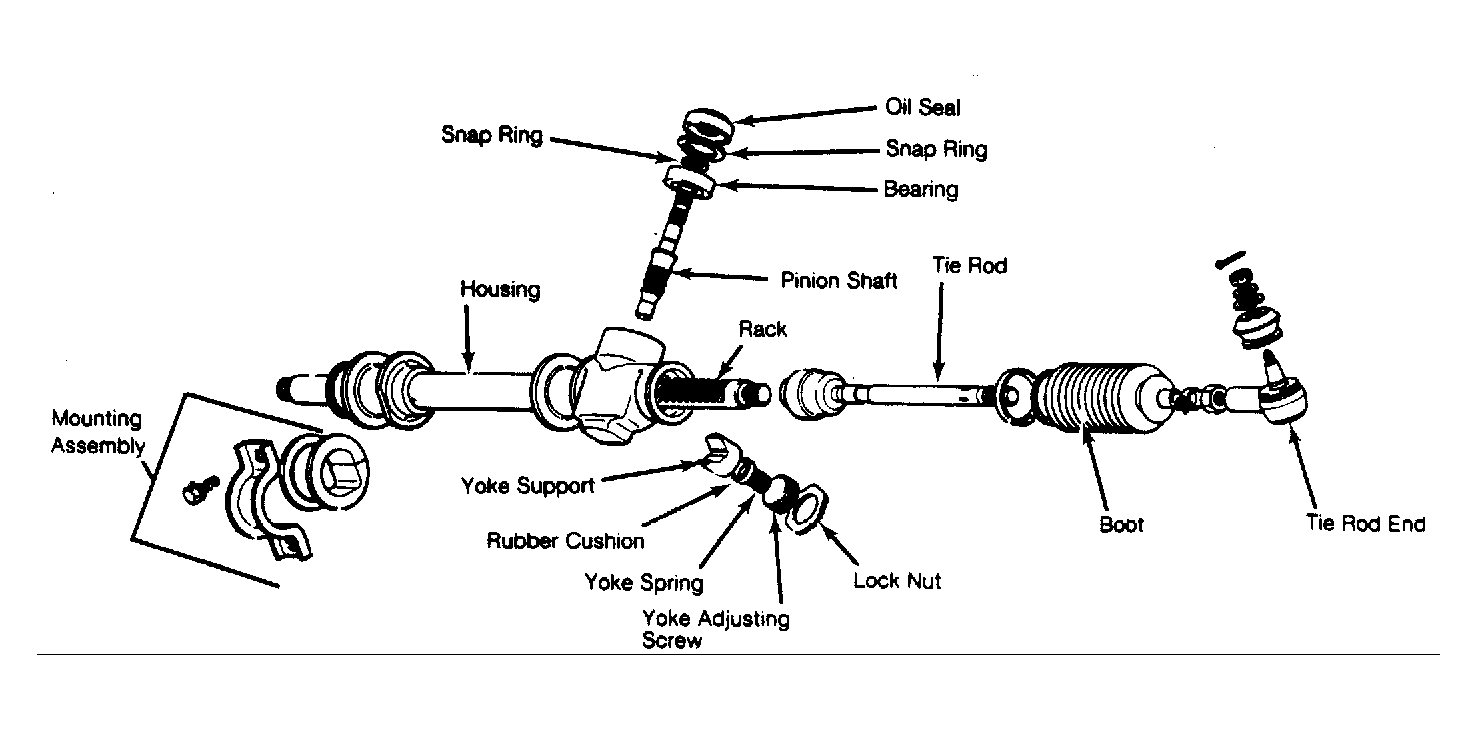

Fig 1: Exploded View of Rack & Pinion Steering Gear
G50444Courtesy of HYUNDAI MOTOR CO.
