Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Block | ||
| Passenger Compartment | Under left side of dash, behind kick panel. See Figure . | |
| Engine Compartment | On right side of engine compartment, behind battery. See Figure . | |
| Fusible Links | ||

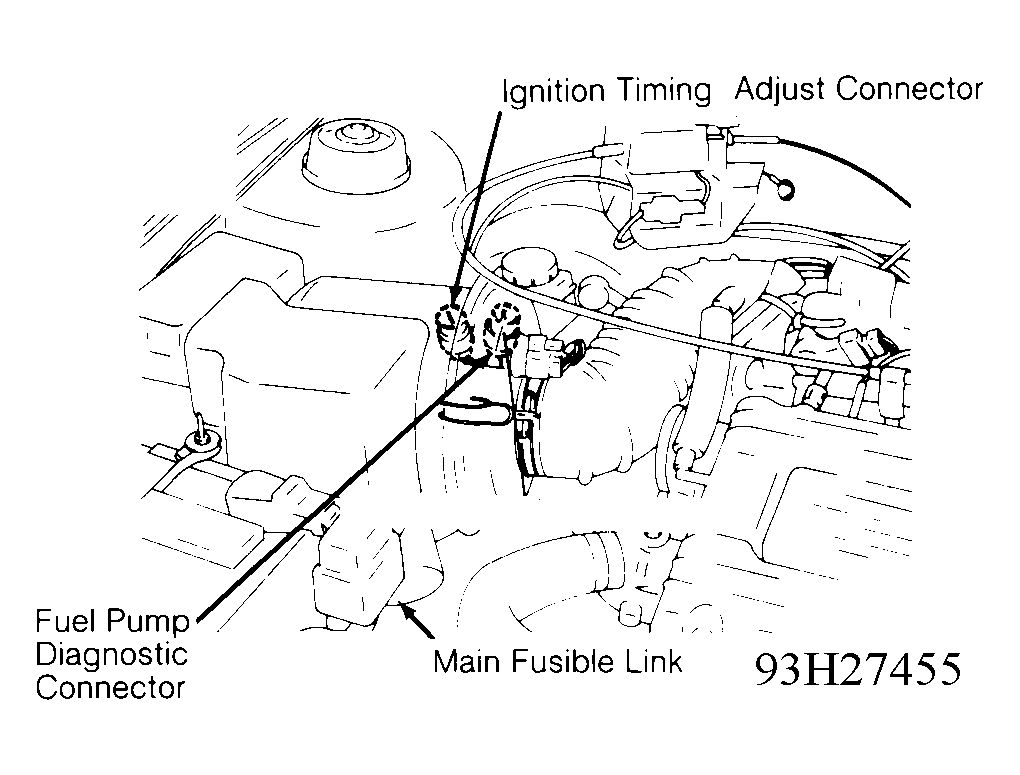

| Main | At positive terminal of battery. See Figure . | |
| Sub | In engine compartment fuse/relay block. | |
| Relay Block - Passenger Compartment | Under left side of dash. See Figure . | |
