Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module (3.0L) | On left front corner of engine compartment. | |

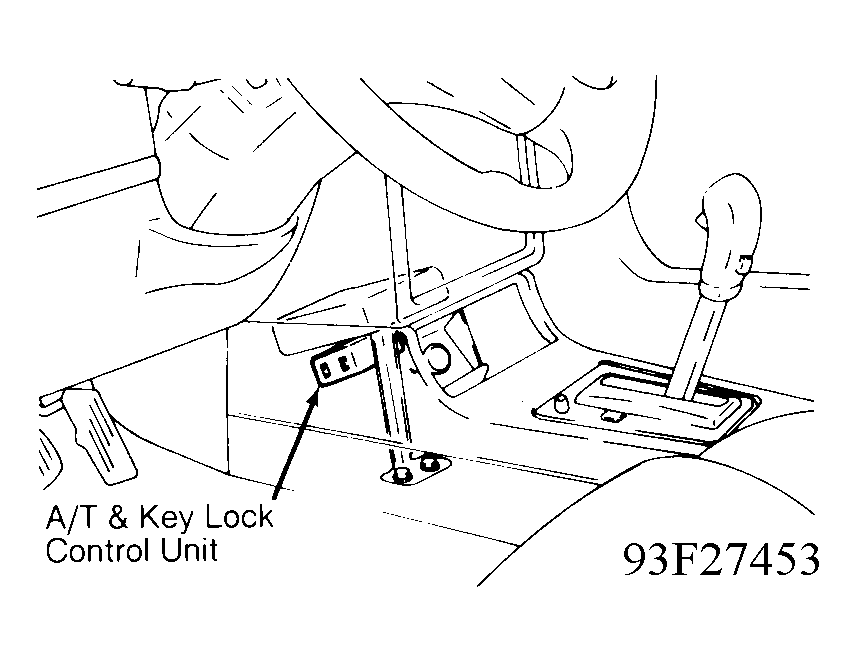

| A/T & Key Lock Control Unit | Under front of center console. See Figure . | |
| Cruise Control Module | ||
| View of Left Side of Dash | Under left side of dash. See Figure . | |
| View of Control Units & Relays | Under left side of dash. See Figure . | |
| Daytime Running Light (DRL) Control Unit (Canada) | On right front of engine compartment, near battery. | |

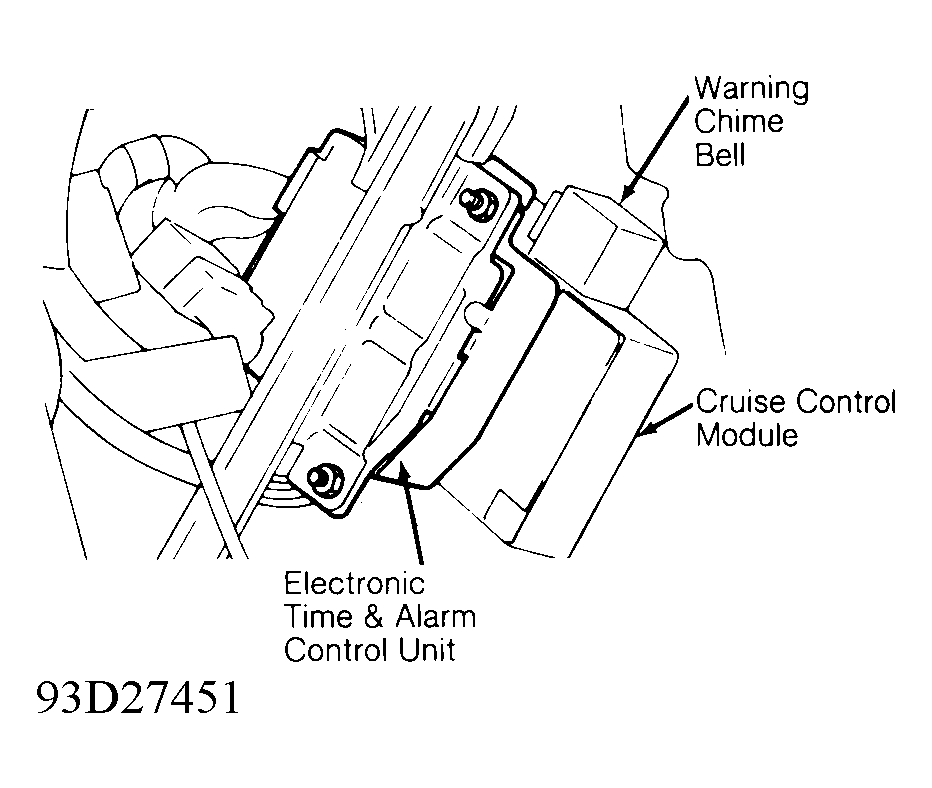

| Electronic Time & Alarm Control Unit | ||
| View of Left Side of Dash | Under left side of dash. See Figure . | |
| View of Control Units & Relays | Under left side of dash. See Figure . | |
| Power Door Lock Control Unit | Under left side of dash. | |

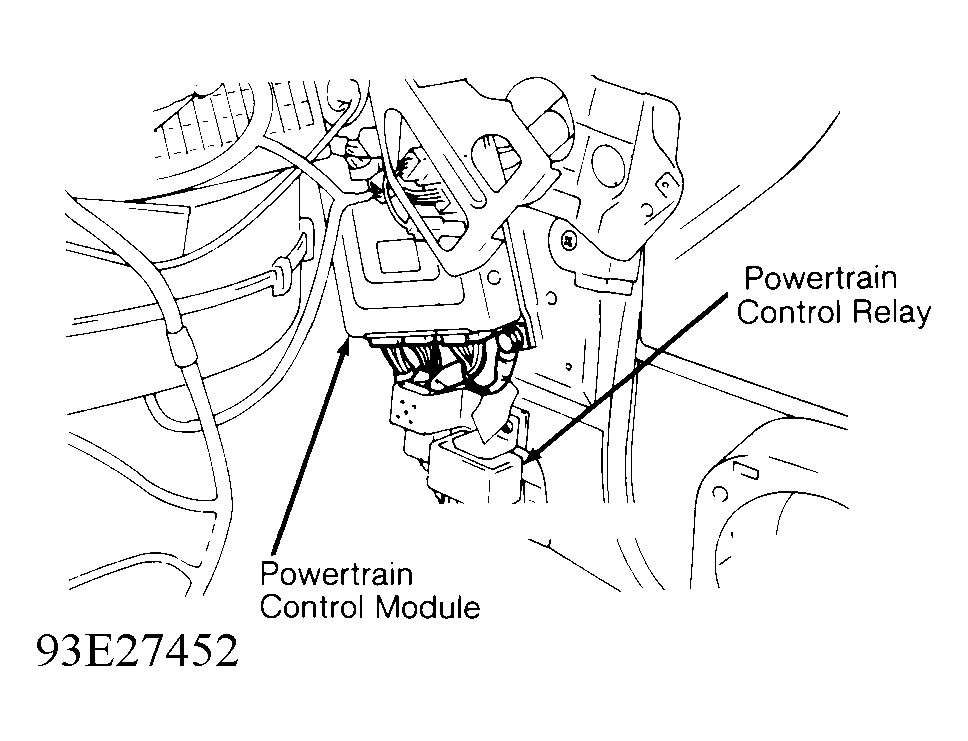

| Powertrain Control Module | Under right side of dash, behind kick panel. See Figure . | |
| Seat Belt Control Units | On each side of vehicle, on door "B" pillar. | |
