Overhaul - A4AF1: Identification

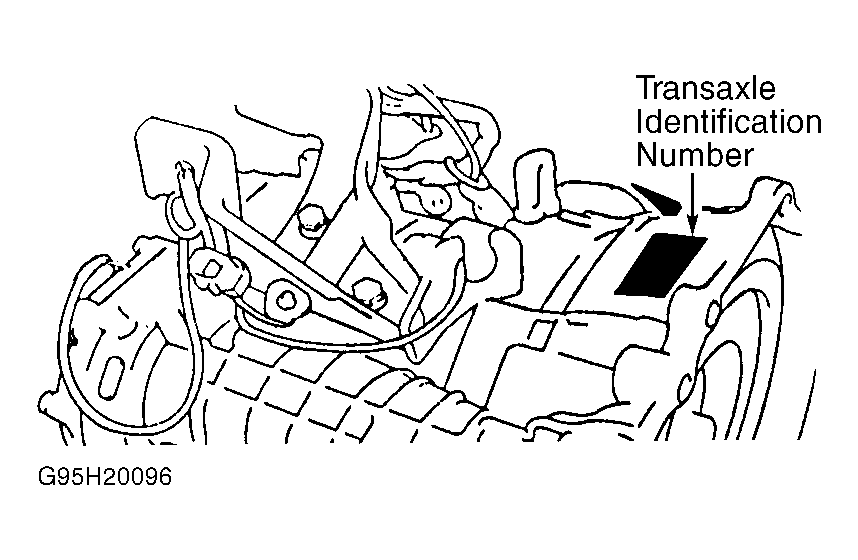

Transaxle identification number is stamped on transaxle housing. See Fig 1 . First digit, letter "G", indicates transaxle is a model A4AF1. Second digit indicates model year, as letter "P" indicates 1993 models and letter "R" indicates 1994 models. Third digit, letter "T" indicates final gear ratio of 4.029. Fourth digit letter "A" indicates transaxle vehicle application. Fifth digit letter "D" indicates transaxle is damper spring type torque converter. Remaining digits are the transaxle serial number. Transaxle model and serial number may be required when ordering replacement components.
