Road Test
- Before road testing vehicle, ensure transaxle fluid level, fluid condition and shift cable adjustments have been checked and corrected (as necessary).
- Road test vehicle and check for abnormal noise and clutch slippage. Specified clutch and brake are applied in designated gear. See clutch & brake application table.

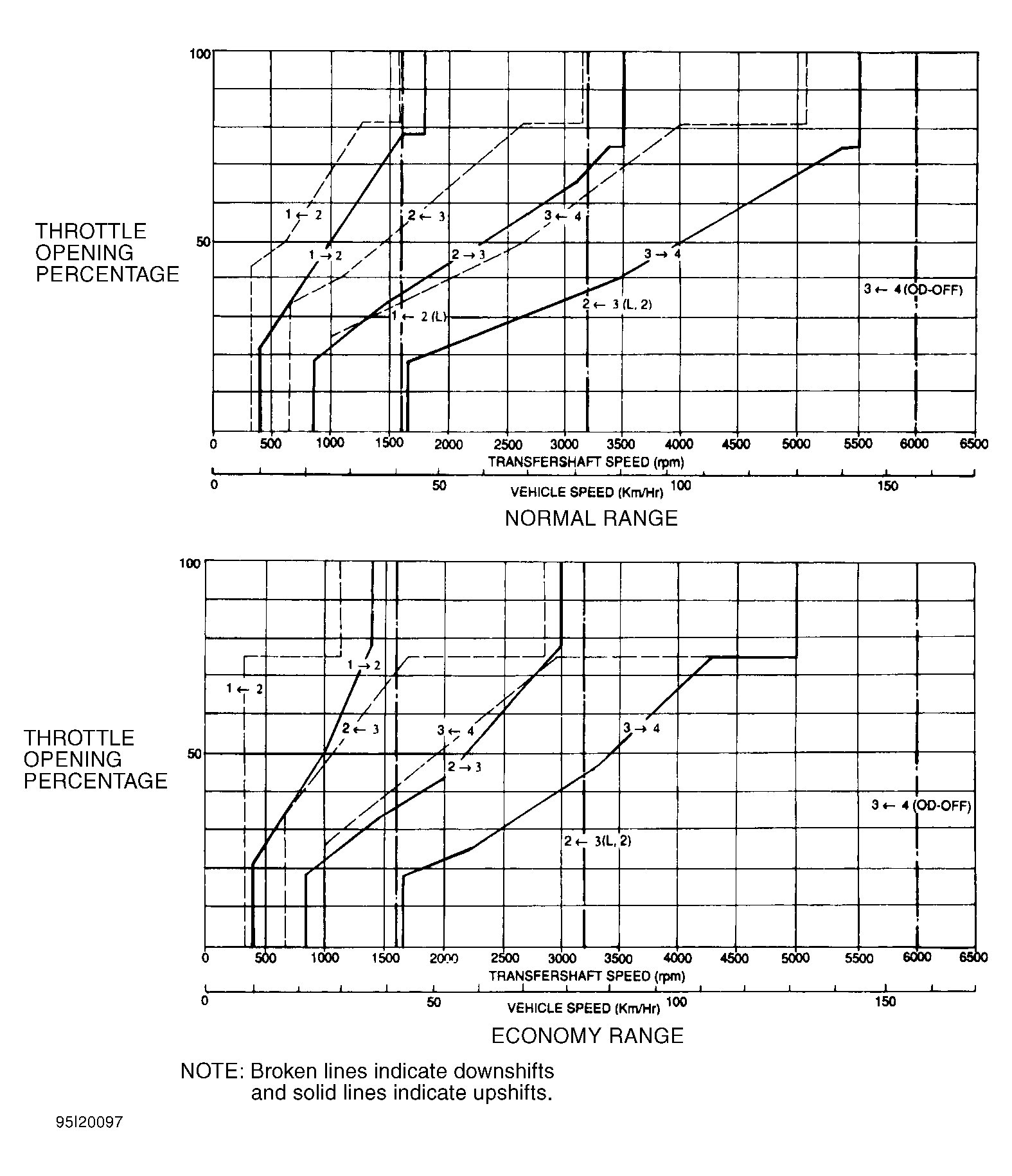

- Ensure upshift and downshift speeds are correct in relation to throttle opening, vehicle speed and position of range switch and overdrive switch. See Fig 1
. Range switch is located on center console, near passenger's side of shift lever. Overdrive switch is mounted on driver's side of shift lever.
- Various test procedures given can be used to detect any slipping component and confirm proper operation of good components. Malfunction may be caused by leaking hydraulic circuits or sticking valves.
- More testing is needed if actual cause of malfunction cannot be easily determined. Unless an obvious malfunction exists, DO NOT
disassemble transaxle until hydraulic pressure tests have been performed.
CLUTCH & BRAKE APPLICATION
| Shift Lever Position |
Elements In Use |
| "D" (Drive) |
| 1st Gear |
Overrunning Clutch & Rear Clutch |
| 2nd Gear |
Kickdown Brake & Rear Clutch |
| 3rd Gear |
End Clutch, Front Clutch & Rear Clutch |
| 4th Gear |
End Clutch & Kickdown Brake |
| "2" (2nd Gear) |
| 1st Gear |
Overrunning Clutch & Rear Clutch |
| 2nd Gear |
Kickdown Brake & Rear Clutch |
| "L" (Low) |
| 1st Gear |
Low-Reverse Brake & Rear Clutch |
| "R" (Reverse) |
Front Clutch & Low-Reverse Brake |
| "N" Or "P" (Neutral Or Park) |
All Clutches & Brakes Released Or Ineffective |
Courtesy of HYUNDAI MOTOR CO.
