Maintenance Information
›
Service Point Locations
Service Point Locations
Fig 1: Service Point Locations (2.4L 4-Cylinder Engine)
Courtesy of HYUNDAI MOTOR CO.

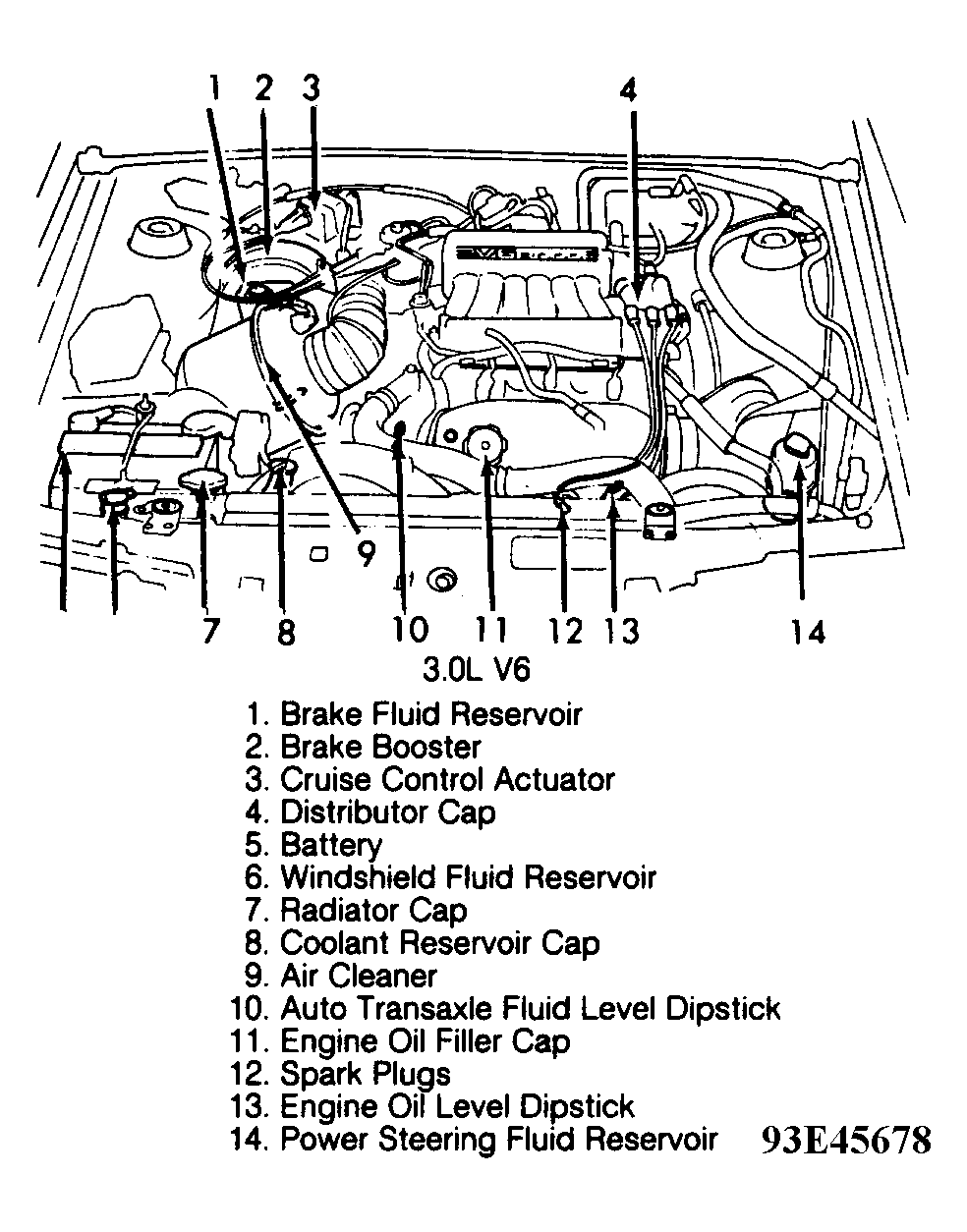

Fig 2: Service Point Locations (3.0L V6 Engine)
Courtesy of HYUNDAI MOTOR CO.

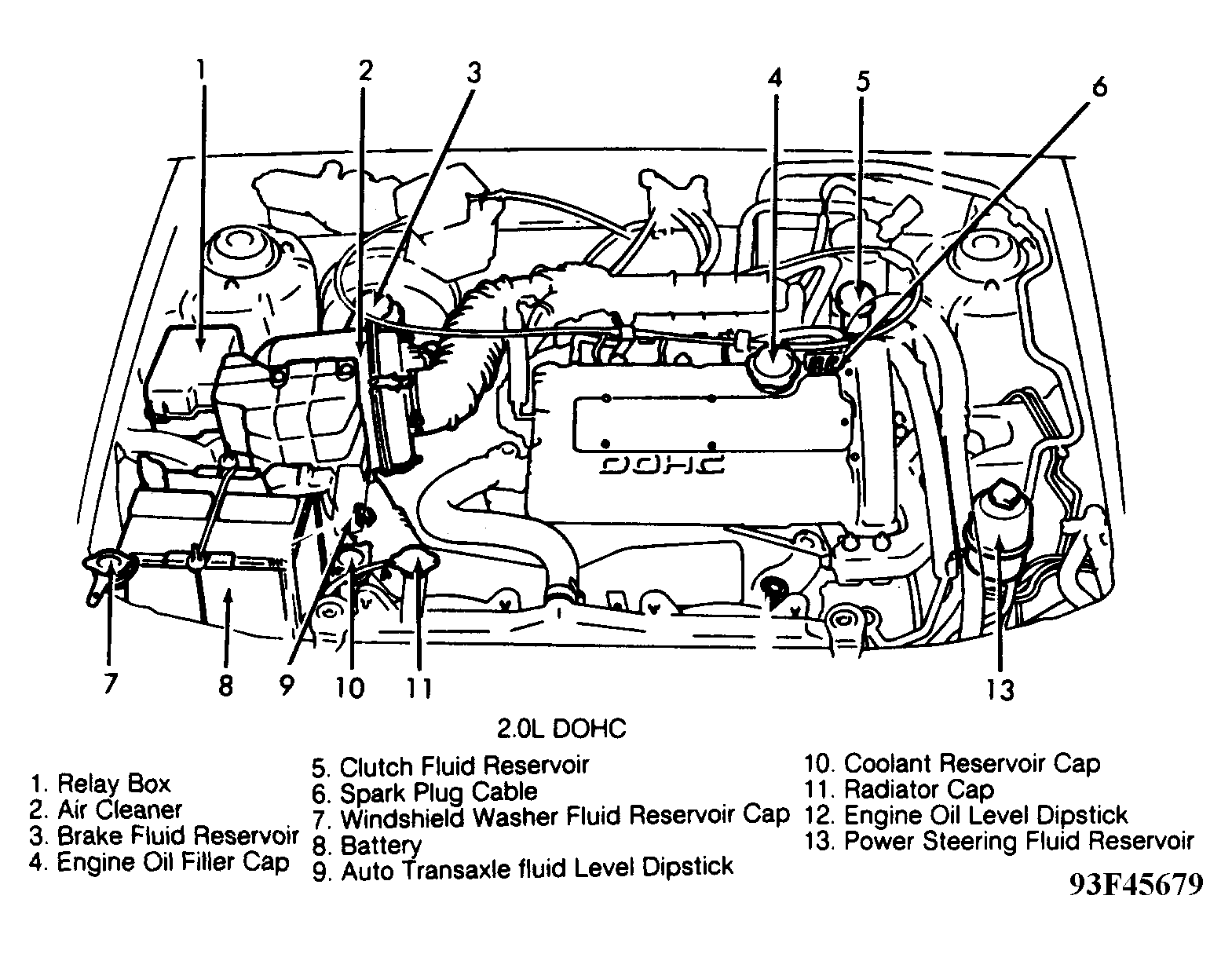

Fig 3: Service Point Locations (2.0L DOHC Engine)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
