Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash (2.0L)

Fig 2: Dash (3.0L)

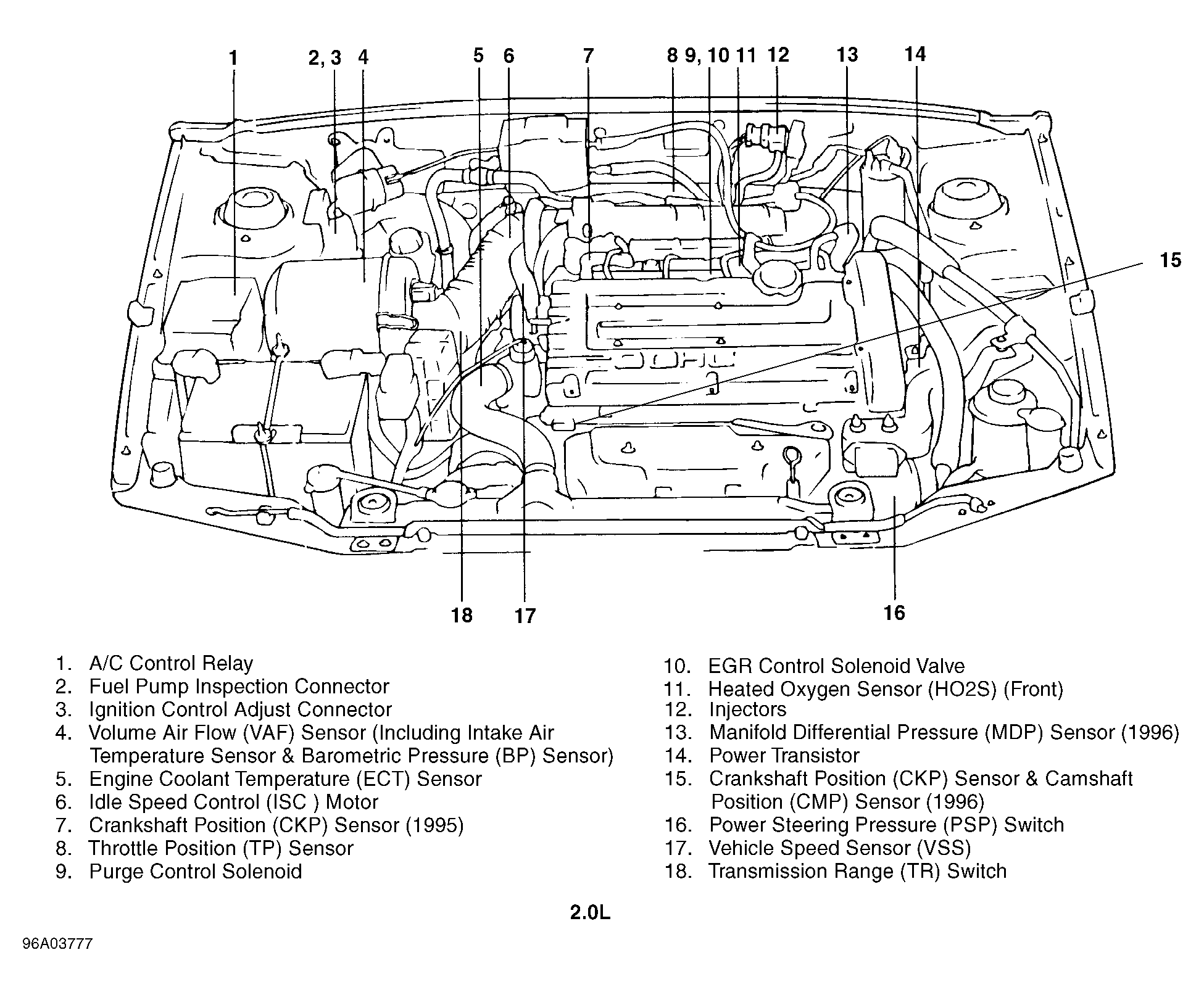

Fig 3: Engine Compartment (2.0L)

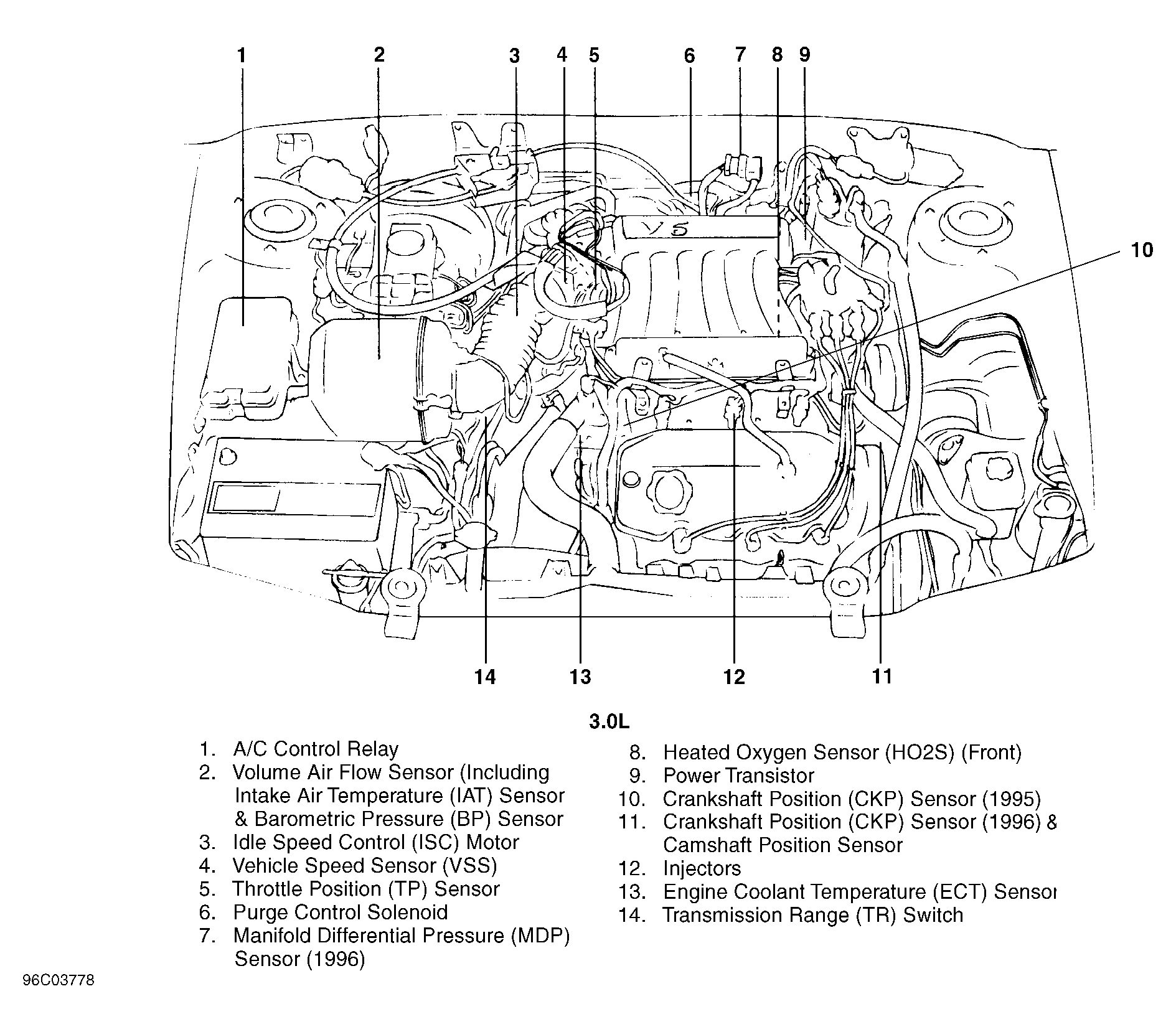

Fig 4: Engine Compartment (3.0L)
