Component Locations

Emission-related components are shown in illustrations. See Fig 1 .

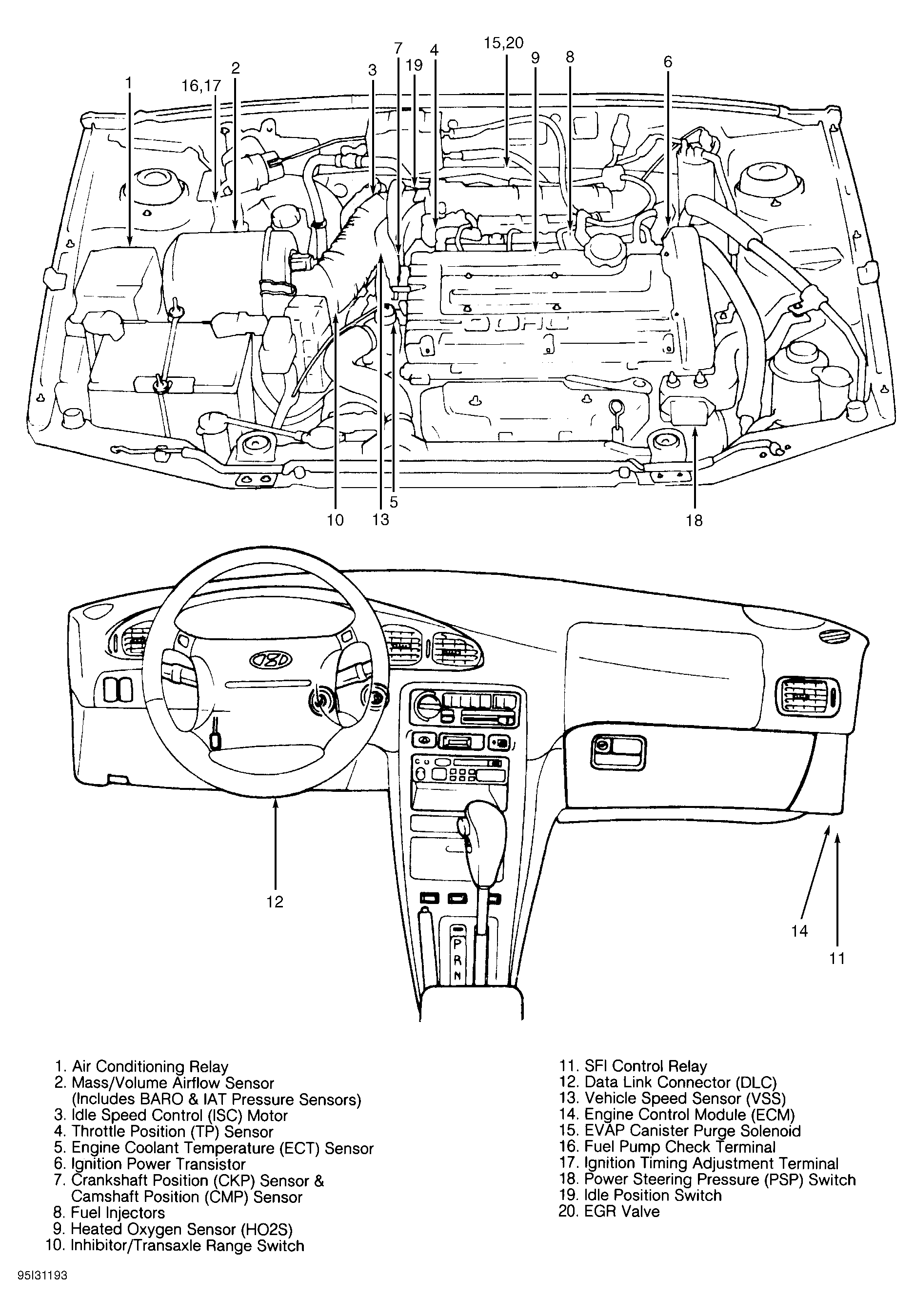

Fig 1: Identifying Emission-Related Components (2.0L)
G95I31193Courtesy of HYUNDAI MOTOR CO.
