Component Testing: Actuator

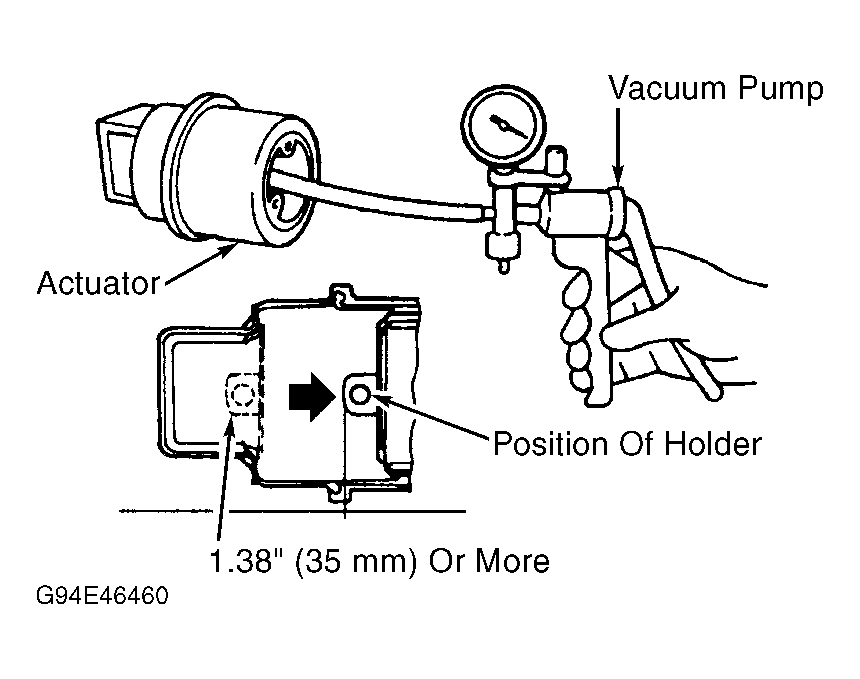

Remove actuator. Using hand-held vacuum pump, apply vacuum to actuator. SeeFig 1 . Actuator holder should move at least 1.38" (35 mm) and should remain there as long as vacuum is applied. Replace actuator if it does not test as specified.
