Fuse Box

NOTE: Fuse box is located under driver's side of instrument panel. See Fig 1 .

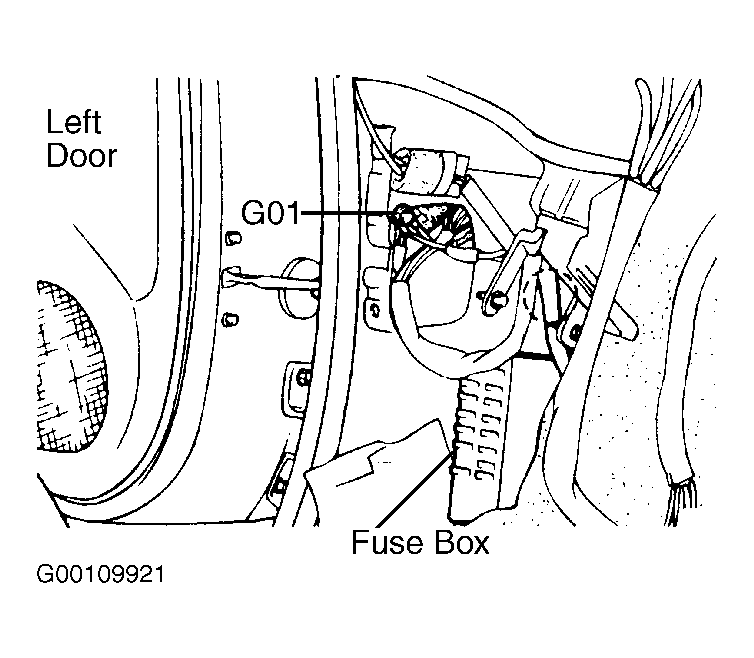

Fig 1: Locating Fuse Box

Courtesy of HYUNDAI MOTOR CO.

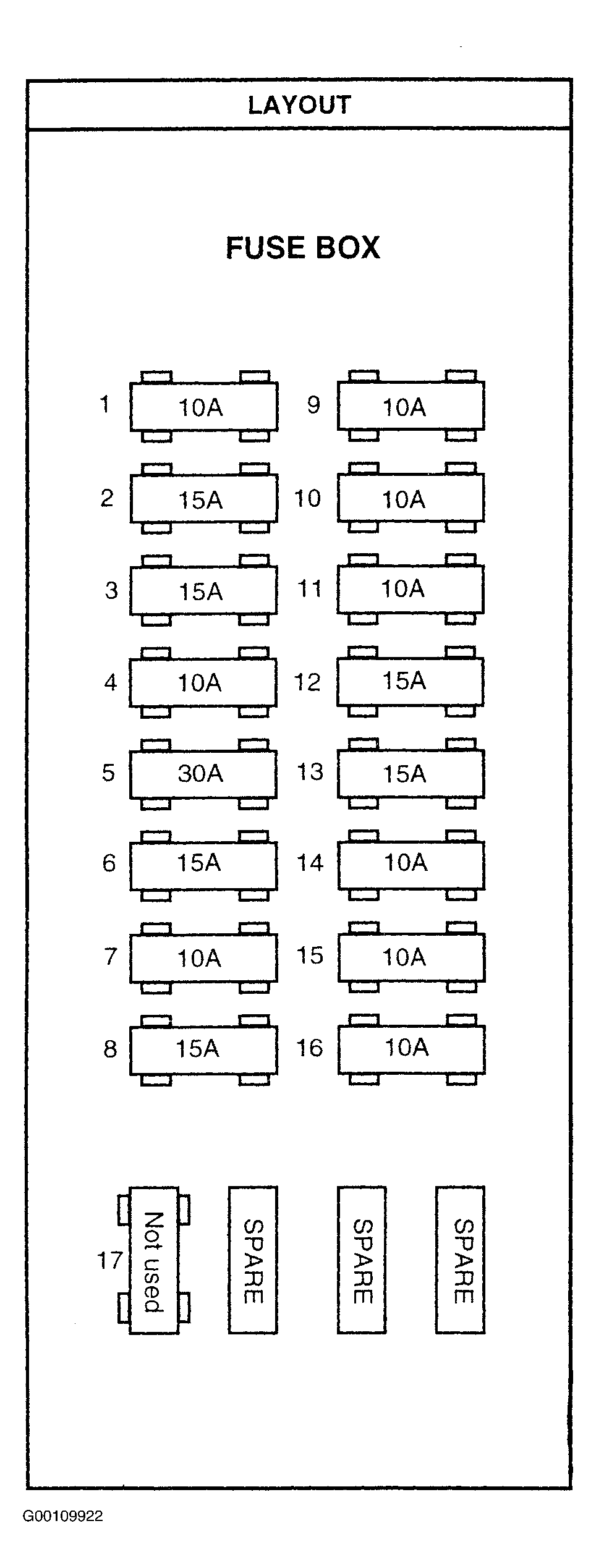

Fig 2: Identifying Fuse Box Components

Courtesy of HYUNDAI MOTOR CO.

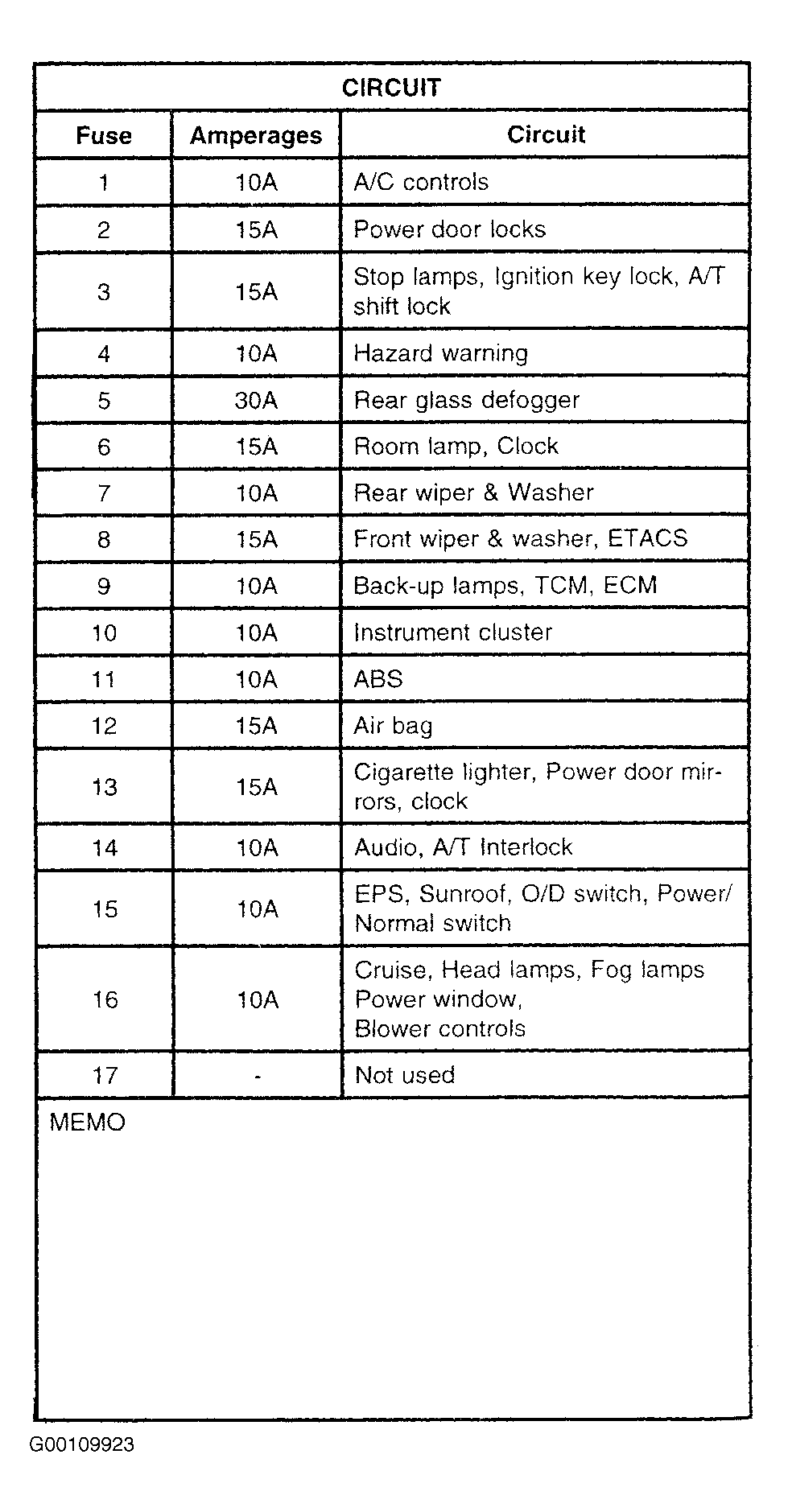

Fig 3: Fuse Box Legend

Courtesy of HYUNDAI MOTOR CO.
