Inspection Chart For Diagnostic Trouble Codes: Notes

Inspect according to the inspection chart that is appropriate for the malfunction code.

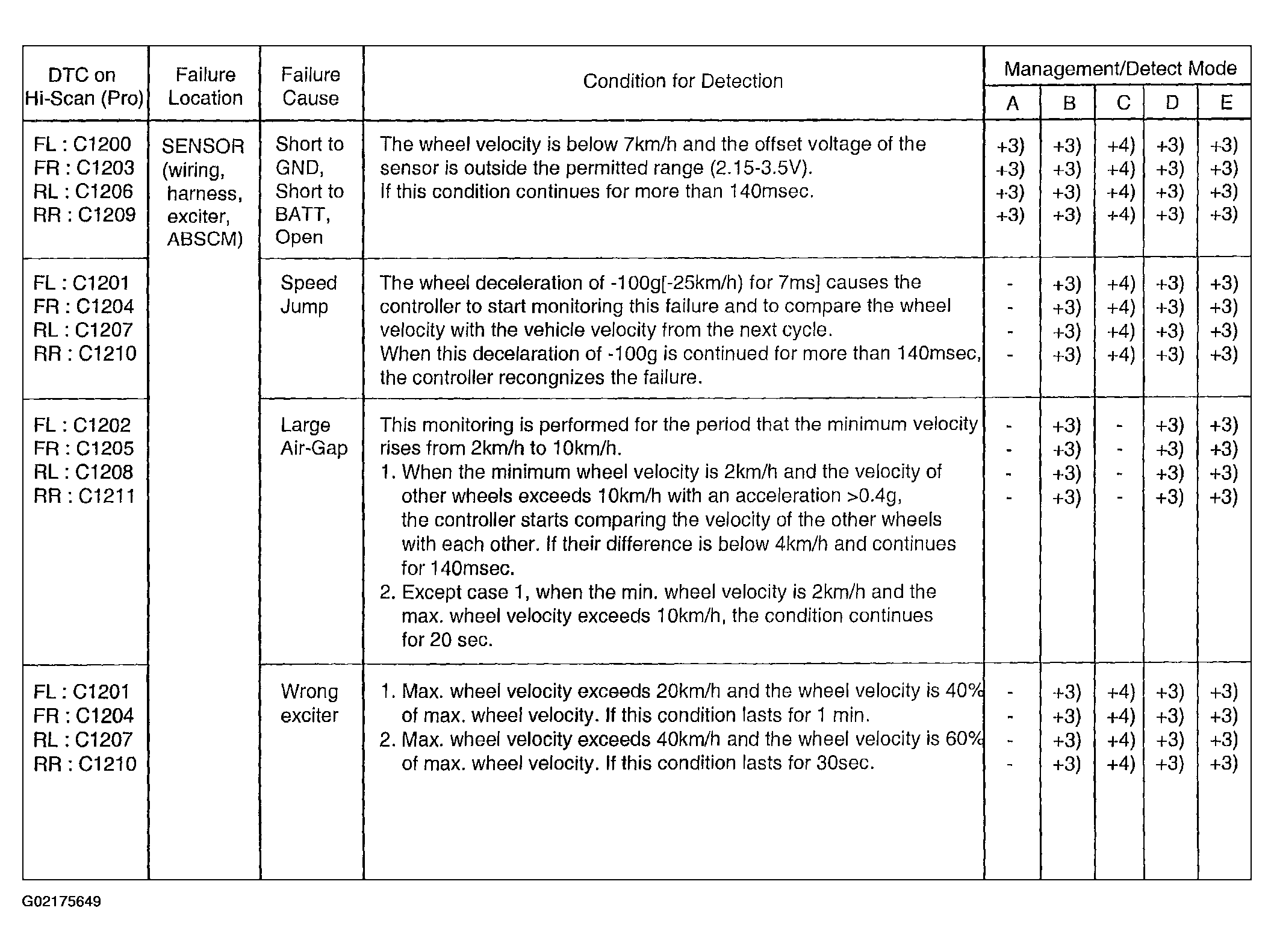

Fig 1: DTC C1200, C1201, C1202, C1203, C1204, C1205, C1206, C1207, C1208, C1209 & C1210 Condition & Detection Table

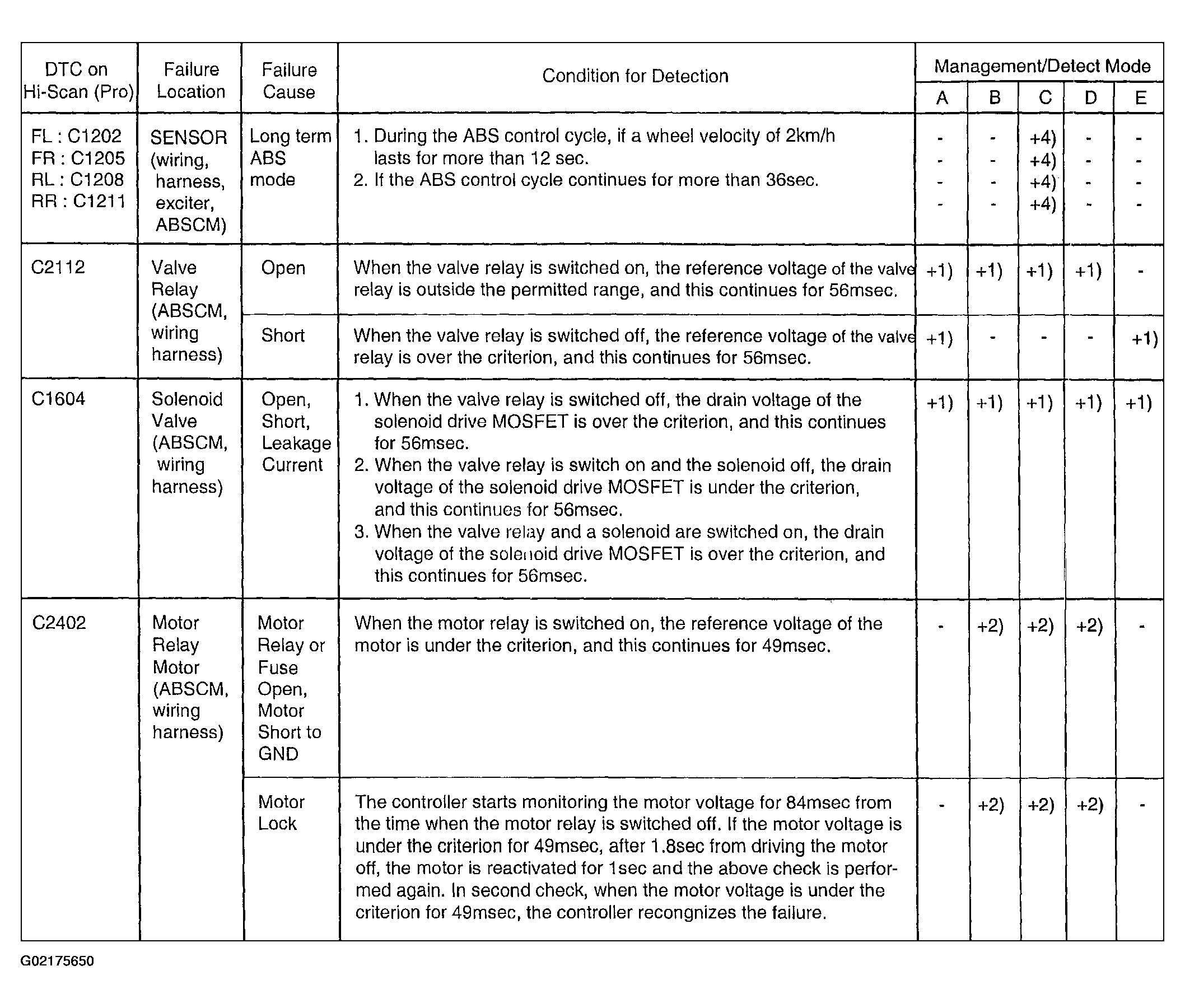

Fig 2: DTC C1202, C1205, C1208, C1211, C1604, C2112 & C2402 Condition & Detection Table

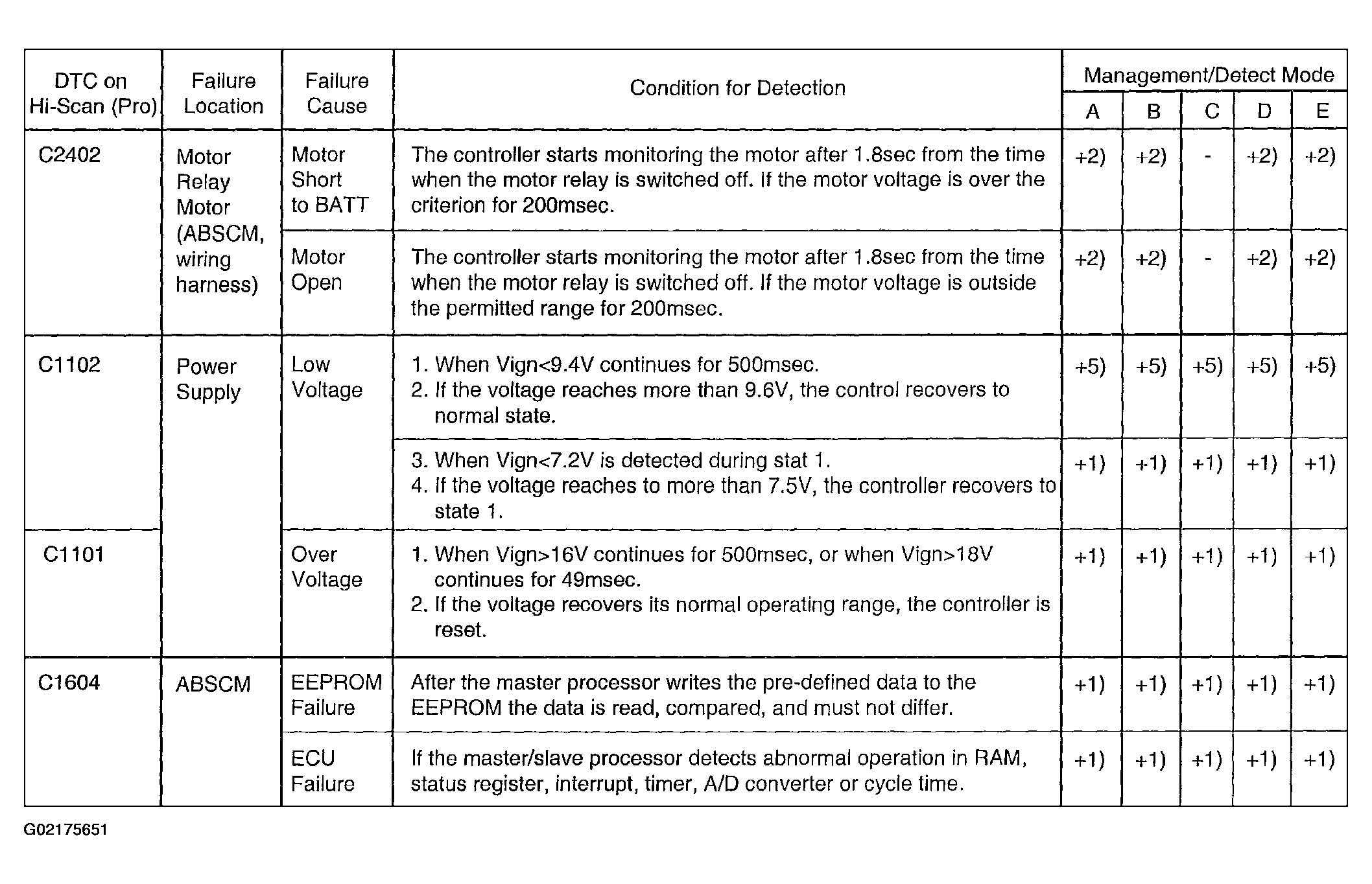

Fig 3: DTC C1101, C1102, C1604 & C2402 Condition & Detection Table
