Manual Transaxle Shift Control: Removal
- Remove the console assembly. Refer to CONSOLE.
- Remove the cotter pins and clips (shift lever side).
- Remove the shift lever assembly.
- Remove the retainer and bolts.

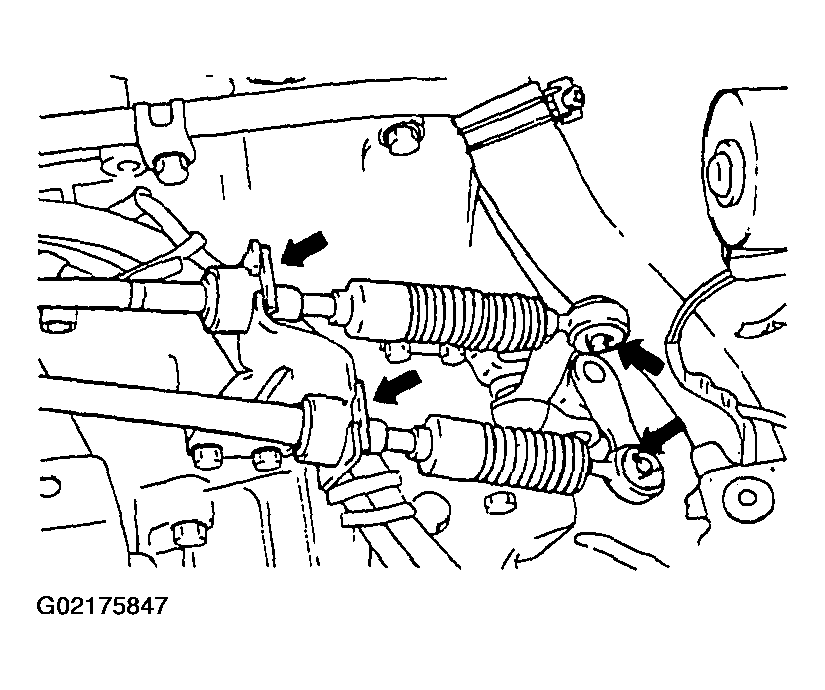

- Remove the cotter pins and clips (transaxle side).
- Remove the shift cable and select cable.
