Automatic Transaxle Hydraulic Circuit: Fourth

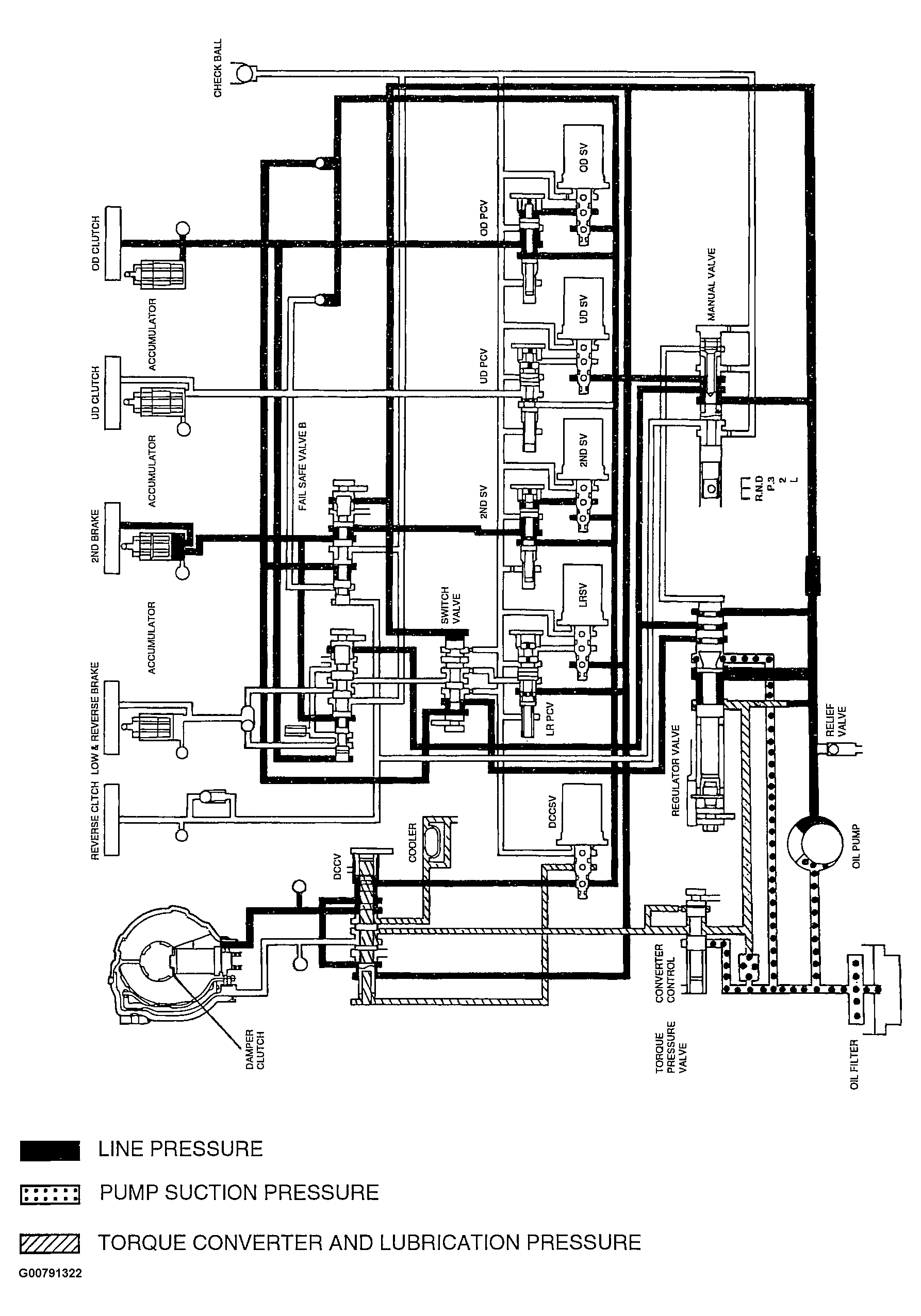

Fig 1: Fourth Gear Hydraulic Circuit
G00791322Courtesy of HYUNDAI MOTOR CO.
