Automatic Transaxle Hydraulic Circuit: First

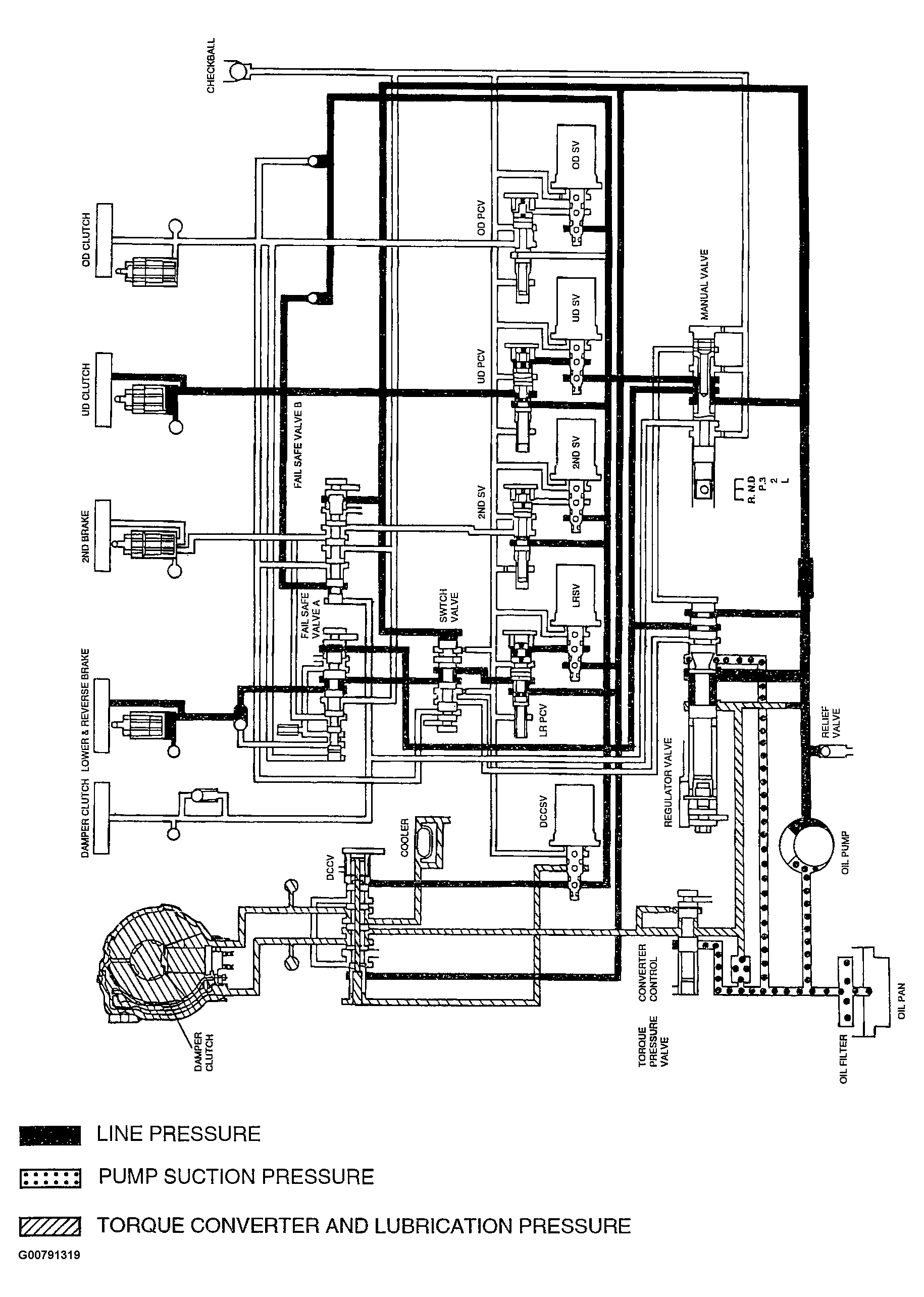

Fig 1: First Gear Hydraulic Circuit
G00791319Courtesy of HYUNDAI MOTOR CO.
